43

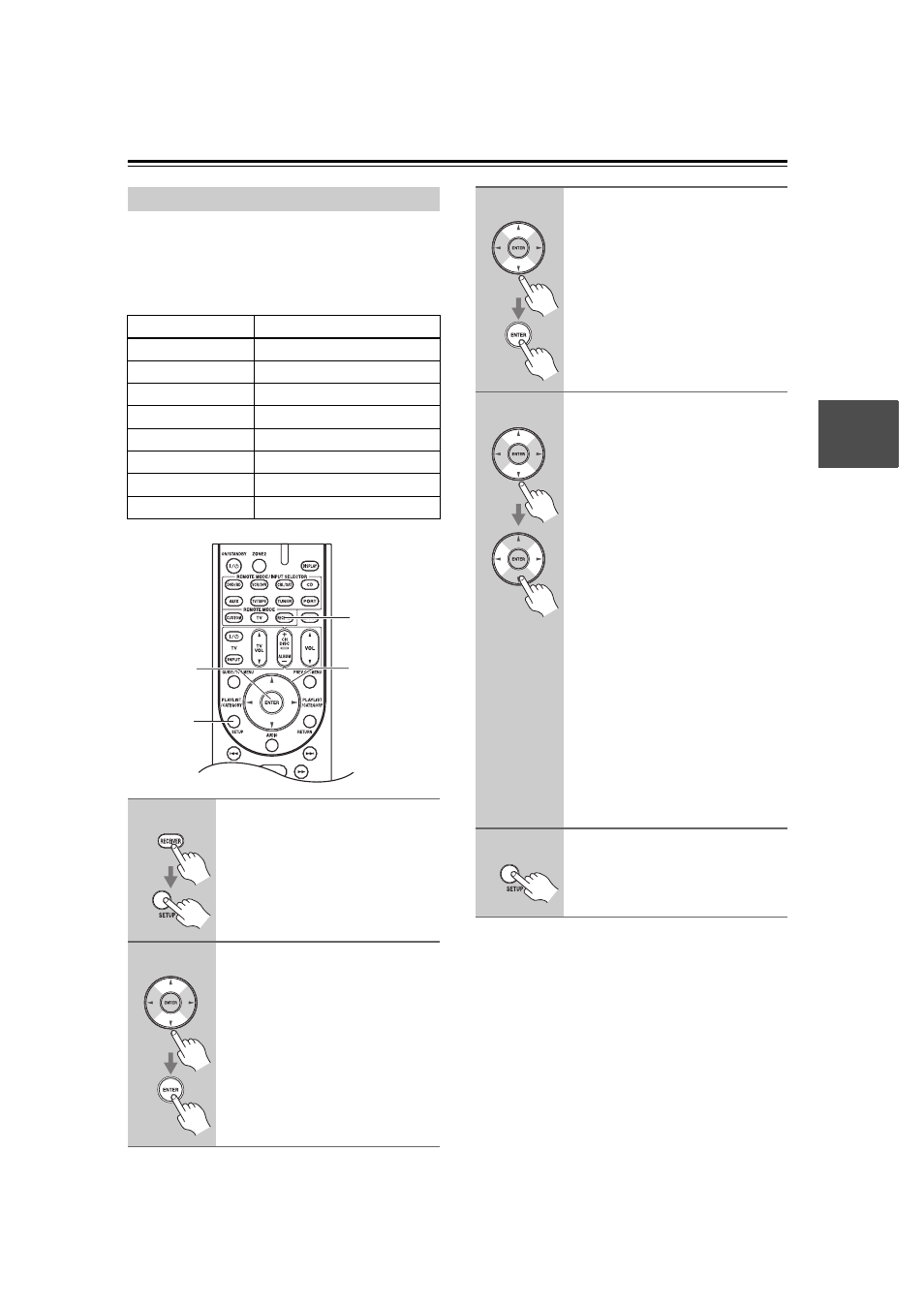

First Time Setup
—Continued
If you connect a component to a digital audio input, you
must assign that input to an input selector. For example,
if you connect your CD player to OPTICAL IN 1, you
must assign OPTICAL IN 1 to the CD input selector.
These are the default assignments.
Notes:
• When an HDMI IN is assigned to an input selector in
“HDMI Input Setup” on page 41, this input
assignment is automatically set to the same HDMI IN.
And in addition to the usual inputs (e.g., COAX1,
COAX2, etc.), you can also select HDMI inputs.
• If you connect an input component (such as UP-A1
series Dock that seated iPod) to the UNIVERSAL
PORT jack, you cannot assign any input to PORT
selector.
• This procedure can also be performed on the AV
receiver by using its [SETUP] button, arrow buttons,
and [ENTER] button.
Digital Input Setup
Input selector Default assignment
DVD/BD COAX1
VCR/DVR - - - - -
CBL/SAT COAX2
AUX - - - - -
TV/TAPE OPT1
TUNER - - - - - (Fixed)
CD OPT2
PORT - - - - -
1 Press the [RECEIVER] button,
followed by the [SETUP] button.
2 Use the Up and Down [ ]/[ ]
buttons to select “1.Input
Assign”, and then press
[ENTER].
SETUP
RECEIVER
ENTER
3 Use the Up and Down [ ]/[ ]
buttons to select “1-3.Digital”,
and then press [ENTER].
4 Use the Up and Down [ ]/[ ]
buttons to select an input
selector, and then use the Left
and Right [
]/[ ] buttons to
select:
COAX1: Select if the component is
connected to DIGITAL IN
COAXIAL 1.
COAX2: Select if the component is
connected to DIGITAL IN
COAXIAL 2.
OPT1: Select if the component is
connected to DIGITAL IN
OPTICAL 1.
OPT2: Select if the component is
connected to DIGITAL IN
OPTICAL 2.
- - - - -: Select if the component is
connected to an analog input.
Note:
Press the [ENTER] button when you do
not use the signal of audio from the
HDMI IN. The “ ” mark is displayed
like “COAX1 ”.
5 Press the [SETUP] button.
Setup closes.
*
*
