Optoma Optoma Pico PK102 User Manual
Page 5

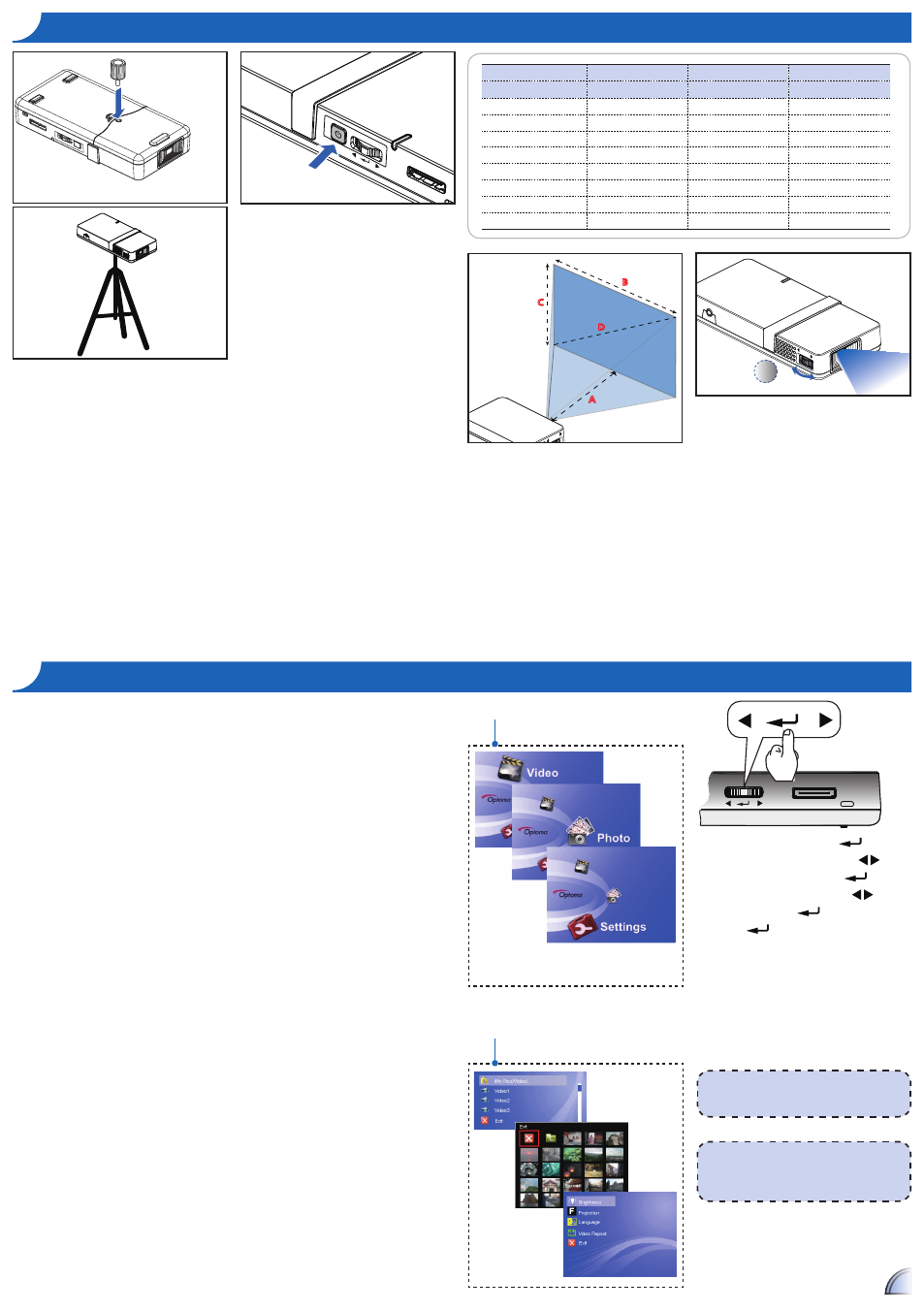

5
VGA
\ USB IN
DC IN
S
WItch
on
1. Press the Power button.
AV IN
FOCUS
u
SIng
a
t
rIpoD
S
tanD
1. Screw the supplied tripod adaptor
into the screw hole on the projector.
2. Attach a standard tripod to the
tripod adaptor.
C
B
A
D
FOC
US
AV IN
Projection Distance (A)
Screen Size - Width (B)
Screen Size - Height (C)
Screen Diagonal (D)
Meter
inch
(mm)
(inch)
(mm)
(inch)
(mm)
(inch)
0.200
7.9
106
4.2
71
2.8
127
5.0
0.500
19.7
265
10.4
176
6.9
318
12.5
0.800
31.5
423
16.7
282
11.1
509
20.0
1.000
39.4
529
20.8
353
13.9
636
25.0
1.500
59.1
794
31.2
529
20.8
954
37.6
2.000
78.7
1058
41.7
705
27.8
1272
50.1
2.500
98.4
1323
52.1
882
34.7
1590
62.6
2.636
103.8
1395
54.9
930
36.6
1676
66.0
a
DjuStIng
the
p
rojecteD
I
mage
AV IN
FOCUS
1
1. Adjust Focus () until image is
clear.
c
onnect
i
nput
s
ource
D
ata
tranSfer
h
oW
to
u
Se
the
M
enu
VGA \ USB IN
Main menu
The first time you use the projector, you can
select your preferred language from quick
menu after the startup screen display.
1. Display the Main Menu. (
)
2. Highlight the desired option (
)
3. Enter the desired option. (
)
4. Highlight the desired item. (
)
5. Select the item. (
)
6. Press (
) and hold to go up one
directory.
7. Select Exit to go to the main menu.
8. OSD disappears in 5 seconds if the
button is not pressed
9. The projector will automatically shut
down if idling in main menu and file
browser for 3 minutes.
Item
Steps 6, 7, 8 applicable for connecting VGA,
Composite, and Component signals
D
oWnloaDIng
o
ptoma
v
IDeo
e
ncoDer
Only Video files that are converted using the Optoma Video Encoder
can be read by PK102.
1. Find the video converter at “Optoma Video Encoder” folder stored
in PK102
2. Download the video converter from PK102
3. Installation
4. After installation, the shortcut of the main program will be found in
the “Start/All programs” menu item.
5. Launch the main program of “Optoma Video Encoder”
6. Find the Optoma Video Encoder user guide in “Optoma Video
Encoder” folder in PK102
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT
PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF
A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-
4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4
VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL
AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL,
INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED
FROM MPEG LA, LLC. SEE
HTTP://WWW.MPEGLA.COM.
