System Hookup
The AV receiver’s positive (+) speaker terminals are
color-coded for easy identification. (The negative (–)
speaker terminals are all black.)
The supplied speaker labels are also color-coded and
you should attach them to the positive (+) side of each
speaker cable in accordance with the above table. All
you need to do then is to match the color of each label
to the corresponding speaker terminal.

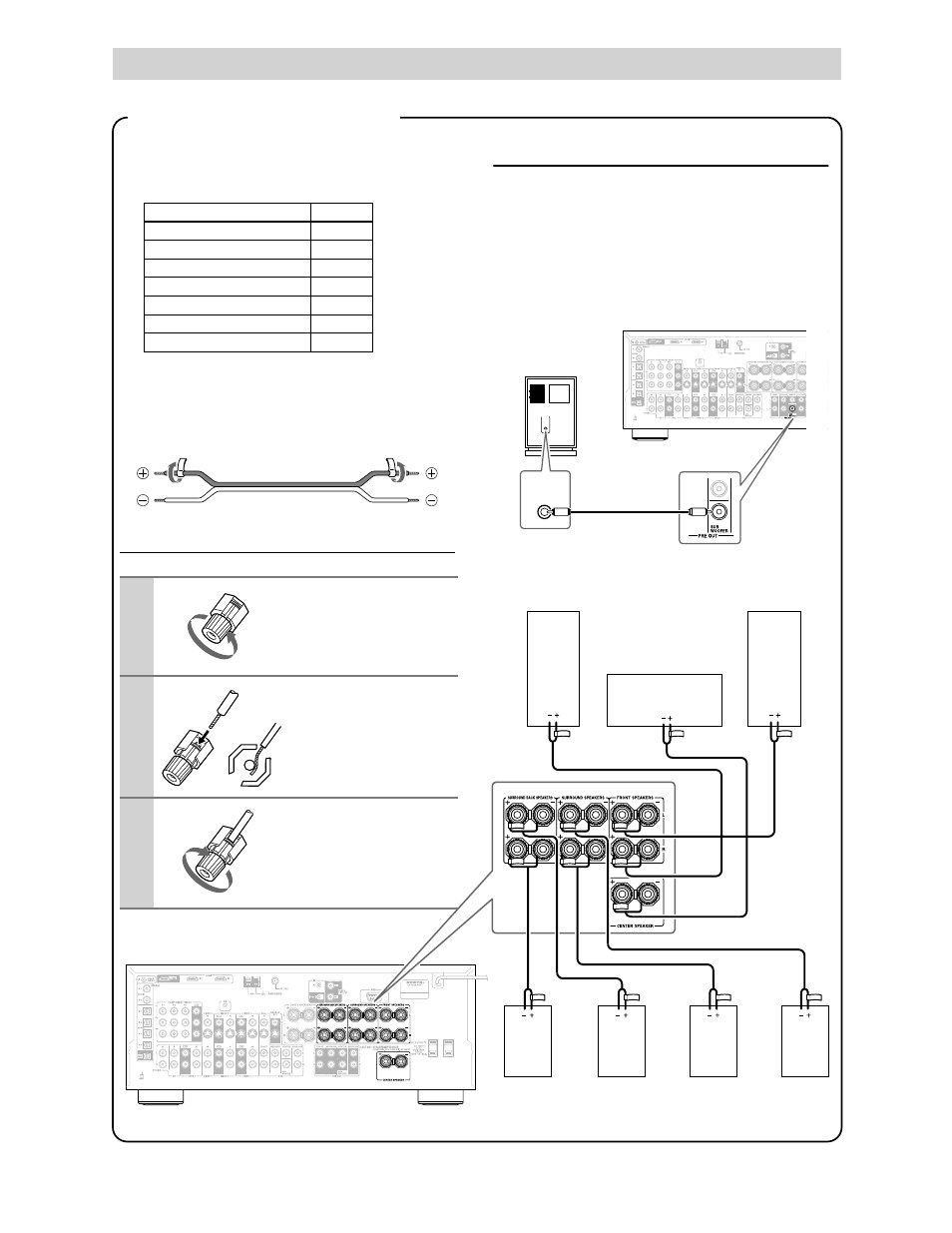

Connecting Speaker Set A
Connecting a Powered Subwoofer
Using a suitable cable, connect the AV receiver’s SUB-
WOOFER PRE OUT to an input on your powered sub-
woofer, as shown. If your subwoofer is unpowered and
you’re using an external amplifier, connect the SUB-
WOOFER PRE OUT to an input on the amp.
Note:
Make sure the plug is pushed in all the way.
Speaker terminal Color
Front left White
Front right Red
Center Green
Surround left Blue
Surround right Gray
Surround back left Brown
Surround back right Tan
1
Unscrew the terminal.
2
Fully insert the bare
wire, making sure
that it’s touching the
center of the terminal.
3
Screw the terminal
tight.
LINE INPUT
LINE INPUT
Powered
subwoofer
1
Connecting Your Speakers
Surround
back left
speaker
Surround
back right
speaker
Front left
speaker
Front right
speaker
Center
speaker
Surround
right
speaker
Surround
left
speaker
2
