21
Connecting the DV-SP402E—Continued
• The remote controller supplied with Onkyo AV
receiver or amplifiers can be used to control the
DV-SP402E.
• The function of the upper and lower connectors are
the same. Connect to either one.
• Connecting an cable only does not make the sys-
tem operational. You must also connect the audio
cables as well.
• For remote control operation, you must make an ana-
log RCA/phono connection between your
DV-SP402E and the other AV component, even if they
are connected digitally.

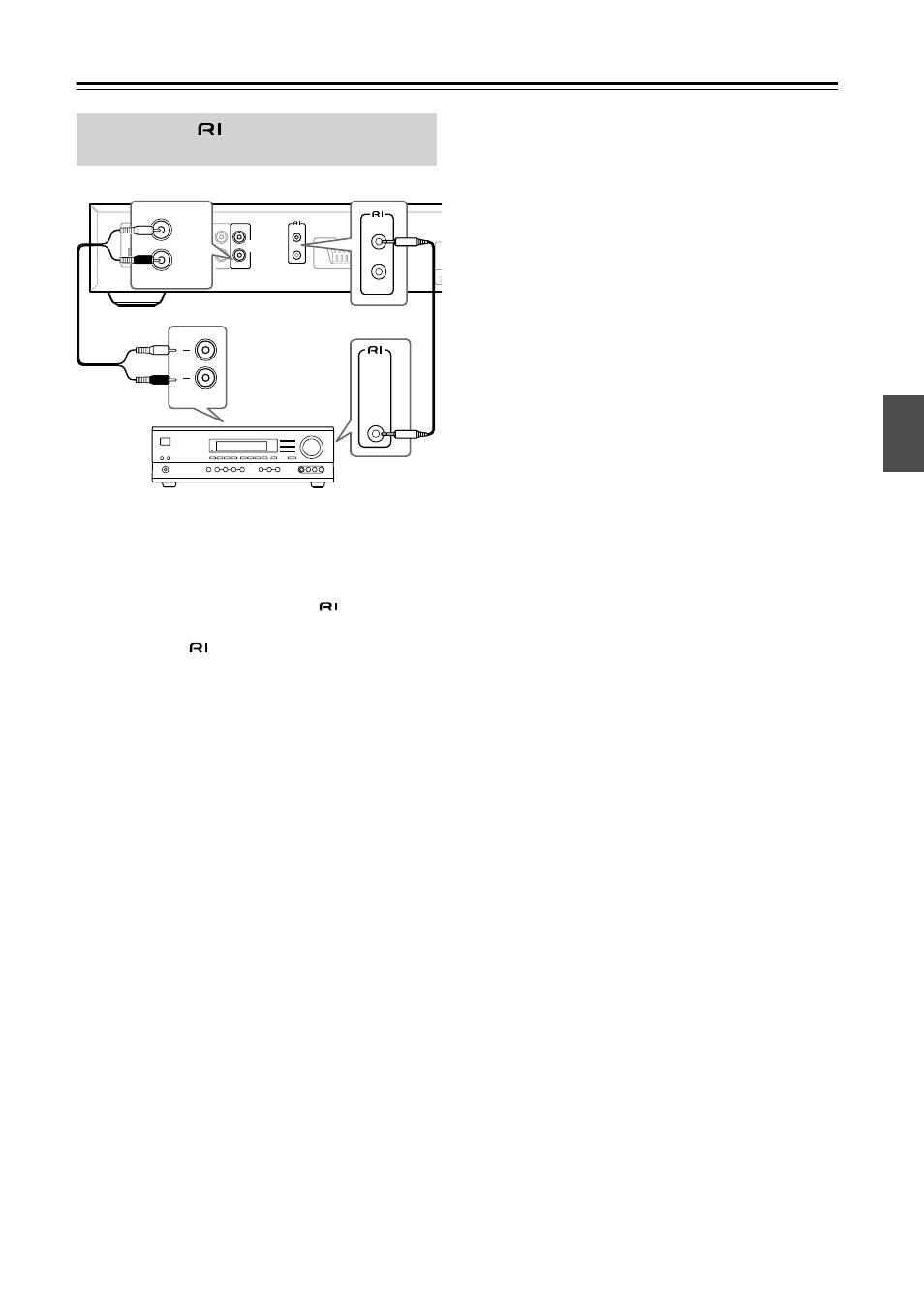

Connecting -compatible
Components
AV CONNECTOR
M
OPTICAL COAXIAL
DIGITAL
AUDIO OUTPUT
VIDEO OUTPUT
S VIDEO VIDEO
ANALOG
AUDIO
OUTPUT
L
R
COMPONENT
Y P B
P R
REMOTE
CONTROL
REMOTE
CONTROL
REMOTE
CONTROL
L
R
IN
VIDEO 2
ANALOG
AUDIO
OUTPUT
L
R
AV receiver
