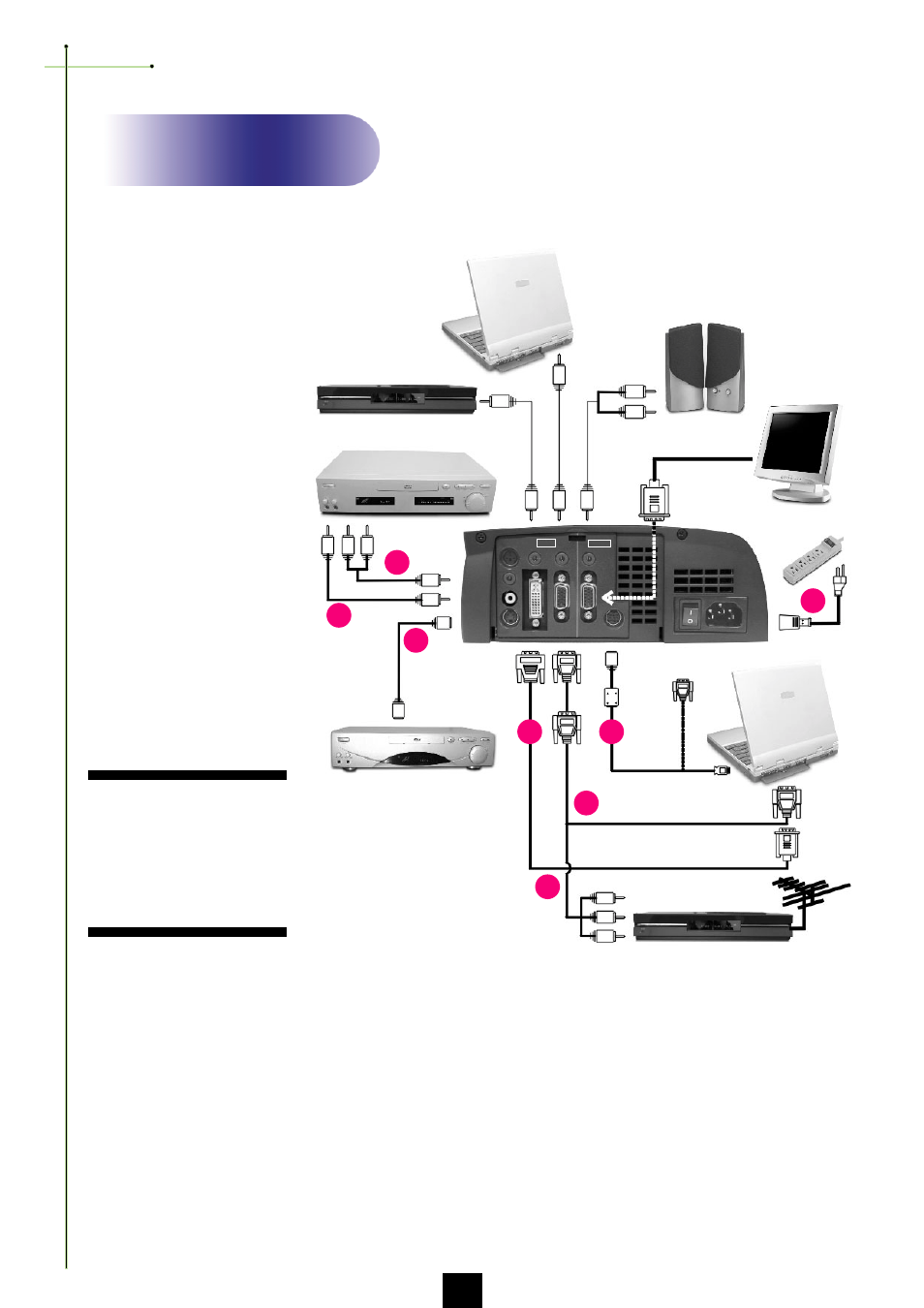

1. Power Cord
2. VGA Cable
3. S-Video Cable
4. Audio Cable Jack/RCA
5. Composite Video Cable
6. DVI to D-Sub Cable
7. Remote Mouse Y Cable
8. D-Sub to RCA Cable for
HDTV/Component (optional)
Connecting the Projector
Installation
v
To ensure the projector works well with your computer, please configure the
display mode of your graphic card to make it less than or equal to 800 X 600
resolution. Make sure timing of the display mode is compatible with the projector.
Refer to the
“Compatibility Modes”
section on page 26.
S-Video Output
Video Output
1
2
3
4
8
6
7
Digital Tuner Output
Digital Tuner Output
Antenna
RS232
AUDIO
VIDEO
S-VIDEO
AUDIO
AUDIO
AUDIO
DVI
COMPUTER
MONITOR
MOUSE
INPUT
OUTPUT
RGB
RS232
USB
5
