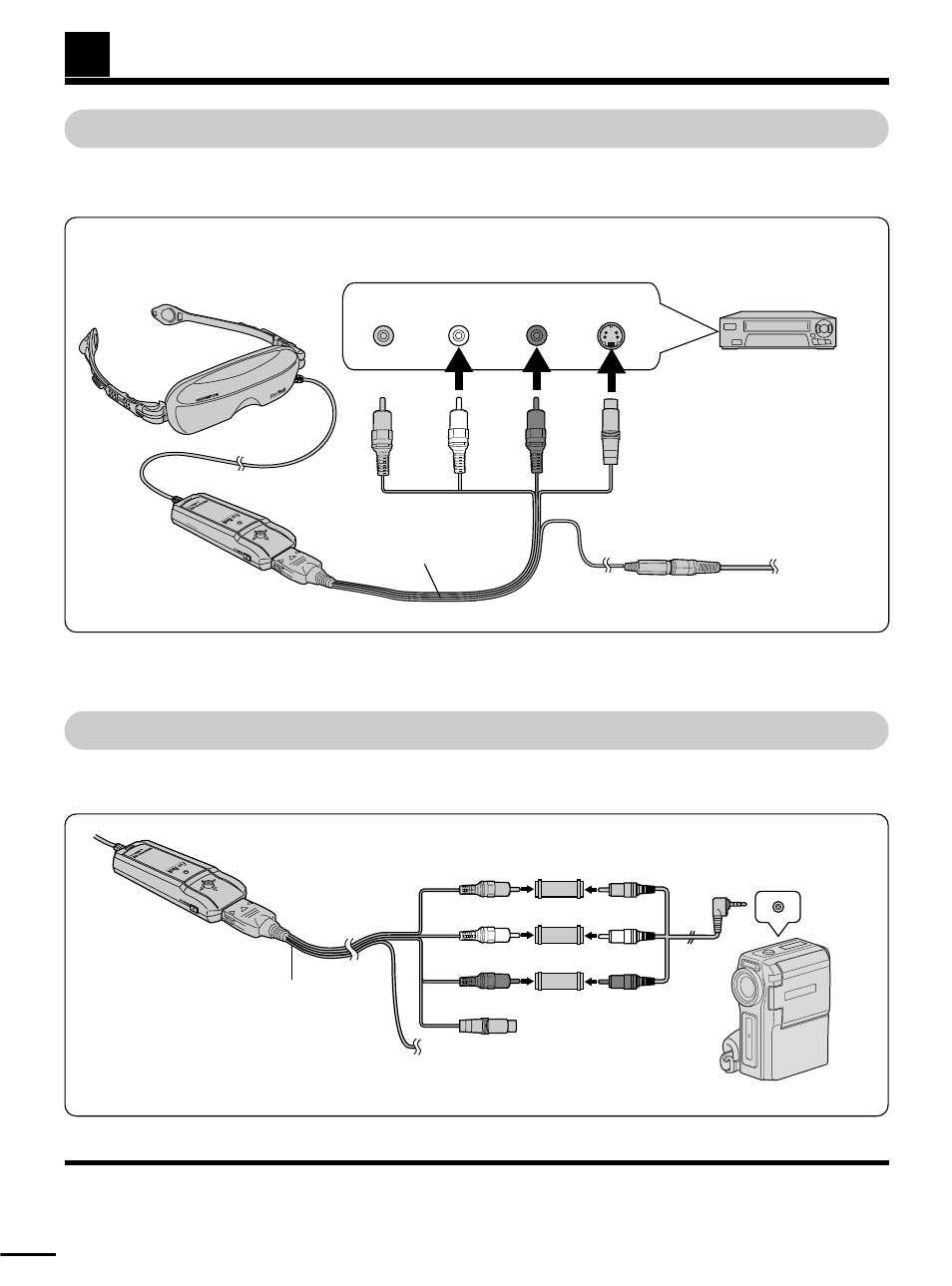

Improving video clarity
If the connected video component has an S-video output jack, clearer video can be viewed by
connecting it through the S-video jack.
Video component such
as a VCR, laserdisc
player, DVD player, etc.
Other connections (connecting to a Mini-Jack)
Note: When the video component has more than one output jack, it can be connected with more than
one Eye-Trek unit.
Video camera, etc.
To audio/video
output jack
If the connected video component uses a mini-jack and cannot be directly connected with the AV
cable, use plug adapters.
AV cable (provided)
●
If the S-video jack and the video jack (yellow) are connected at the same time, the S-video
output has priority.
To AC adapter
To the video component’s
AUDIO/VIDEO OUTPUT jacks
AV cable (provided)
To
S-video
output To
audio
output
left
(white) To
audio
output
right
(red)
White Red S-video
Audio Right
(red)
Audio Left
(white)
Video (yellow)
Plug adapters
(commercially available)
Audio Right
(red)
Audio Left
(white)
Video (yellow)
To AC adapter
