E-13
ENGLISH
Plug the AV cable into the Multi-connector terminal of the control unit.
Plug the AC adapter into the AV cable’s AC adapter connector.
Plug the AV cable’s red, white, and yellow jacks into the output jacks on the video
component.
Plug the AC adapter into a power outlet.
To the video component’s
AUDIO/VIDEO OUTPUT jacks

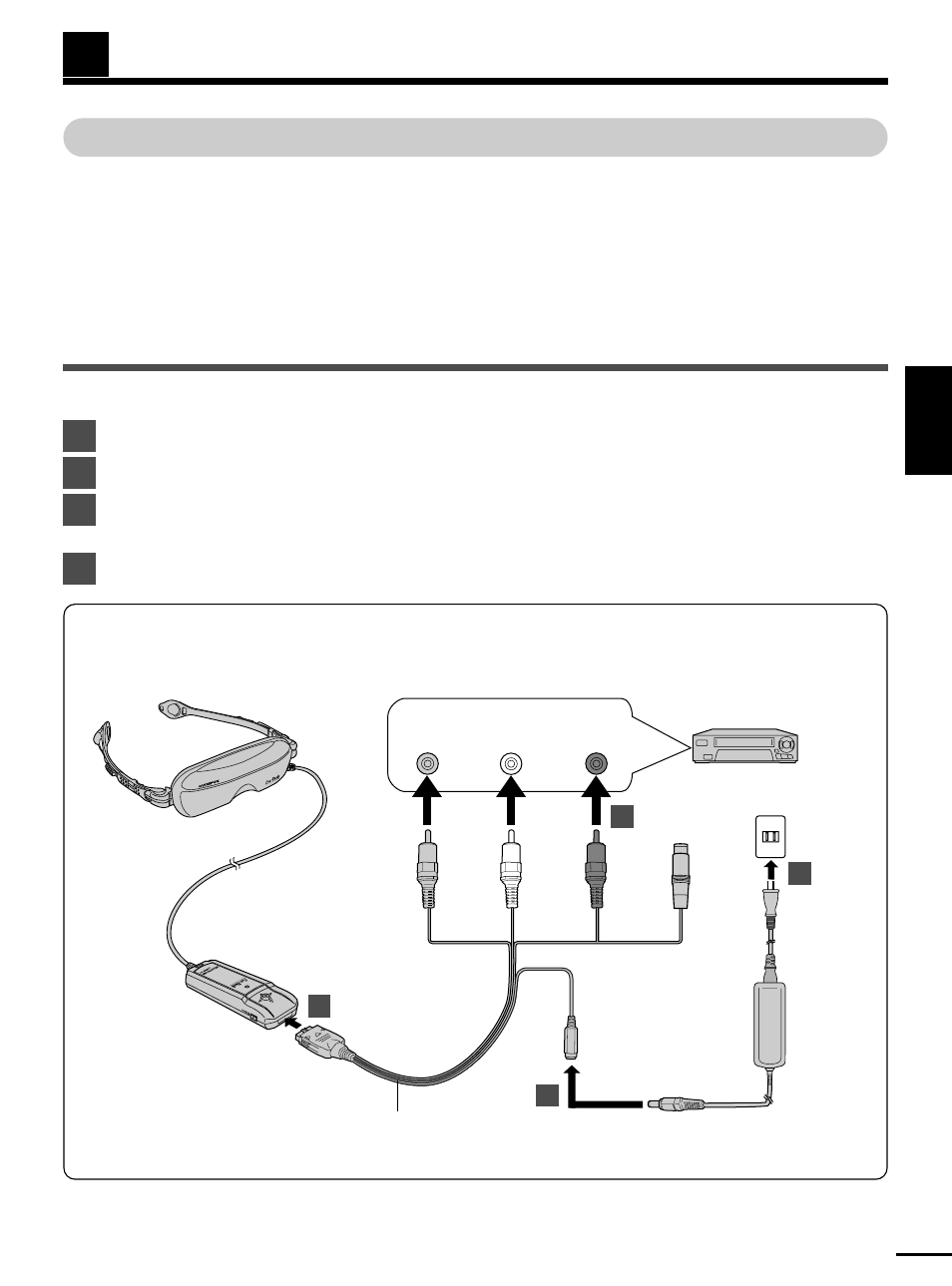

Basic Connections
Notes:
●
Make sure that the Eye-Trek and other video components are turned off before connecting.
●
Make sure that the AV cable’s red, white, and yellow jacks are connected to the output jacks
of the video component. If the AV cable is plugged into the input jacks, no image or sound
will appear.
●
The video component’s output jacks are usually on the rear side of the unit. Jacks on the front side
are usually input jacks. Find out where the output jacks are before connection.
●
Also refer to the connected video component’s instructions.
Display unit
Control unit
To the Multi-connector
terminal
AC adapter
(provided)
Power
outlet
Video component such
as a VCR, laserdisc
player, DVD player, etc.
To AC adapter
connector
To
video
output
(yellow) To
audio
output
left
(white) To
audio
output
right
(red)
Yellow White Red
1
2
3
4
Follow the steps below to connect the Eye-Trek to a video component.
CONNECTIONS
2
1
3
4
AV cable (provided)
