30
Connecting the AV Receiver
—Continued
The ZONE 2 L/R and SURR BACK L/R terminal posts
can be used with front speakers and surround back
speakers respectively, or bridged together to provide
almost double the output power for the front speakers.
• When bridging is used, the AV receiver is able to drive
2 speakers in the main room (2.1 speakers if you’re
using a powered subwoofer).
• For bridging, the positive (+) ZONE 2 L/R and SURR
BACK L/R terminal posts are used, but the negative
(–) ZONE 2 L/R and SURR BACK L/R terminals are
not.
• Once you’ve completed the bridging connections
shown below and turned on the AV receiver, you must
set the “Speaker Type: Front(Speaker B)” setting to
“BTL” to enable bridging (see page 61).
• When front Speakers B are bridged, front Speakers A
must be wired normally.
Notes:
• Use only front speakers with an impedance of 8
ohms or higher for bridging. Failure to do so may
seriously damage the AV receiver.
• When using bridging, make sure that your front speak-
ers can handle the additional power.

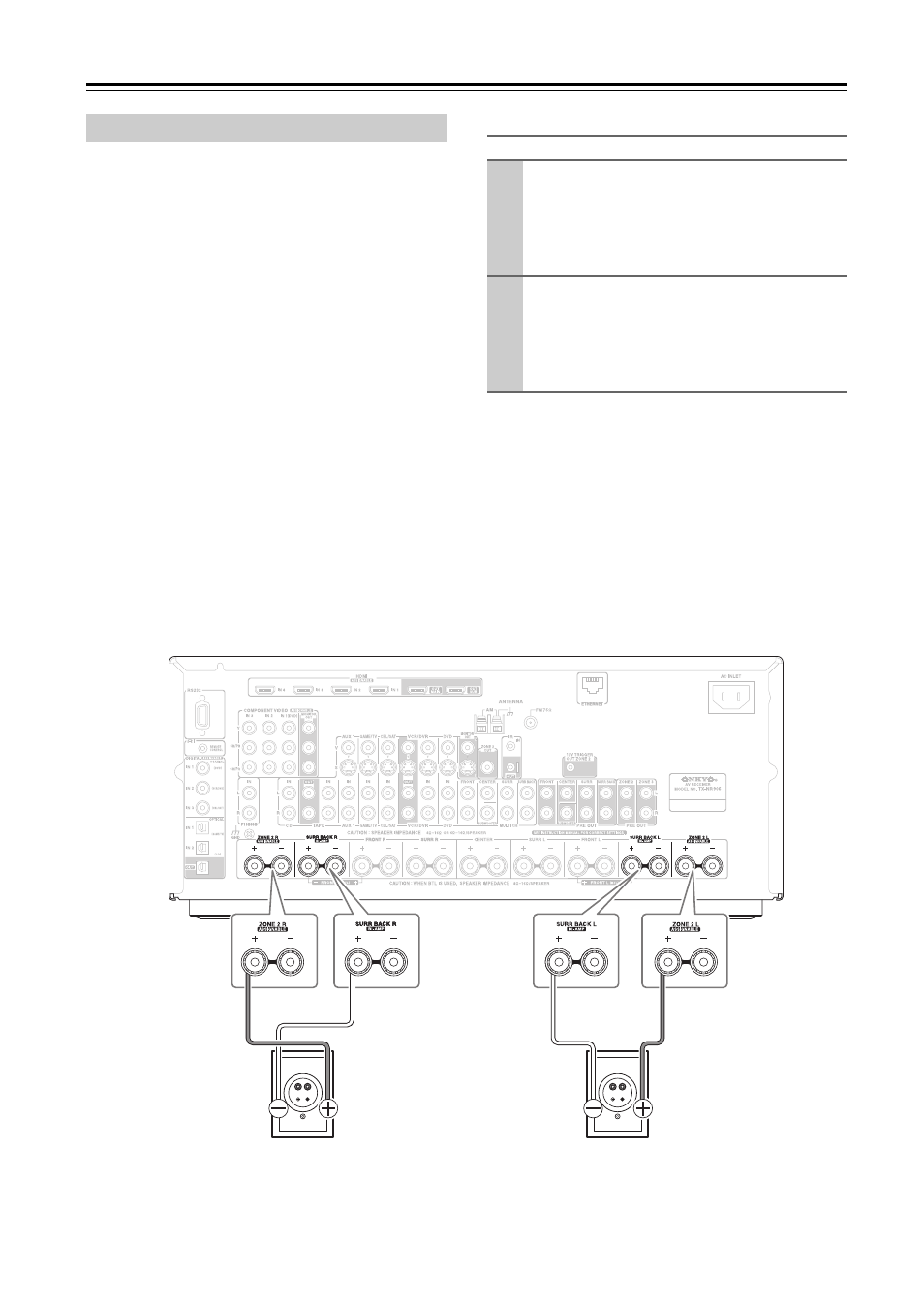

Bridged Speaker Hookup
Bridging Front Speakers B
1 Connect the AV receiver’s ZONE 2 R positive (+)
terminal to the right speaker’s positive (+) ter-
minal. And connect the AV receiver’s SURR
BACK R positive (+) terminal to the right
speaker’s negative terminal.
2 Connect the AV receiver’s ZONE 2 L positive (+)
terminal to the left speaker’s positive (+) terminal.
And connect the AV receiver’s SURR BACK L
positive (+) terminal to the left speaker’s negative
terminal.
Right speaker Left speaker
