8

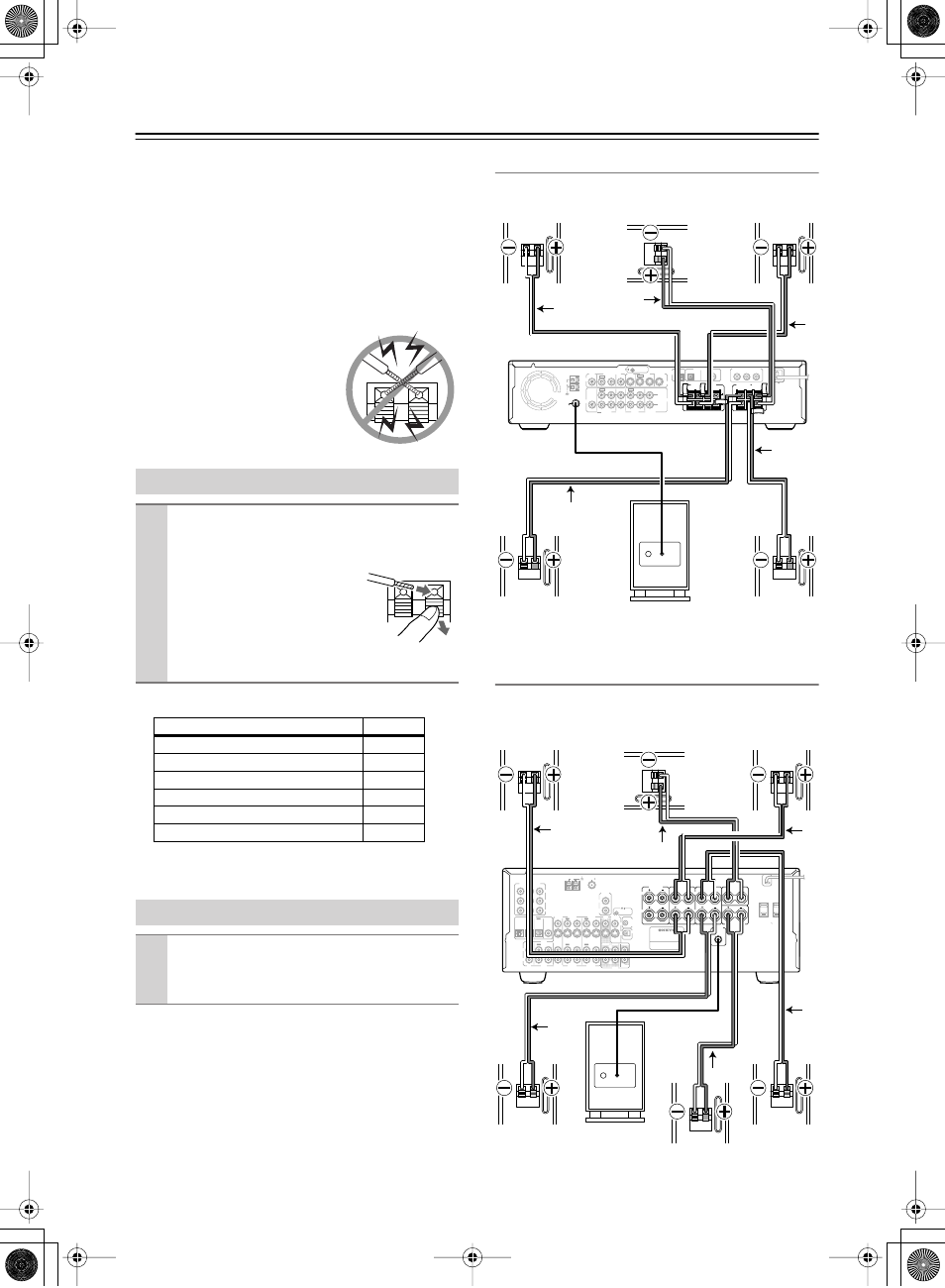

Connecting the Speakers
Read the following before connecting your speakers:
• Turn off your amp before making any connections.
• The nominal impedance of these speakers is 8
Ω
. Use
only an amp that supports this impedance.
• Pay close attention to speaker wiring polarity. Connect
positive (+) terminals to only positive (+) terminals,
and negative (–) terminals to only negative (–) termi-
nals. If the speakers are wired incorrectly, the sound
will be out of phase and will sound unnatural.
• Be careful not to short the posi-
tive and negative wires. Doing so
may damage your amp.
Tip:
HTP-240 & DR-S2.2 Receiver Hookup
SKS-HT240 & 6-channel AV Amp Hookup
Onkyo AV receiver used in this example.
Connecting the Speaker Cables
1 Use the cables to connect each speaker’s
input terminals to the corresponding
speaker output terminals on your amp.
To make a connection, while
pressing the terminal lever,
insert the wire into the hole, and
then release the lever.
Make sure that the terminals are
gripping the bare wires, not the insulation.
Speaker terminal (+) Color
Front left White
Front right Red
Center Green
Surround left Blue
Surround right Gray
Surround back (SKS-HT240 only) Brown
Connecting the Subwoofer
1 Using the supplied RCA cable, connect
the subwoofer’s LINE INPUT to your amp’s
SUBWOOFER PREOUT.
REMOTE
CONTROL
OUT
2 ––VIDEO –– 1 VIDEO 2 VIDEO 1 IN IN IN IN OUT OUT
IN OUT IN IN IN
VIDEO2 CDR/PC VIDEO 1 TAPE MD/HD TV/LINE
MON
OUT MON
OUT
L
R
VIDEO S VIDEO
AUDIO
SUB
WOOFER
PRE OUT
AUDIO FM
75
ANTENNA DIGITAL
OUTPUT
DIGITAL INPUT VIDEO 2 VIDEO 1
OPT OPT COAX
AM
Y PB PR COMPONENT VIDEO OUTPUT
CENTER SPEAKER SURROUND
SPEAKERS
R L R L R B A L FRONT SPEAKERS
LINE
INPUT
Front right
speaker Center
speaker Front left
speaker
Surround
right speaker Powered
subwoofer Surround
left speaker
Red
Green
White
Blue
Gray
INPUT 1 INPUT 2 OUTPUT COMPONENT VIDEO
P R
P B
Y
COAXIAL OPTICAL 1 2
IN IN IN IN FRONT SURR CENTER
SUB WOOFER VIDEO 2 VIDEO 1
VIDEO 2 DVD
DVD TAPE CD
TAPE CD
L
R
L
R
VIDEO 3
VIDEO 1
V 12 V TRIGGER OUT
ZONE 2 VIDEO 3
OPTICAL IN IN IN IN IN IN
IN
OUT OUT
OUT OUT OUT
S IR IN
DIGITAL
CAUTION: SPEAKER IMPEDANCE 6 OHMS MIN. /SPEAKER
FRONT SPEAKERS ZONE 2 SPEAKERS SURROUND SPEAKERS CENTER
SPEAKER
SUBWOOFER
12 V TRIGGER OUT
R
L
R
L
ANTENNA FM 75 AM
OUT
AC OUTLETS
AV RECEIVER MODEL NO. TX-SR 601
SURROUND BACK SPEAKER PRE OUT
MONITOR OUT
REMOTE
CONTROL R
L
ZONE 2 LINE OUT
AC 120 V 60 Hz SWITCHED TOTAL 120W 1A MAX.
LINE
INPUT
Front right
speaker Center
speaker Front left
speaker
Surround
right speaker
Powered
subwoofer
Surround
left speaker
Surround
back speaker
Red Green White
Blue
Brown
Gray
