5

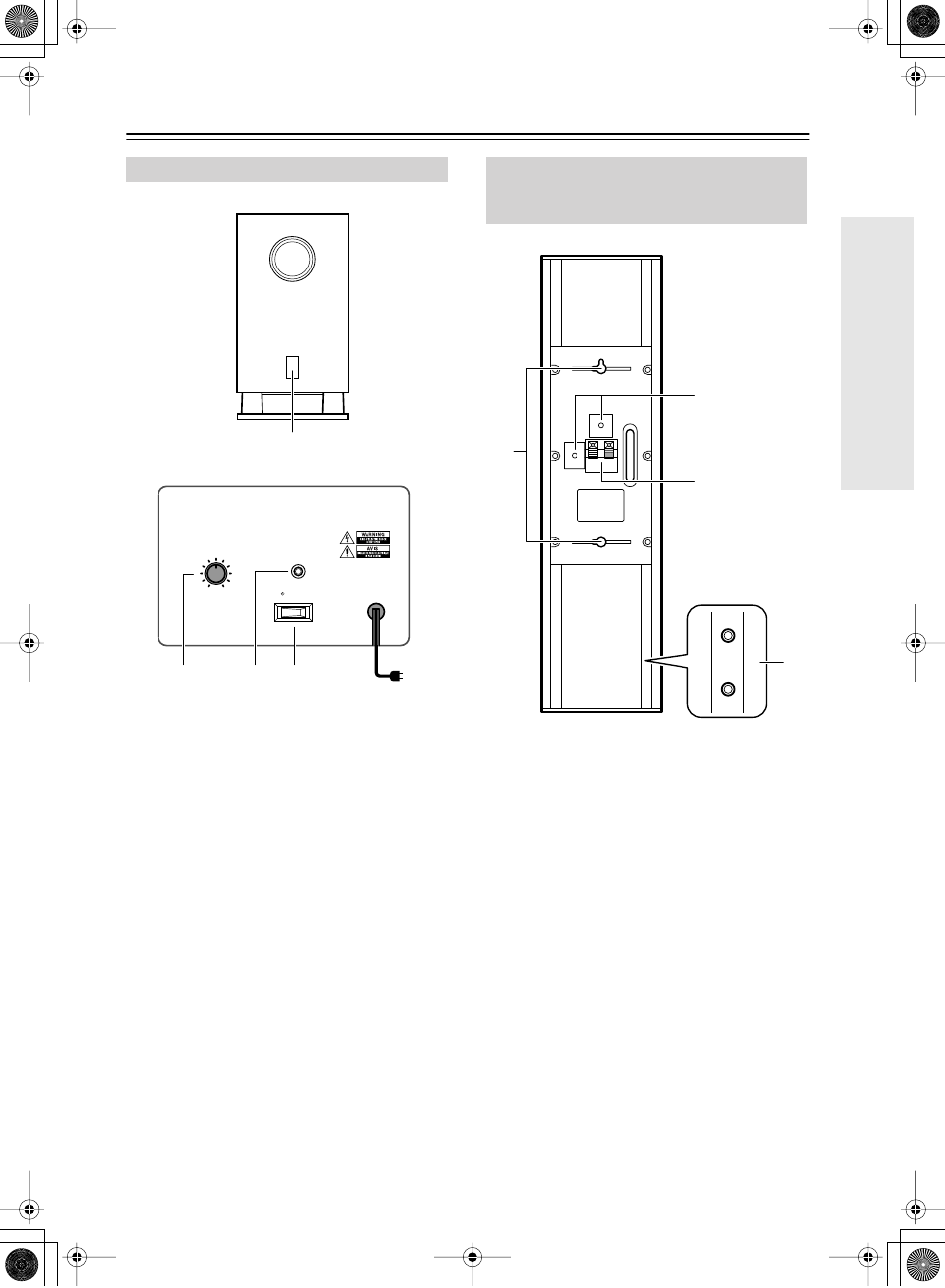

Getting to know Your Speaker Package
A STANDBY/ON indicator
Red: Subwoofer in standby mode
Green: Subwoofer on
With the Auto Standby function, the SKW-240
automatically turns on when an input signal is
detected in Standby mode. When there’s no input
signal for a while, the SKW-240 automatically
enters Standby mode.
B OUTPUT LEVEL control
This control is used to adjust the volume of the sub-
woofer.
C LINE INPUT
This RCA input should be connected to the sub-
woofer preout on your DR-S2.2 DVD Receiver,
amp, or other receiver with supplied RCA cable.
D POWER switch (not North American model)
To turn on the SKW-240, set the POWER switch to
the ON position (the indicator lights up).
To turn off the SKW-240, set the POWER switch to
the OFF position (the indicator goes out).
Note:
The Auto Standby function turns the subwoofer on when
the input signal exceeds a certain level. If the Auto
Standby function does not work reliably, try slightly
increasing or decreasing the subwoofer output level on
your receiver or amp.
1 Speaker terminals
These push terminals are for connecting the speaker
to your DR-S2.2 DVD Receiver, amp, or other
receiver with the supplied speaker cables. The sup-
plied speaker cables are color-coded for easy identi-
fication. Simply connect each cable to the same-
colored positive speaker terminal.
2 Keyhole slots
These keyhole slots can be used to wall-mount the
speaker either horizontally or vertically.
3 Speaker mount/bracket inserts
These threaded inserts can be used to attach the
speaker either horizontally or vertically to a speaker
mount or bracket.
Note:
Use commercially available M5 machine screws (1/
4-inch screws for North American model) to attach
the speaker to a speaker mount or bracket.
4 Base inserts (other than center speaker)
These threaded inserts can be used to mount the
speaker on the supplied base (screws included).
Subwoofer (SKW-240)
1
OUTPUT
LEVEL LINE
INPUT
MIN MAX
2 3 4
POWER
ON OFF
■ Front
■ Rear
To AC outlet
Front, Center & Surround Speakers
(SKF-240F, SKC-240C, SKM-240S,
SKB-240)
2
4
1
3
