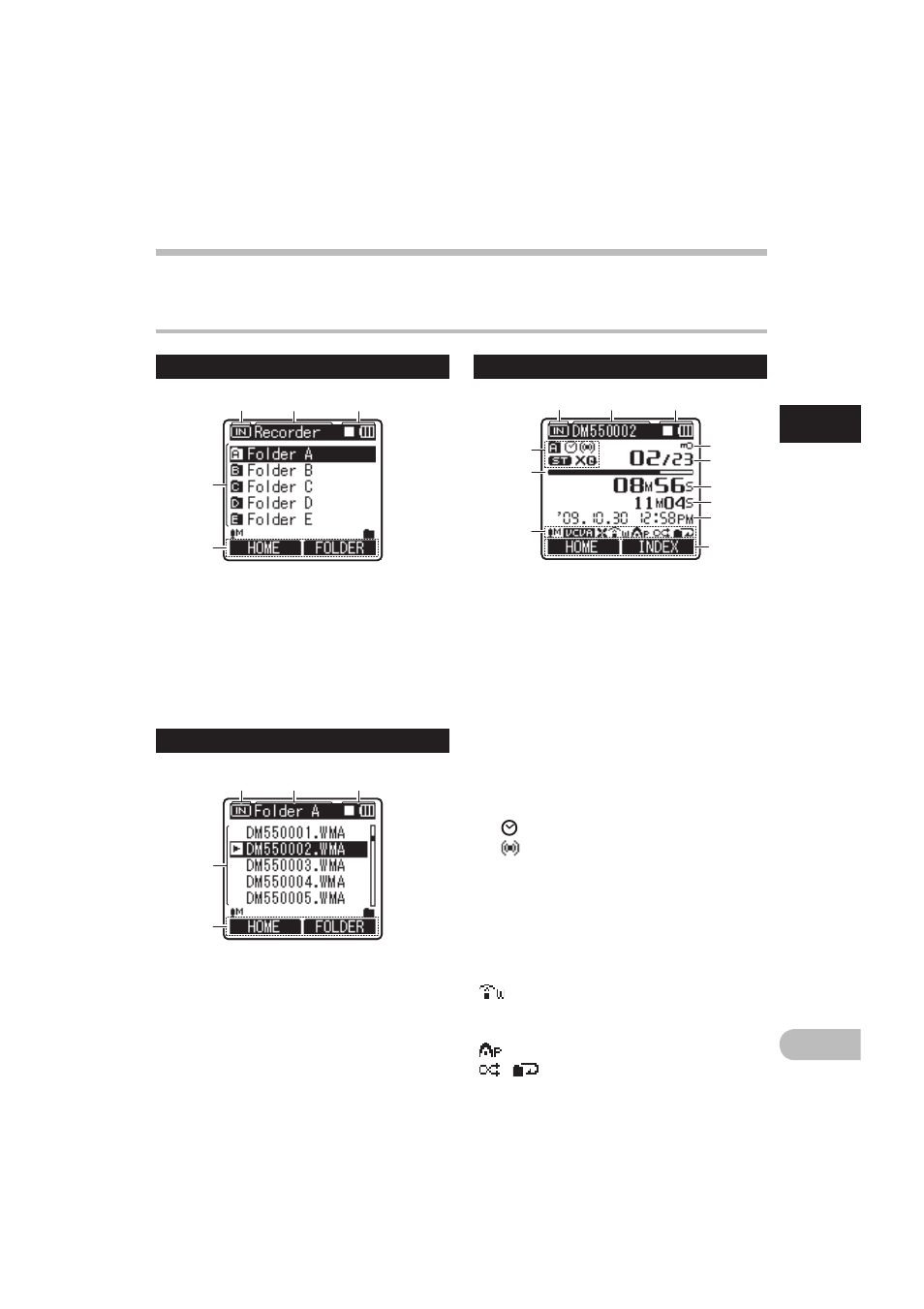

Display (LCD panel)
[Recorder] Mode Display Screen
Folder list display
1 Recording media indicator
2 Current folder name
3 Recorder status indicator/
Battery indicator
4 Folder name
5 Function guide indicator
1 Recording media indicator
2 Current folder name
3 Recorder status indicator/
Battery indicator
4 File name
5 Function guide indicator
File list display
File display
1 Recording media indicator
2 Current file name
3 Recorder status indicator/
Battery indicator
[ `]Play indicator
[s]Record indicator
[ 5 ]Pause indicator
[ 4 ]Stop indicator
[]F. Play indicator
[ ]S. Play indicator
4 Folder indicator/
Recording mode indicator/
[ ] Timer indicator
[ ] Alarm indicator
5 Remaining memory bar indicator/
Playback position bar indicator
6 Icon display
[] Microphone sensitivity indicator
[] VCVA indicator
[] Low Cut Filter indicator
[
] Zoom Mic indicator
[] Noise Cancel indicator
[] Voice Filter indicator
[
] EUPHONY indicator
[ ][ ] Playback mode indicator
