OPERATION
ADJUSTING THE OFFSET MAGAZINE
See Figures 5 - 6.
The EZ Load feature is designed for quick and easy reloads.
To prevent jamming, always adjust the magazine to the cor-
rect position for the size nail you are using. There is an ad-
justment indicator inside the magazine to help you choose
the right position.
To adjust the magazine, pull up on the spool and rotate it
until the nail tray rests in place in the desired position. Rotate
it counterclockwise to lower the nail tray. Turn it clockwise
to raise the nail tray.
Position
Nail Size
Position 1
3/4 in., 7/8 in., 1 in.
Position 2
1-1/4 in.
Position 3
1-1/2 in., 1-3/4 in.
SPOOL

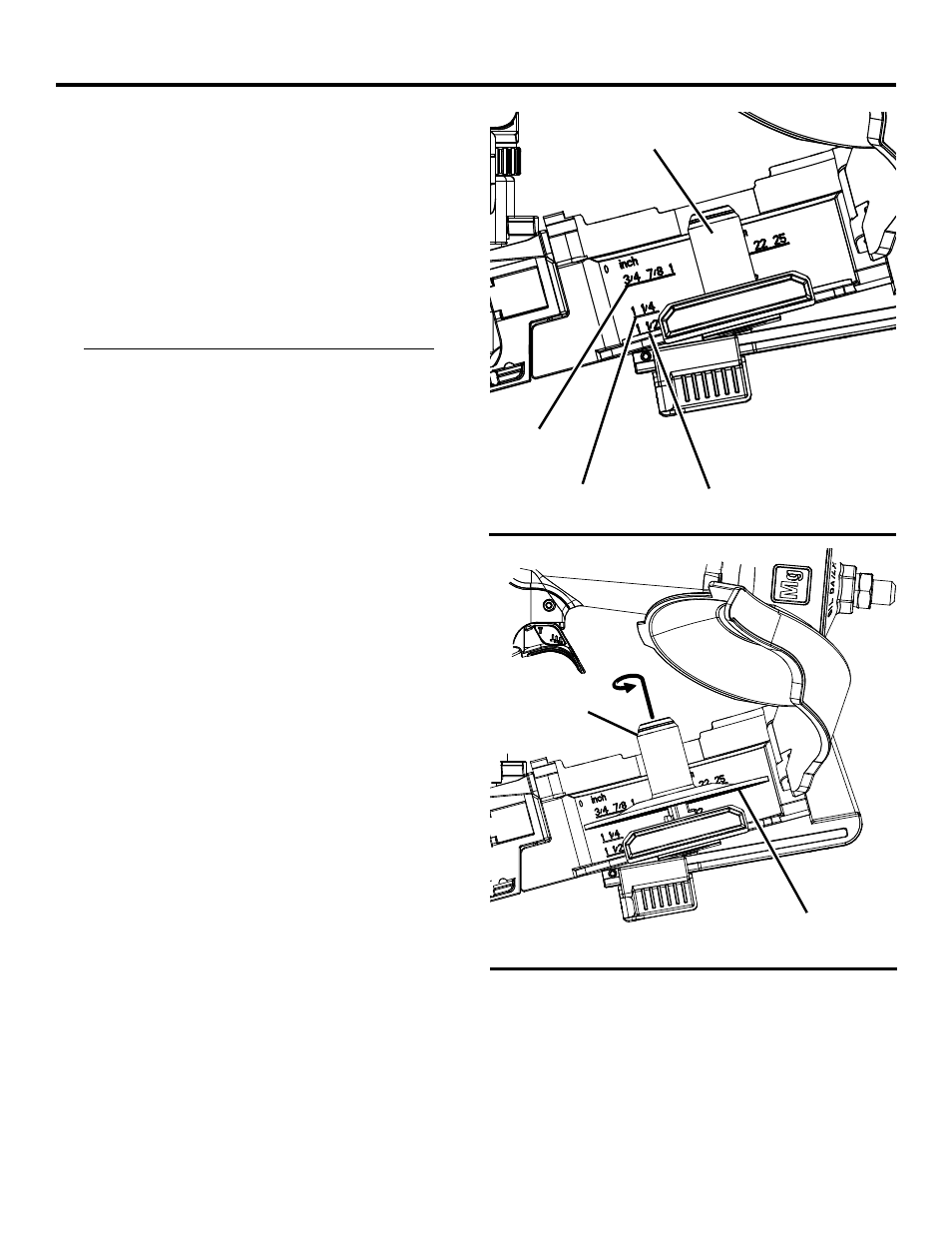

Fig. 5
Fig. 6
POSITION 1
POSITION 3
POSITION 2
SPOOL
NAIL TRAY
