2.3 Recommended Dimensions for User System Mount Pad

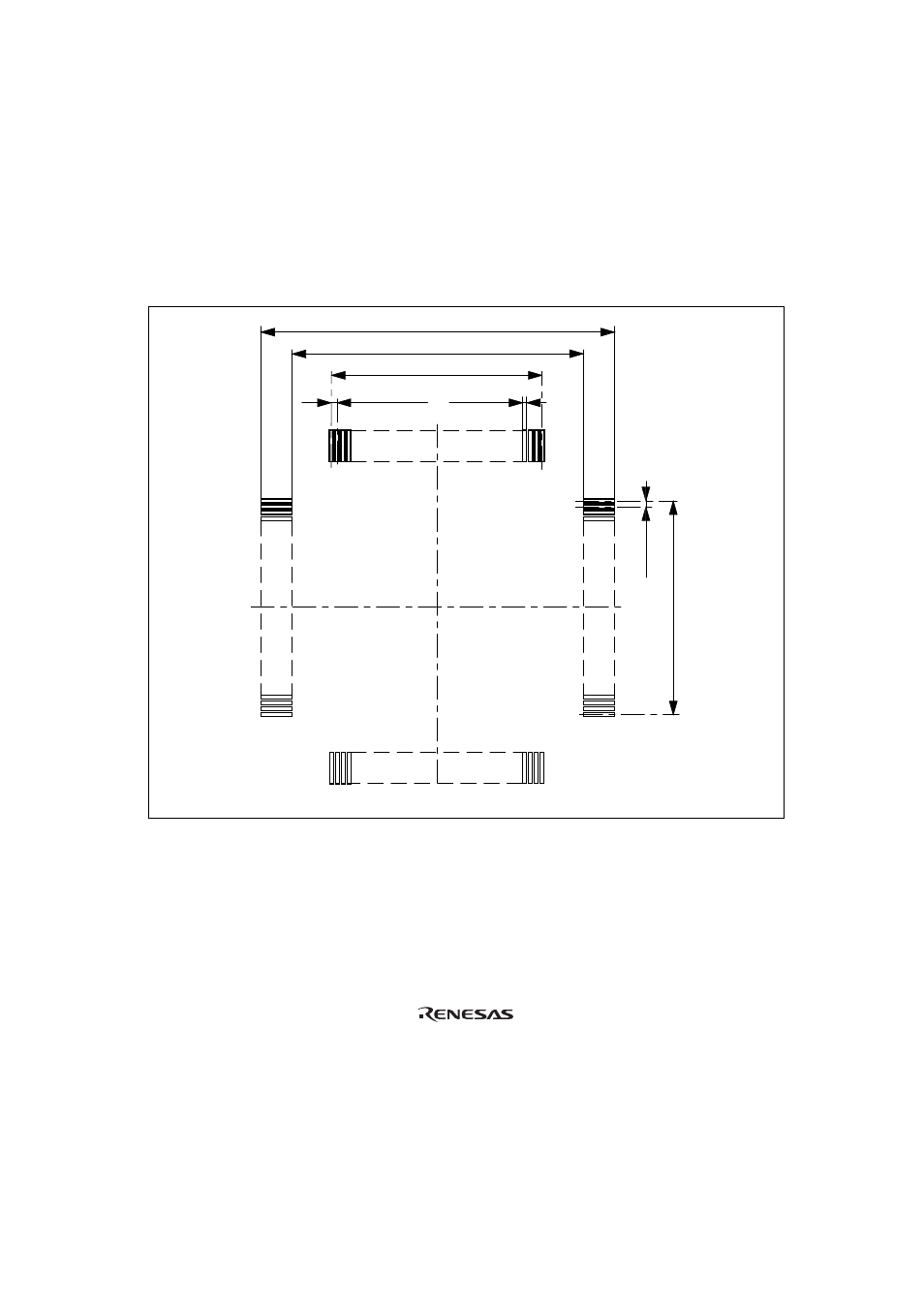

Figure 6 shows the recommended dimensions for the mount pad (footprint) for the user system with
an IC socket for an TFP-120 package (IC149-120-043-B5: manufactured by YAMAICHI
ELECTRONICS Co., Ltd). Note that the dimensions in figure 6 are somewhat different from those
of the actual chip's mount pad.
Unit: mm
0.40 – 0.05 0.25 – 0.05
0.40 x 29 = 11.60 – 0.05
0.40 x 29 = 11.60 – 0.05
13.80 (max.)
17.10 (min.)
0.40 – 0.05
Figure 6 Recommended Dimensions for Mount Pad
