Ricoh Aficio SP C811DN Series - Manual

• 866MHz CPU Speed
• 40GB Hard Disk Drive • 3,000-Sheet Finisher or 1,000-Sheet Booklet Finisher
Options (T3 version cannot be configured with a Finisher)
All models feature:

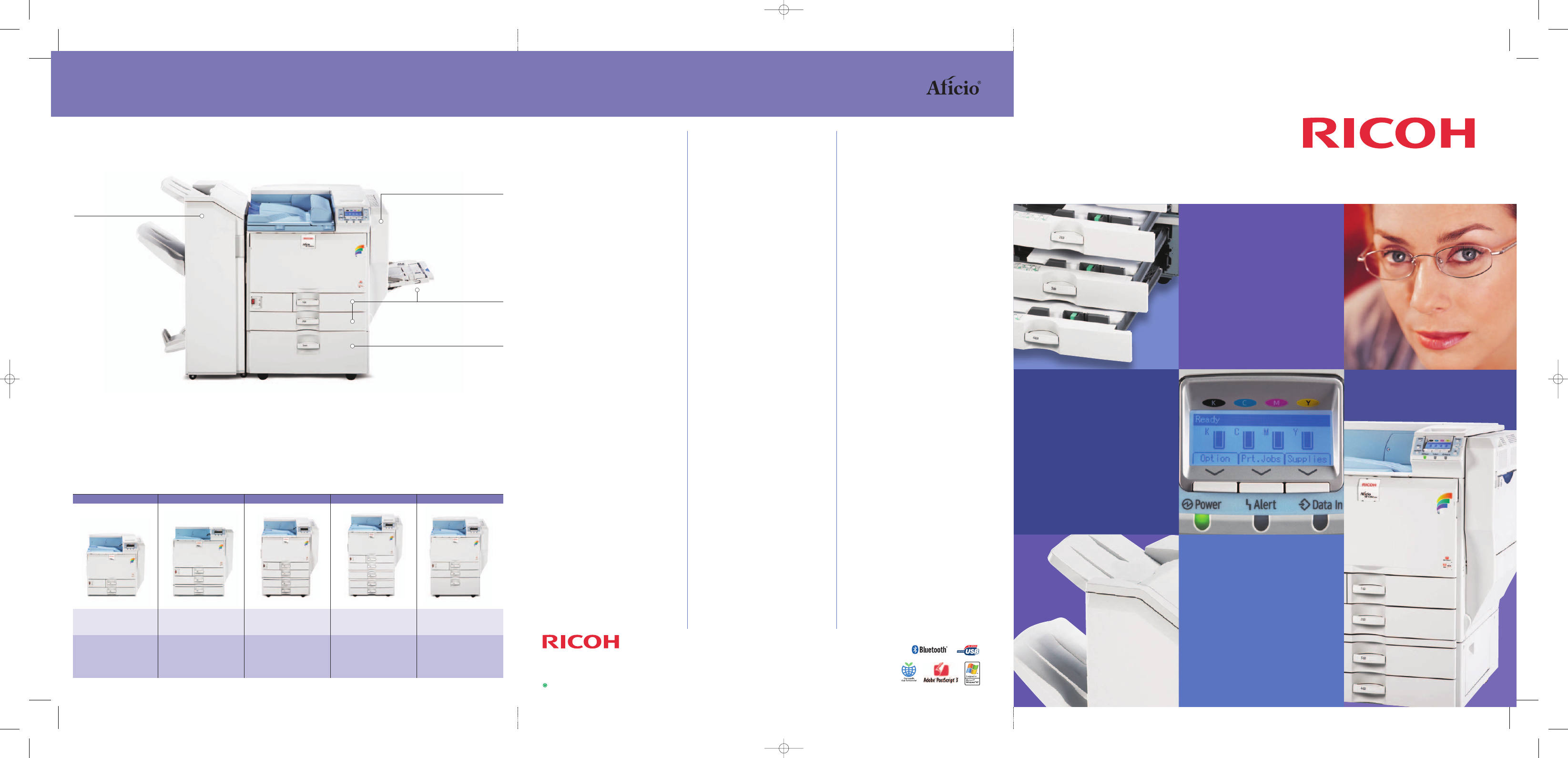

Build It Your Way…Configure the Ricoh Aficio SP C811DN Series
to Meet Your Budget and Your Requirements.
M E M O R Y
256MB std. / 512MB max.
M E M O R Y
384MB std. / 512MB max.
M E M O R Y
512MB std./max.
M E M O R Y
512MB std./max.
M E M O R Y
512MB std./max.
PA P E R S U P P LY (std.)
550 x 2 + 100-Sheet Bypass =
1,200 sheets (3 sources)
PA P E R S U P P LY (std.)
550 x 3 + 100-Sheet Bypass =
1,750 sheets (4 sources)
PA P E R S U P P LY (std.)
550 x 4 + 100-Sheet Bypass =
2,300 sheets (5 sources)
PA P E R S U P P LY (std.)
550 x 5 + 100-Sheet Bypass =
2,850 sheets (6 sources)
PA P E R S U P P LY (std.)
550 x 2 + 100-Sheet Bypass +
2,000-Sheet LCT = 3,200 sheets
(4 sources)
The printer that lets everyone do more in-house
Ricoh Corporation, Five Dedrick Place, West Caldwell, NJ 07006
Ricoh
® and the Ricoh logo are registered trademarks of Ricoh Company Ltd. Windows ® and Windows ® 95/98/Me/NT4.0/2000/XP are registered trademarks of Microsoft Corporation. Macintosh ® , Mac ® OS and
AppleTalk ® are registered trademarks of Apple Computer, Inc. Adobe ® and PostScript ® are registered trademarks of Adobe Systems, Inc. PCL ® is a registered trademark of Hewlett-Packard Company. RPCS™ is a
trademark of Ricoh Company, Ltd. All other trademarks are the property of their respective owners. Printed in U.S.A. on recycled paper. Print speed may be affected by network, application or PC performance.
Specifications and external appearances are subject to change without notice. Products are shown with optional features.
PA-0580
Printed in U.S.A. on recycled paper because Ricoh cares.
Ricoh Aficio SP C811DN Series
System Specifications
Ricoh Aficio SP C811DN Series
Color Laser Printer
Different Departments. Different Needs.
One Universal Printing Solution.
power
color
speed
Professional-grade graphics and text plus a host of convenient features
will make the Ricoh Aficio SP C811DN Series a favorite with everyone.
Reduce outsourcing
by creating
professionally
finished documents
with the optional
1,000-Sheet Booklet
Finisher
or 3,000-
Sheet Finisher .
Save paper and filing space
with standard
Automatic
Stackless Duplexing ,
producing two-sided
documents at the same speed
as single-sided printing.
Optional One-Tray or
Two-Tray Paper Feed
Unit
lets you output
onto six different sizes
and orientations of
paper (not shown).
Enjoy 3-way, 1,200-sheet
capacity with two
550-Sheet
Paper Trays and a 100-Sheet
Bypass Tray .
Maximize productivity with an
optional
2,000-Sheet Large
Capacity Tray that boosts
paper supply to 3,200 sheets.
• 10/100BaseTX Ethernet, USB 2.0 Connectivity
• Duplex Capabilties
S P C 8 1 1 D N S P C 8 1 1 D N - T 1 S P C 8 1 1 D N - T 2 S P C 8 1 1 D N - T 3 S P C 8 1 1 D N - D L
www.ricoh-usa.com
Mainframe Specifications:
SP C811DN SP C811DN-T3
SP C811DN-T1 SP C811DN-DL
SP C811DN-T2
Configuration
Desktop
Technology Laser-beam scanning & Electro-
photographic printing with dual-
component toner development
4-drum Tandem Method
Printing Speed 40-ppm black & white and full-color
Warm-up Time 60 seconds or less
First Print Speed Black & white: 8 seconds or less
Full-color: 9 seconds or less
Duplex Print Speed Near 100% productivity for all paper sizes
Print Resolution 600 x 600-dpi (1-bit)
1800 x 600-dpi (2-bit) (Default)
9600 x 600-dpi (4-bit) interpolated
Standard Input SP C811DN (Base): 2 x 550 sheets +
Capacity 100-Sheet Bypass Tray*
SP C811DN-T1: 3 x 550 sheets +
100-Sheet Bypass Tray
SP C811DN-T2: 4 x 550 sheets +
100-Sheet Bypass Tray
SP C811DN-T3: 5 x 550 sheets +
100-Sheet Bypass Tray
SP C811DN-DL: 2 x 550 Sheets + 2,000
sheet LCT + 100-Sheet Bypass Tray
(Maximum 3,200 Sheets)
*Can be configured with 550 x 1 Paper Feed Unit; 550 x 2 Paper Feed Unit;
or Large Capacity Tray
Output Capacity Standard: 500 sheets face down
Optional: 3,000-Sheet Finisher or
1,000-Sheet Booklet Finisher
Maximum: 3,750-sheet stack capacity
(with 3,000-Sheet Finisher)
Paper Sizes First Paper Tray: 8.5” x 11”
Second Paper Tray: 7.25” x 10.5” –
11” x 17”
Bypass Tray: Width: 3.5” – 12”,
Length: 5.8” x 18” (12” x 18” max)
Up to 12” x 49.6” using RPCS Driver
for banner printing
Optional Large Capacity Tray: 8.5” x 11”
Optional Paper Feed Units: 7.25” x 10.5”
– 11” x 17”
Paper Weights Standard & Optional Paper Feed Units,
Large Capacity Tray: 16 – 57 lb. Bond/
120 lb. Index (60 – 216 g/m
2 )
Bypass Tray: 16 – 68 lb. Bond/140 lb.
Index (60 – 256 g/m
2 ) (Source for
Labels, OHP, and Envelopes)
Duplex Unit: 16 – 45 lb. Bond/90 lb.
Index (60 – 169 g/m
2 )
Paper Types Plain, Recycled, Preprinted, Special,
Color, Letterhead, Card Stock, Glossy,
Coated, Labels, OHPs and Envelopes
Auto Duplex Standard
Dimensions (WxDxH) 26.4” x 26.4” x 25.2” (670 x 670 x
640mm) (Standard Configuration)
Weight Less than 214 lb. (97kg)
Power Requirements 120V, 60Hz
Average Power
1092W
Consumption
Printer Controller Specifications (Standard)
CPU Intel Celeron @ 866MHz, Embedded
Memory SP C811DN: Standard 256MB RAM;
Maximum 512MB RAM
SP C811DN-T1: Standard 384MB RAM;
Maximum 512MB RAM
SP C811DN-T2/T3/DL: Standard/Maximum
512MB RAM
Hard Disk Drive 40GB HDD Standard on all models
(Stores up to 100 documents)
Printer Languages PCL 5c, PCL 6, RPCS, Adobe ®
Postscript ® 3 ™ , PDF Direct Print
Fonts Standard: 45 PCL fonts, 13 International
fonts, 136 PostScript 3 fonts
Standard Interfaces 10/100BaseTX Ethernet (RJ-45), USB 2.0
Optional Interfaces* IEEE 1284 Interface Board Type A –
Part # 411699
IEEE 802.11b Wireless LAN Type I –
Part # 402631
Bluetooth Wireless Interface Type 3245
– Part # 412866
Gigabit Ethernet Board Type A –
Part # 402547
USB Host I/F Type A – Part # 412867
*Only one additional interface can be installed.
Network Protocols TCP/IP, IPX/SPX, AppleTalk
Operating Systems Windows 95/98SE/NT4.0/2000/Me/XP/
Server 2003; Novell NetWare 3.12, 3.2,
4.1, 4.11, 5.0, 5.1, 6, 6.5; UNIX (using
Ricoh UNIX filter Phase 11): Sun Solaris,
HP-UX, SCO OpenServer, RedHat Linux,
and IBM AIX; Mac OS 8.6 – 9.2x, OS X
10.1 or later; SAP R/3 3.x or later
Utilities SmartDeviceMonitor for Admin and
Client; Web SmartDeviceMonitor;
Web Image Monitor; DeskTopBinder V2
Lite; Print Utility for Mac; Agfa Font
Manager 2000
Controller Options* Camera Direct Print Card Type C – Part
# 402713: Enables direct printing from
a PictBridge
™ enabled digital camera,
without a PC (requires USB Host Interface).
VM Card Type D for ESA
™ – Part # 402704
User Account Enhance Unit Type E –
Part # 402270: Monitors printer usage
and restricts users’ access via Web Image
Monitor and SmartDeviceMonitor. 30
user codes ship standard. This option
provides for a total of 500 user codes.
Memory Options Memory Unit Type C 128MB RAM –
Part # 001179MIU
Memory Unit Type C 256MB RAM –
Part # 001180MIU
144-pin DIMM SD-RAM (PC133
Compliant); Maximum 512MB
Security Features DataOverwriteSecurity System Type G
(Optional) – Part # 402703: Security
feature that overwrites latent data on
the system's hard drive after copy, scan
and print jobs.
Copy Data Security (Unauthorized Copy
Prevention in RPCS) – Standard: Files
printed via RPCS can be embedded with a
special message that instructs the scanner
not to copy, scan or send the page.
DESS Module (Network Data Protection
Unit) – Standard: Enables data
encryption so that only the printer can
properly recreate the data stream,
guarding against information theft.
Other Security SNMP v3 Authentication and
Features Data Encryption
PDF Direct Print Password Protection
Locked (Secure) Print Mode
User Codes /User Authentication
Wi-Fi Protect Access (WPA) Support
PDF Encryption
Hardware Accessories
550 x 1 Paper Feed Unit (TK3000) – Part # 402843
Paper Capacity
550 sheets
Paper Size 7.25” x 10.5” to 11” x 17”
Paper Weight 16 – 57 lb. Bond/120 lb. Index
(60 – 216 g/m
2 )
550 x 2 Paper Feed Unit (PB3000) – Part # 412844
Paper Capacity
1,100 sheets (550 sheets x 2 trays)
Paper Size 7.25” x 10.5” to 11” x 17”
Paper Weight 16 – 57 lb. Bond/120 lb. Index
(60 – 216 g/m
2 )
2,000-Sheet Large Capacity Tray (PB3010) – Part # 412846
Paper Capacity
2,000 sheets (1,000 sheets x 2)
Paper Size 8.5” x 11”
Paper Weight 16 – 57 lb. Bond/120 lb. Index
(60 – 216 g/m
2 )
FAC33 Cabinet Stand (Large) – Part # 413762
Note: The Cabinet Stand or a paper supply option must be selected for the
Base Model installation when the printer is to be configured with a Finisher.
FAC35 Stand – Part # 402849
Note: The Stand or a paper supply option must be selected for the
SP C811DN-T1 installation when the printer is to be configured with a Finisher.
1,000-Sheet Booklet Finisher* (SR3000) – Part # 412851
Number of Trays
3: Proof Tray, Shift Tray, Booklet Tray
Paper Size 5.5” x 8.5” to 11” x 17”, 12” x 18”
Paper Weight Upper Proof Tray: 14 - 28 lb. Bond
(52 - 105 g/m
2 )
Lower Shift Tray: 14 – 68 lb. Bond/
140 lb. Index (52 – 256 g/m
2 )
Stack Capacity Upper Proof Tray: 100 sheets (8.5” x 11”
or smaller), 50 sheets (8.5” x 14” or larger)
Lower Shift Tray: 1,000 sheets (8.5” x 11”
or smaller), 500 sheets (8.5” x 14” or larger)
Staple Capacity 50 sheets (8.5” x 11”), 30 sheets
(8.5” x 14” or larger)
Saddle-Stitch: 10 sheets (up to 40-page
booklets)
Staple Paper Size 8.5” x 11” to 11” x 17”
Staple Positions 1 staple / 2 positions
2 staples / 3 positions
2/3-hole Punch Optional Punch Kit Type 3000 – Part # 412855
Hole Punch Weight 14 – 43 lb. Bond/90 lb. Index (52 – 163 g/m 2 )
*Requires Bridge Unit (Product Code: 412880)
Note: The T3 version is not compatible with either finisher.
3,000-Sheet Finisher* (SR3030) – Part # 413325
Number of Trays
2: Proof Tray, Shift Tray
Paper Sizes 5.5” x 8.5” to 11” x 17”, 12” x 18”
Paper Weight Proof Tray: 14 – 43 lb. Bond/90 lb.
Index (52 – 163 g/m
2 )
Shift Tray: 14 – 68 lb. Bond/140 lb.
Index (52 – 256 g/m
2 )
Stack Capacity Proof Tray: 250 sheets (8.5” x 11” or
smaller), 50 sheets (8.5” x 14” or larger)
Shift Tray: 3,000 sheets (8.5” x 11”),
1,500 sheets (8.5” x 14” or larger)
Staple Capacity 50 sheets (8.5” x 11”), 30 sheets
(8.5” x 14” or larger and mixed size
documents)
Staple Paper Size 8.5” x 11” to 11” x 17”, 12” x 18”
Staple Weight 17 – 24 lb. Bond (64 – 90 g/m 2 ) (all modes)
Staple Positions 1 staple / 3 positions
2 staples / 1 position
2/3-hole Punch Optional Punch Kit Type 3260 – Part # 412209
Hole Punch Weight 14 – 43 lb. Bond/90 lb. Index (52 – 163 g/m 2 )
*Requires Bridge Unit (Product Code: 412880)
Note: The T3 version is not compatible with either finisher.
MFP Upgrade Option
IS300e Image Scanner – Part # 402252
Scanning Functionality: Scan-to-Email, Scan-to-Folder,
Scan-to-FTP, TWAIN Scanning, & Scan-to-Print
Supplies
Consumables Part # Yield
High Yield Black Toner 820000 20,000 pages @ 5%
High Yield Yellow Toner 820008 15,000 pages @ 5%
High Yield Magenta Toner 820016 15,000 pages @ 5%
High Yield Cyan Toner 820024 15,000 pages @ 5%
Black Toner 820032 10,000 pages @ 5%
Yellow Toner 820039 8,000 pages @ 5%
Magenta Toner 820046 8,000 pages @ 5%
Cyan Toner 820053 8,000 pages @ 5%
Photoconductor Unit: Black 402714 40,000 pages
Photoconductor Unit: Color 402715 40,000 pages
Waste Toner Bottle 402716 40,000 pages
Intermediate Transfer Unit 402717 160,000 pages
Fusing Unit 402718 120,000 pages
Staple Type K (for SR3030) 410801 5,000 shots/staple
Staple Type S (for SR3000) 412874 5,000 shots/staple
Staple Refill Type K 410802 15,000 shots/staple
(for SR3030/SR3000)
SP C811DN, SP C811DN-T1, SP C811DN-T2, SP C811DN-T3, and
SP C811DN-DL ship with starter toner cartridges that yield 10,000 pages
for Black and 8,000 pages for each Color @ 5% coverage.
For maximum performance and yield, we recommend using genuine Ricoh
parts and supplies.
Specifications subject to change without notice.
D10420_RICOH SPC811DN_R3 11/28/06 4:07 PM Page 1
