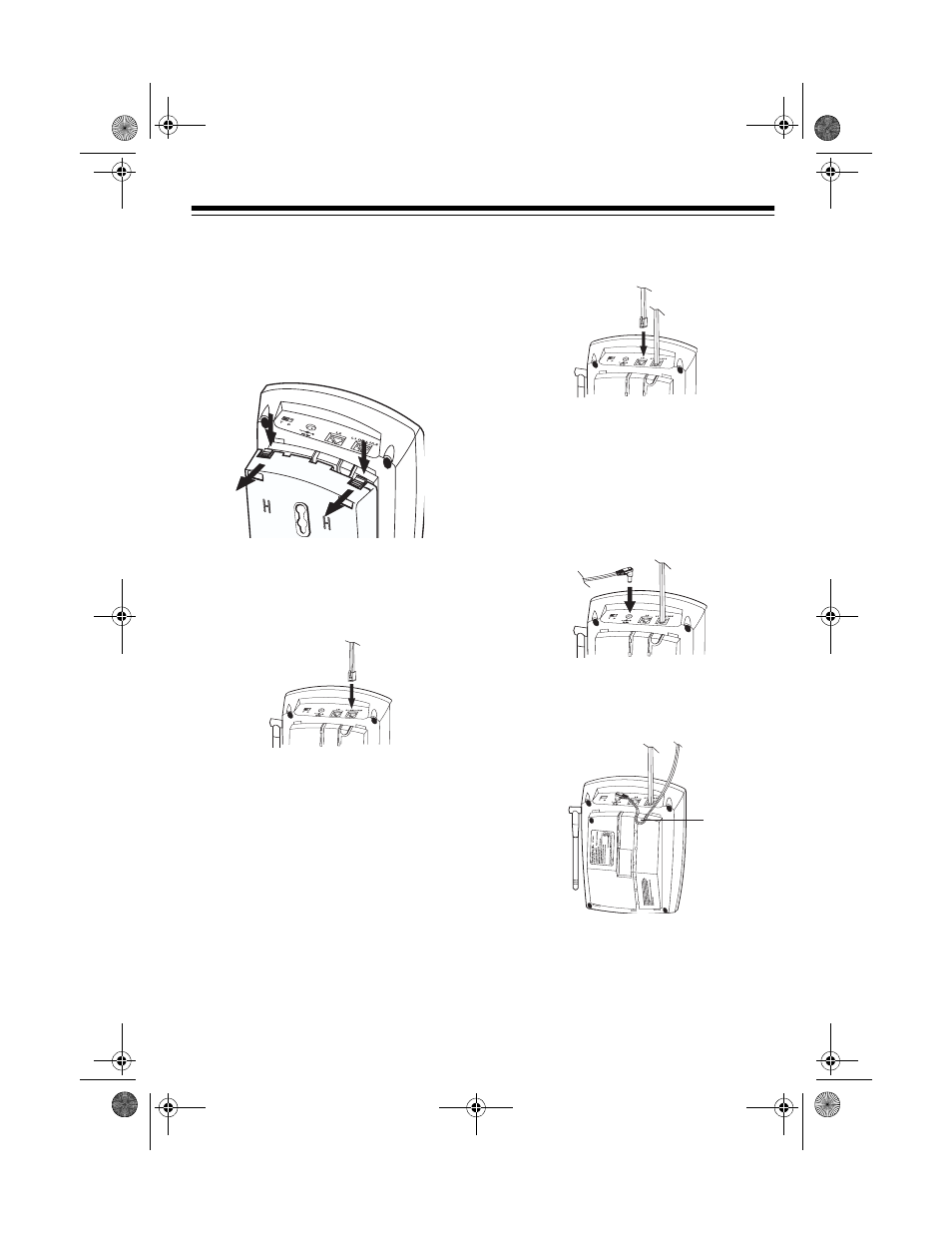

MOUNTING THE PHONE
On a Desk Top
1. Remove the base’s bracket by
pressing both tabs on the wide end,
then lifting off the bracket.
2.
If you have a single 2-line modular
jack, plug one end of the supplied 2-
line long modular cord into
L1 OR L1/
L2
on the back of the phone’s base.
Note: When you make this connec-
tion, do not connect another modu-
lar cord to the
L2
jack. Otherwise,
the phone will not operate properly.
If you have two separate 1-line mod-
ular jacks, plug one end of the sup-
plied 2-line long modular cord into
L1 OR L1/L2
and plug the other sup-
plied 2-line long modular cord into
L2
.
If you have a single 1-line modular
jack, plug one end of either supplied
long modular cord into
L1 OR L1/L2
to use line 1, or into
L2
to use line 2.
3. Plug the supplied AC adapter’s bar-
rel plug into the
DC 12V
jack on the
back of the phone’s base.
4. Route the adapter’s cord through
the right groove on the bottom of the
base.
