10
3. If you have a single 2-line modular
jack, plug one end of the supplied
long 2-line modular cord into
L1 OR
L1/L2 on the back of the phone’s
base.
Note: When you make this connec-
tion, do not connect another modu-
lar cord to the
L2 jack. Otherwise,
the phone will not operate properly.
If you have two separate 1-line mod-
ular jacks, plug one end of the sup-
plied 2-line long modular cord into
L1 OR L1/L2 and plug the supplied 2-
line long modular cord into L2 .
If you have a single 1-line modular
jack, plug one end of either supplied
long modular cord into
L1 OR L1/L2
to use line 1, or into L2 to use line 2.
4. Plug the supplied AC adapter’s bar-
rel plug into the DC 12V jack.
5. Route the adapter’s cord through
the right groove on the bottom of the
base. Route the long modular cord
through the left groove on the bot-
tom of the base.
If you have connected two long
modular cords, route the cord con-
nected to
L1 OR L1/L2 through the
right groove on the bottom of the
base, and route the cord connected
to
L2 through the hole in the center
of the bracket.
6. Insert the tabs on the narrow end of
the bracket into the slots on the
base’s bottom as shown, then push
the tabs on the wide end of the
bracket until it clicks securely into
place.
7. Plug the AC adapter into a standard
AC outlet.
8. Plug the other end(s) of the cord(s)
into a modular phone line jack(s).

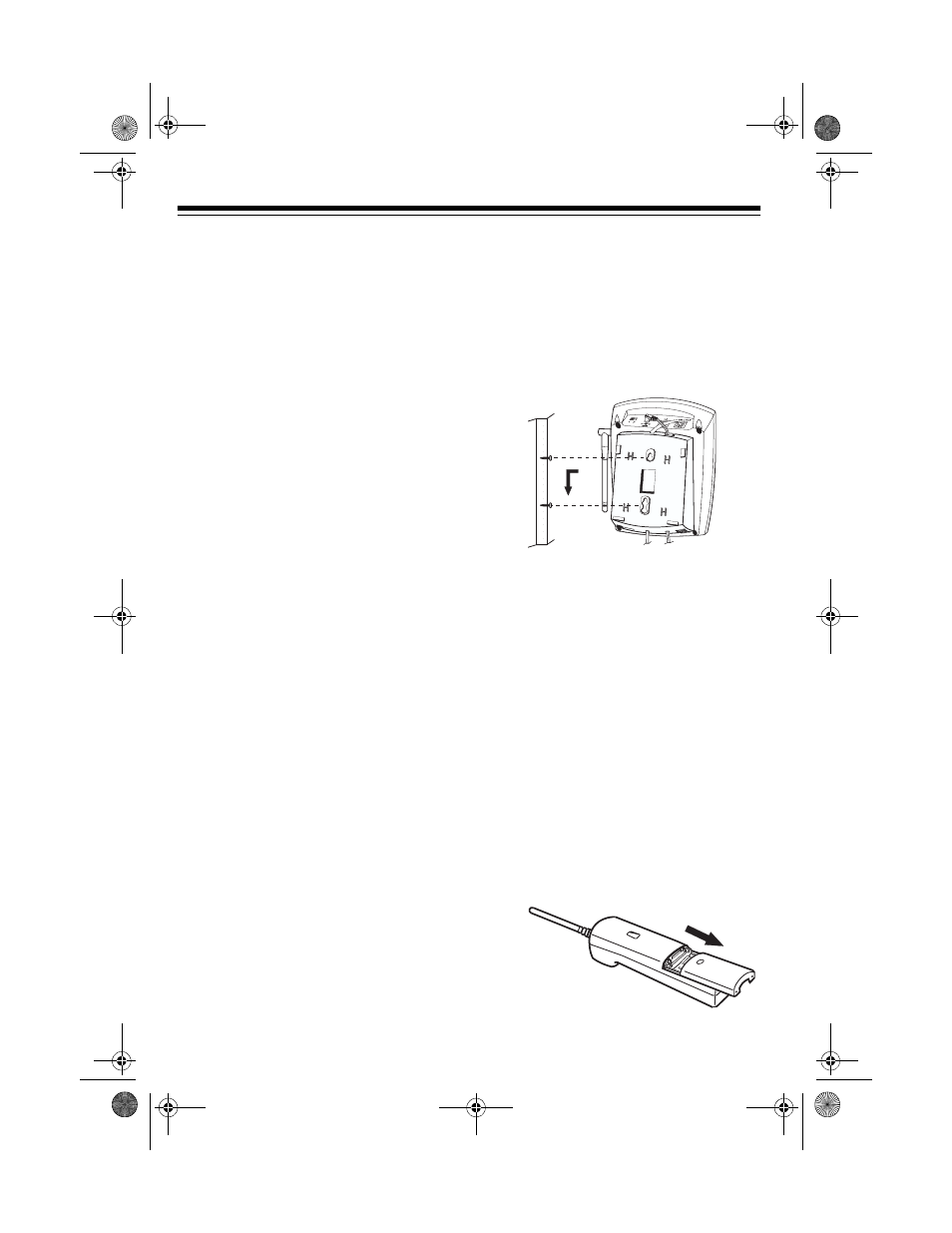

9. Align the base’s keyhole slots with
the mounting screws and slide the
base downward to secure it.
10. Lift the base’s antenna to a vertical
position.
CONNECTING AND
CHARGING THE BATTERY
PACK
The ET-689 comes with a rechargeable
nickel-cadmium battery pack in the
handset but not connected. Before using
your phone, you must connect the bat-
tery pack, then charge it for about 15
hours.
1. Press down and slide off the battery
compartment cover.
