2. [1] After making sure the direction of the expansion board connector labeled E6000
EMULATOR is correct, firmly insert the expansion board connector into the emulator
station connector labeled USER INTERFACE ([1] in figure 2).
[2] Connect the expansion board labeled USER INTERFACE CABLE and the user system
interface cable body.
60
00
US ER INTER
FAC E CA
BLE
E6 000 EM ULA TO R
E6000
[2]
160kHz
Emulator station
Expansion board
[1]
Subclock selection
E
Cable body connector
User system interface cable

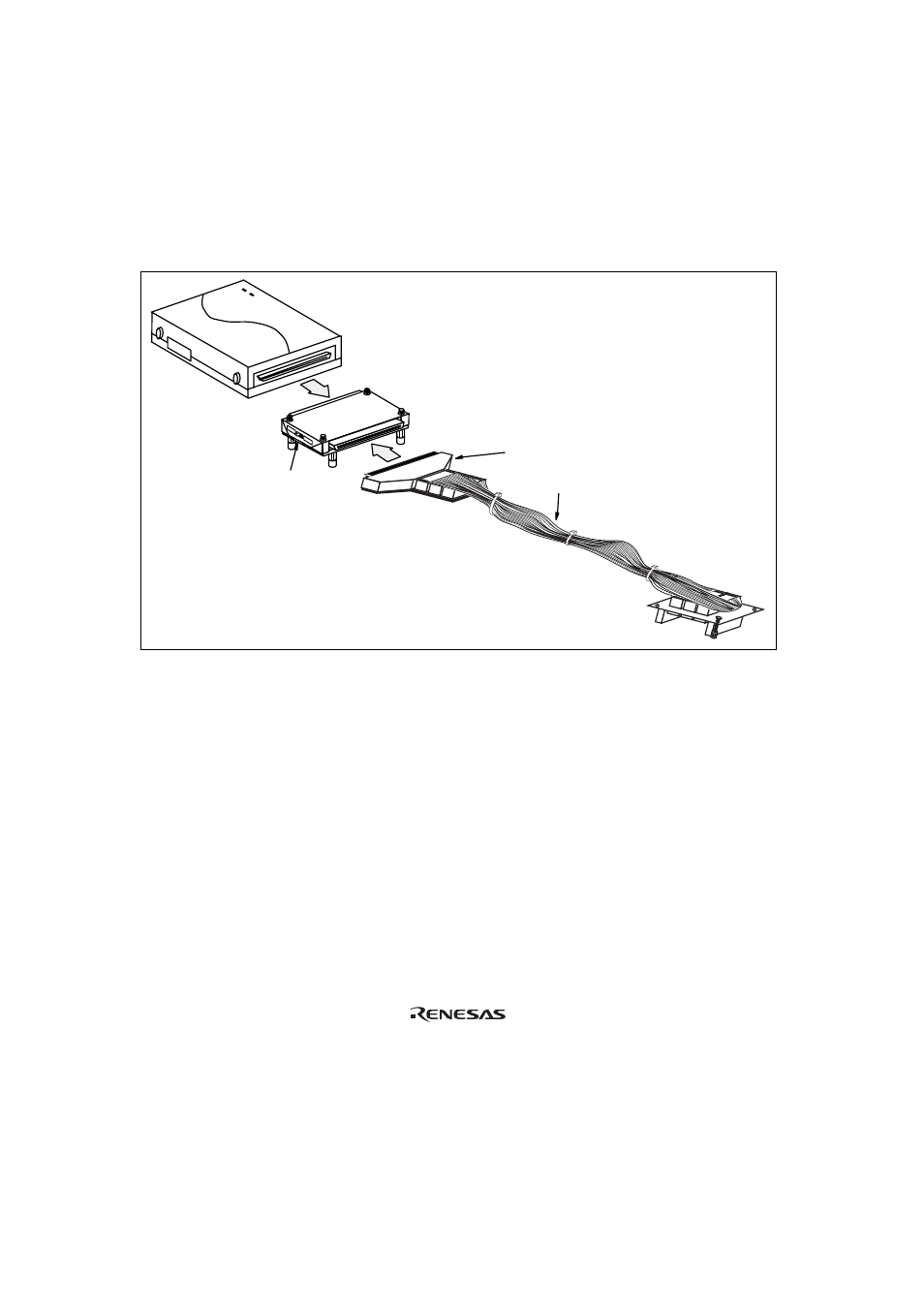

Figure 2 Connecting User System Interface Cable to Expansion Board
4
