ROTEL Six Channel Power Amplifier RB-976 - Manual (Page 4)

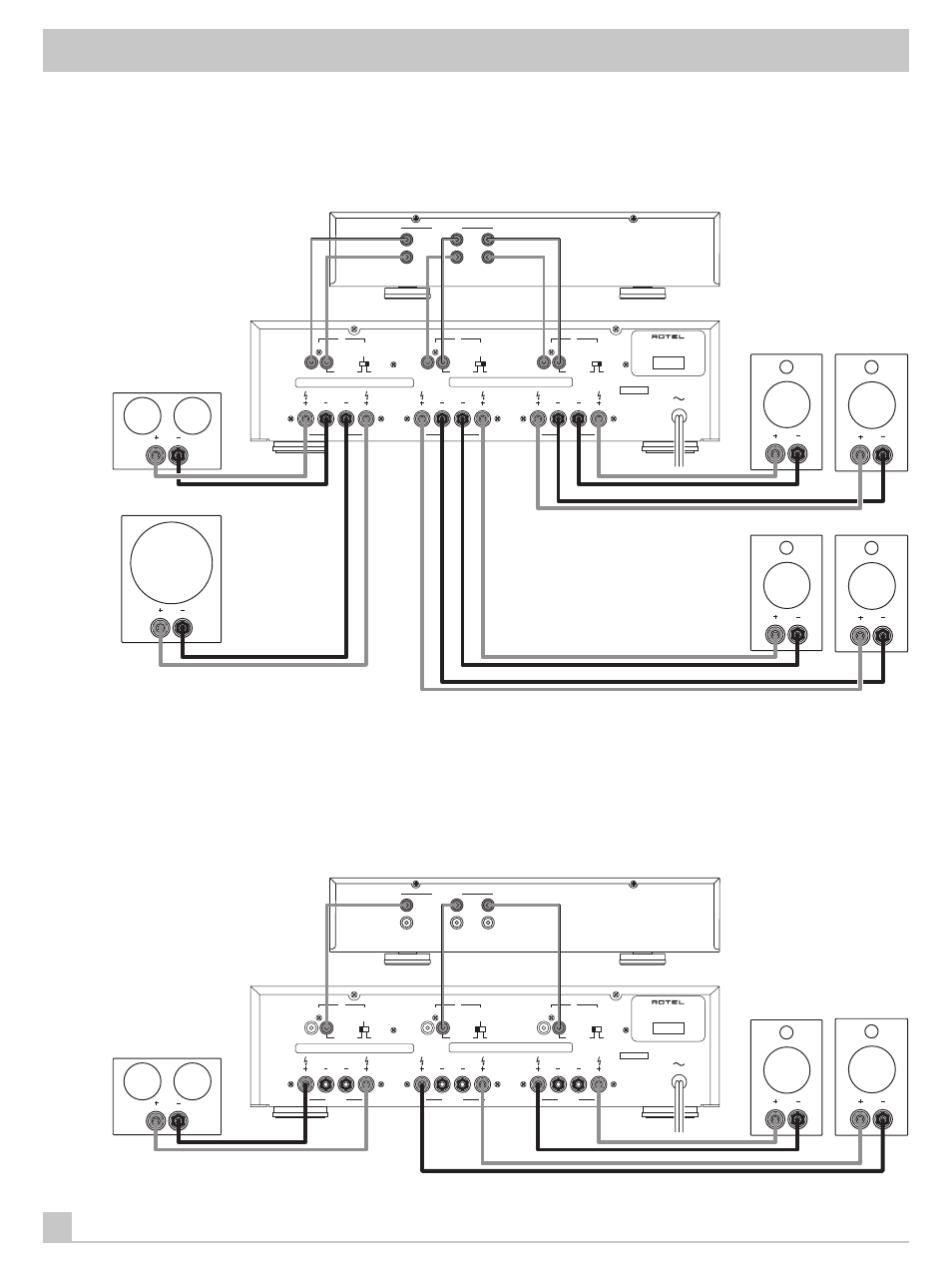

Figure 2: Normal Connections – Inputs and Speakers
Branchements normaux - Prises d’entrée et enceintes
Anschlußdiagramm bei normalem Betrieb (Eingangs- und Lautsprecheranschlüsse)
Collegamenti normali - Ingressi e diffusori
Realización de las Conexiones - Entradas y Cajas Acústicas
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Figure 3: Bridged Mono Connections – Inputs and Speakers
Branchements en mono en mode ponté - Prises d’entrée et enceintes
Anschlußdiagramm bei Brückenschaltung (Eingangs- und Lautsprecheranschlüsse)
Collegamenti mono “a ponte” (Bridged) - Ingressi e diffusori
Conexiones para el Funcionamiento en Modo Monofónico Puenteado - Entradas y Cajas Acústicas
