Specifications
Description
For those who desire the ultimate performance and maximum flexibility from their home theater, the RSP-1570 is the surround preamp/
processor to own. All of Rotel’s renowned audio experience has been poured into this design to provide you with the very best in audio
and video reproduction. The RSP-1570 features HDMI 1.3 connections with 1080p / 24 Hertz compliance and processing for the new
“Deep Color” and xvYCC options. This superbly designed component is easy to set up and use and is a custom installer’s friend with
rear panel bi-directional RS-232 ports, assignable 12-volt triggers and multiple IR connections. The RSP-1570 can also be used as a
“whole house” audio system with its additional multiroom audio outputs.

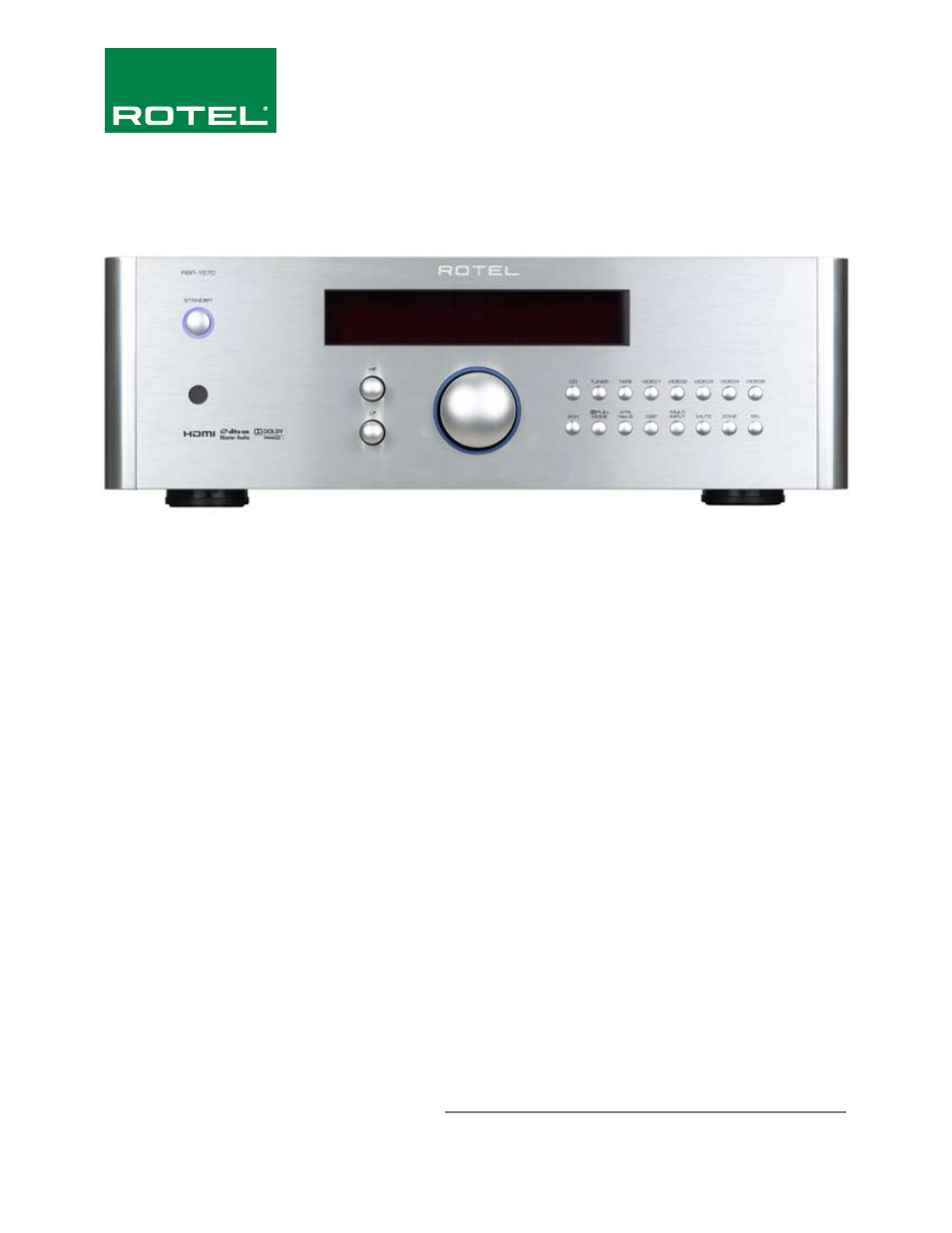

RSP-1570
7.1 Home Theater Surround Processor / Preamplifier
<0.05%
<0.05%
10Hz-120kHz, +/- 0.3 dB
10Hz-95kHz, +/- 0.3 dB
95 dB
92 dB
Line Level: 200 mV / 100 k ohms
+/- 6 dB at 50 Hz / 15kHz
1.0 V / 1 k ohm
Dolby Digital, Dolby Digital EX,
Dolby Prologic IIx, DTS, DTS_ES,
DTS96/24, LPCM (up to 192K),
Dolby TrueHD, DTS HD
Master Audio
THD (20-20,000Hz)
IM Distortion
Frequency Response (+/-1 dB)
Analogue Bypass
Digital Input
S/N Ratio (IHF A)
Analogue Bypass
Digital Input
Input Sens. / Impedance
Contour (LF/HF)
Preamp Output Levels
Decodable Digital Input Signal
Video
Frequency Response
S/N Ratio
Digital Input Impedance
Digital Output Impedance
Digital Output Level
Power Consumption
Power Requirements
Weight (net)
Dimensions
Dimensions inches
Front Panel Height
3 Hz - 10MHz, +/- 3 dB (Composite, S-Video)
3 Hz - 100MHz, +/- 3 dB (Component Video)
45 dB
75 ohms
75 ohms
1.0 volt
60 watts, Standby 5.5 watts
120 volts, 60Hz (USA version)
230 volts, 50Hz (CE version)
9.6 kg / 22 lbs.
431 x 144 x 335 mm
17 x 5 5/8 x 13 2/8 in
3U / 132.6mm / 5 2/8 in
