9

2.3

Recommended Dimensions for User System Mount Pad

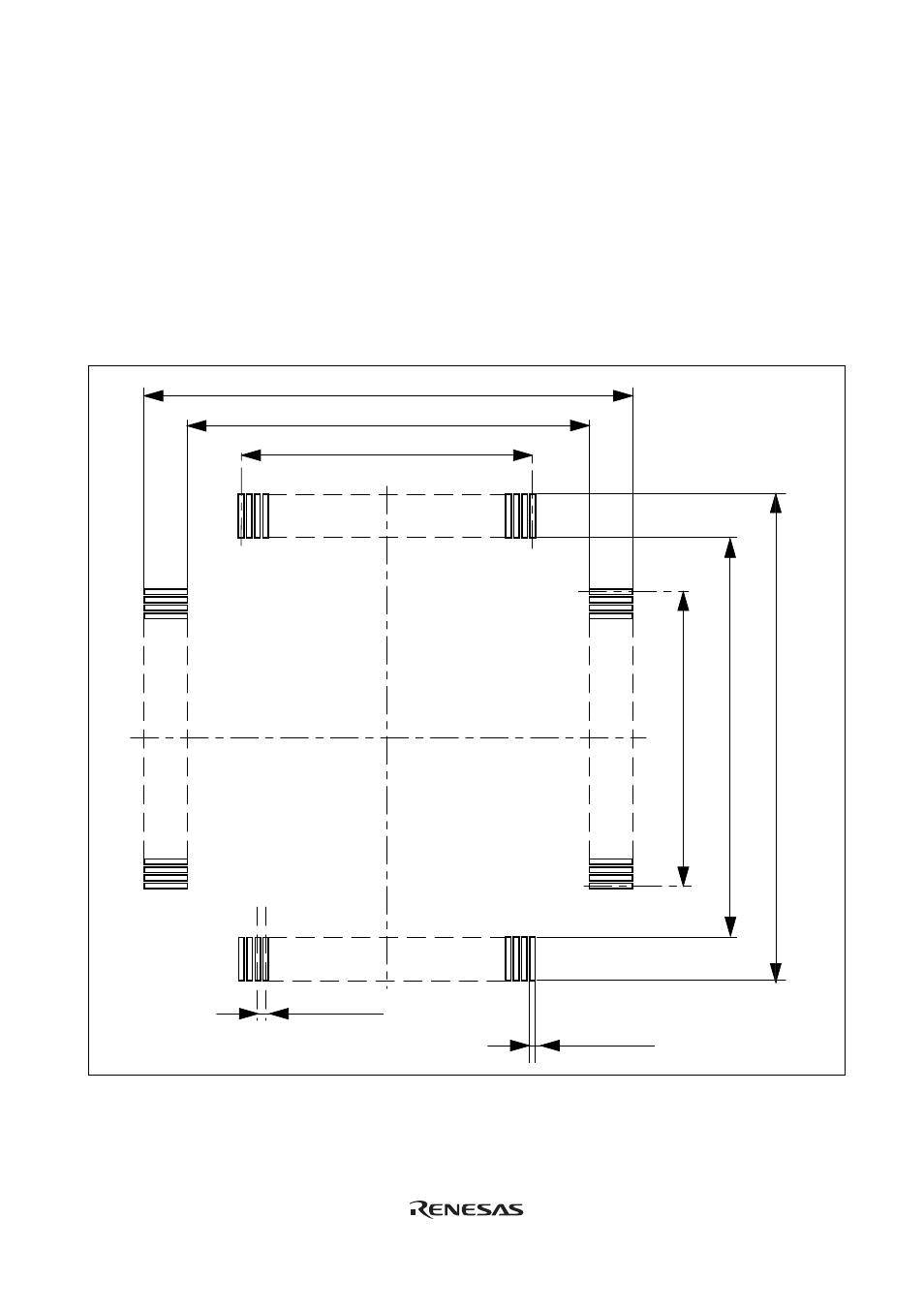

Figure 5 shows the recommended dimensions for the mount pad (footprint) for the user system
with an IC socket for an FP-64E package (IC149-064-175-B51: manufactured by YAMAICHI
ELECTRONICS Co., Ltd.). Note that the dimensions in figure 5 are somewhat different from
those of the actual chip's mount pad.

Unit: mm

0.50

Ч

15 = 7.50 ± 0.05

0.50 ± 0.05

0.50

Ч

15 = 7.50 ± 0.05

10.10 max

13.50 min

0.30 ± 0.05

13.50 min

10.10 max

Figure 5 Recommended Dimensions for Mount Pad
