8-Port Managed Gigabit Ethernet Switch, 128-bit Encryption

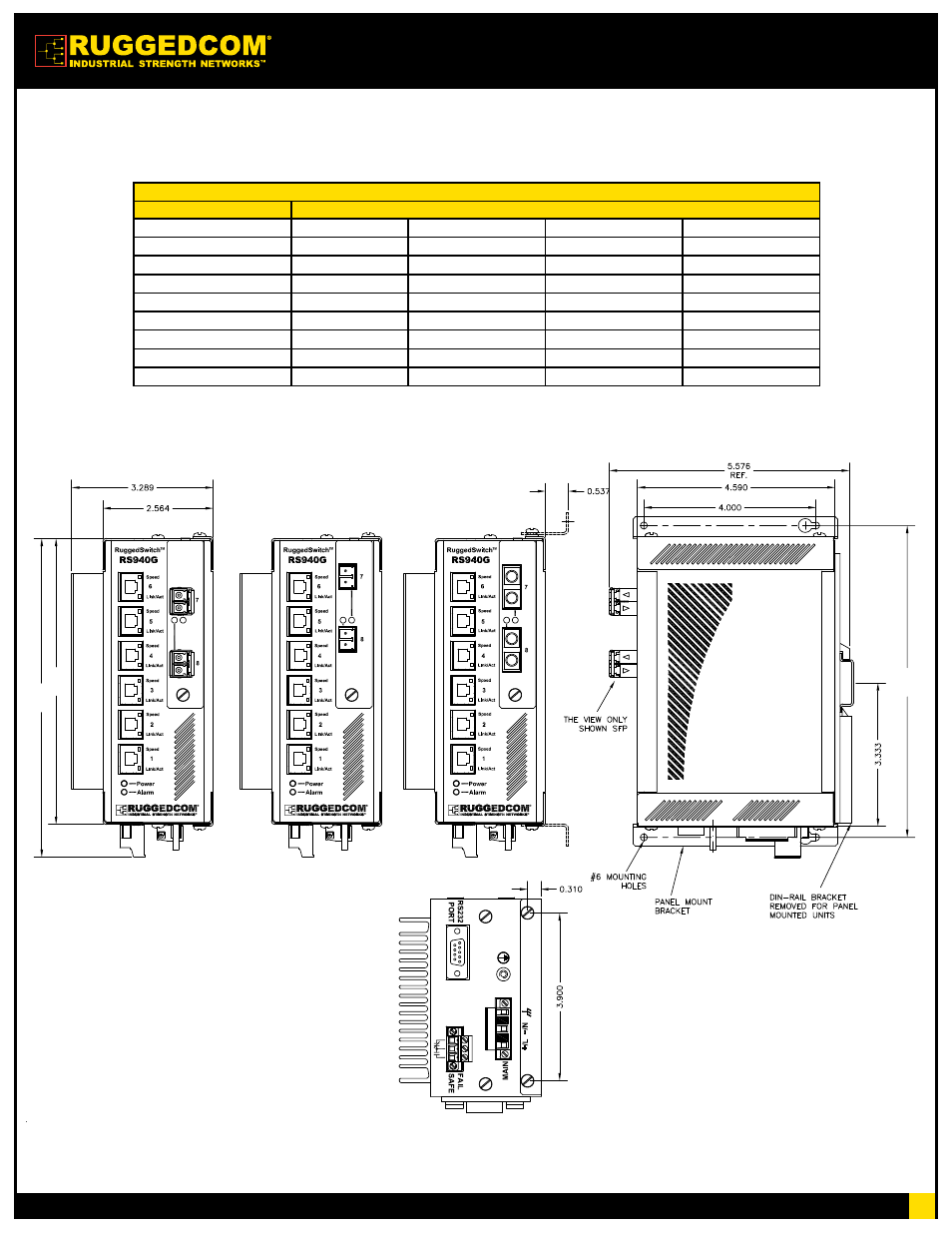

Fiber Specifications and Mechanical Drawing
Fiber Optical Specifications
Parameter
Fiber Port Type
Mode
Multimode
Singlemode
Singlemode
Singlemode
Connector
LC, LC-SFP
SC, LC, LC-SFP
SC, LC, LC-SFP
LC-SFP
Typical Dist.
500m
10km
25km
70km
Optical Wavelength (nm)
850
1310
1310
1550
Cable SizeCore/Cladding (um)
50/125 or 62.5/125
8/125 or 9/125
8/125 or 9/125
8/125 or 9/125
TX Power (Min/Max) (dBm)
-9.5/-4
-9/-3
-7 / 3
0 / 5
RX Sensitivity (dBm)
-20
-22
-26
-23
RX Saturation (dBm)
0
-3
-3
0
Typical Budget (dB)
14
17
19
25
7.44
6.73
7.33
