6

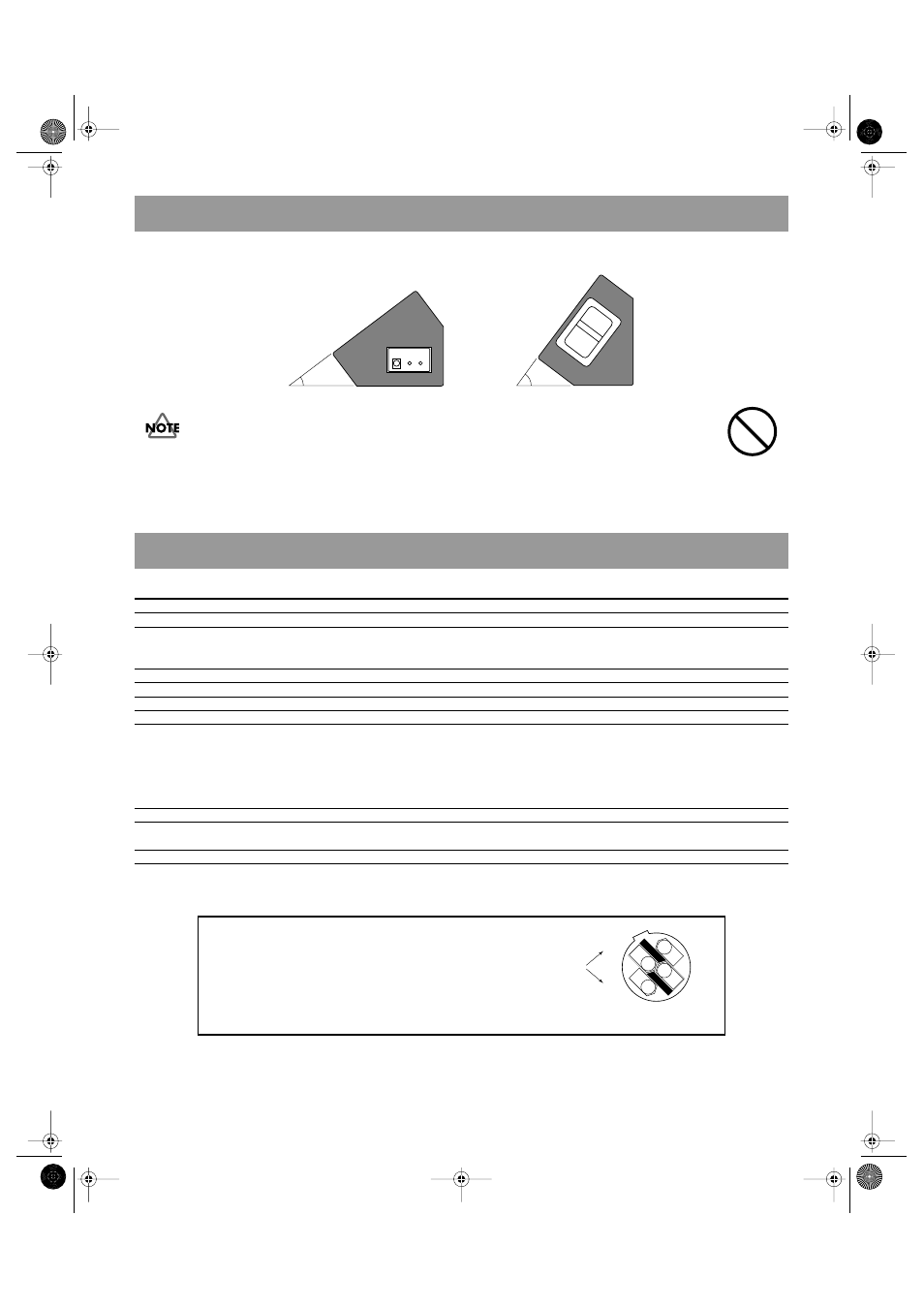

When used as a stage floor monitor, the SSM-151 can be set at two different floor angles.

When setting up monitor speakers, be sure to observe the following points in order to
prevent the speakers from falling over (exercise caution particularly when using the 55-
degree setup, as the speakers may topple more easily in this orientation than when set up
35 degrees).

* Do not sit or place feet on the speakers.
* Do not place the speakers on unstable or inclined surfaces.
* Do not use the speakers as steps.

* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

Model

SST-151

SST-251

SSW-351

SSM-151

Enclosure

Bass-reflex

Bass-reflex

Bass-reflex

Bass-reflex

Speakers

12" Woofer + Horn Tweeter

15" Woofer + Horn Tweeter

18" Woofer

12" Woofer + Horn Tweeter

Power Handling

(rated)

*1

150 W

200 W

200 W

150 W

(max)

450 W

600 W

600 W

450 W

Frequency Response

58 Hz–16 kHz

52 Hz–20 kHz

45 Hz–1.5 kHz

58 Hz–16 kHz

Nominal Impedance

8 ohms

8 ohms

8 ohms

8 ohms

Sensitivity (1 W/1 m)

98 dB

100 dB

97 dB

98 dB

Crossover Frequency

4 kHz

1.5 kHz

200 Hz

4 kHz

Connectors

(1/4" phone)

Parallel Inputs x 2

Parallel Inputs x 2

Parallel Inputs x 2

Parallel Inputs x 2

Direct Input x 1

High Freq Output x 1

(Speakon® NL4MP)

Parallel Input x 1

Parallel Input x 1

Parallel Input x 1

Parallel Input x 1

High Freq Output x 1

Weight

20 kg/44 lbs

31.8 kg/70 lbs

39.5 kg/87 lbs

14.5 kg/32 lbs

Dimensions

407 x 407 x 642 mm

572 x 407 x 762 mm

572 x 559 x 838 mm

620 x 400 x 360 mm

(W x D x H)

16 x 16 x 25-1/4 inches

22-1/2 x 16 x 30 inches

22-1/2 x 22 x 33 inches

24-7/16 x 15-3/4 x 14-3/16 inches

Accessory

OWNER’S MANUAL

OWNER’S MANUAL

OWNER’S MANUAL

OWNER’S MANUAL

*1

EIA RS426A

Setting Up the SSM-151

55

°

35

°

Specifications

Pin Diagram of Speakon® NL4FC

* A Speakon® male connectors used by this device is

sold separately.

2-

2+

1+

1-

SIGNAL TO

SPEAKER SYSTEM

NL4FC PIN DIAGRAM
