How big is the scanner, 18” radome scanner, 24” radome scanner – Raymarine Radome Scanners User Manual
Page 11
Installation
7

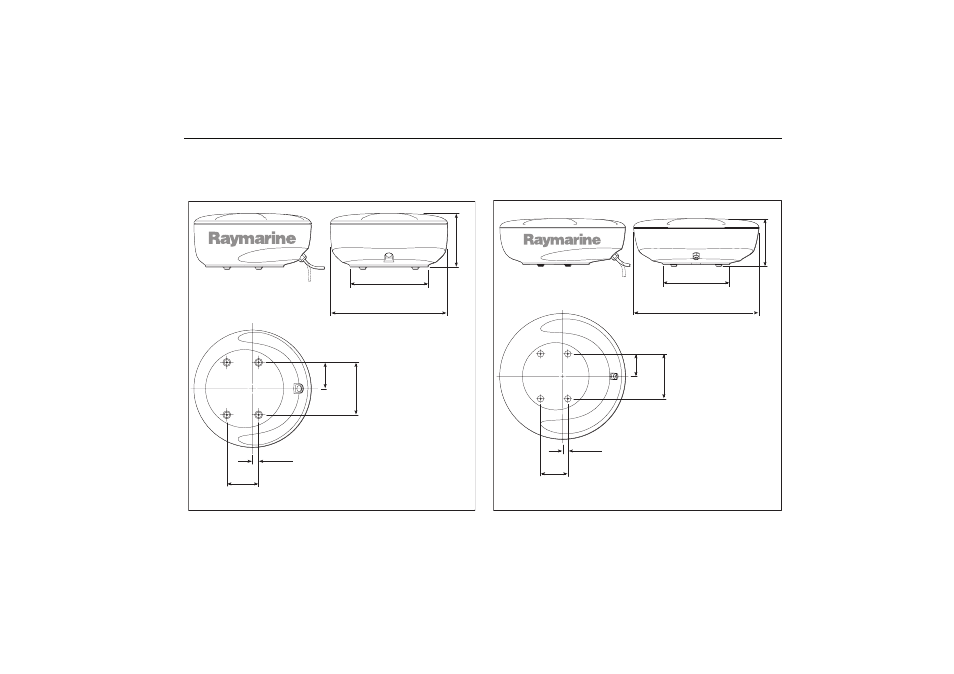

How big is the scanner?
18” Radome scanner
24” Radome scanner
346 mm (13.62 in)
diameter
521 mm (20.5 in)
diameter
233 mm
(9.17 in)
D8566-1
247 mm (9.7 in)
116.5 mm
(4.58 in)
141.5 mm
(5.57 in)
27.5 mm
(0.92 in)
D8567-1
247 mm (9.7 in)
233 mm
(9.17 in)
116.5 mm
(4.58 in)
141.5 mm
(5.57 in)
27.5 mm
(1.08 in)
346 mm (13.62 in)
diameter
652 mm (25.67 in)
diameter
