Publication 1783-UM002C-EN-P - April 2009 59
Chapter 2

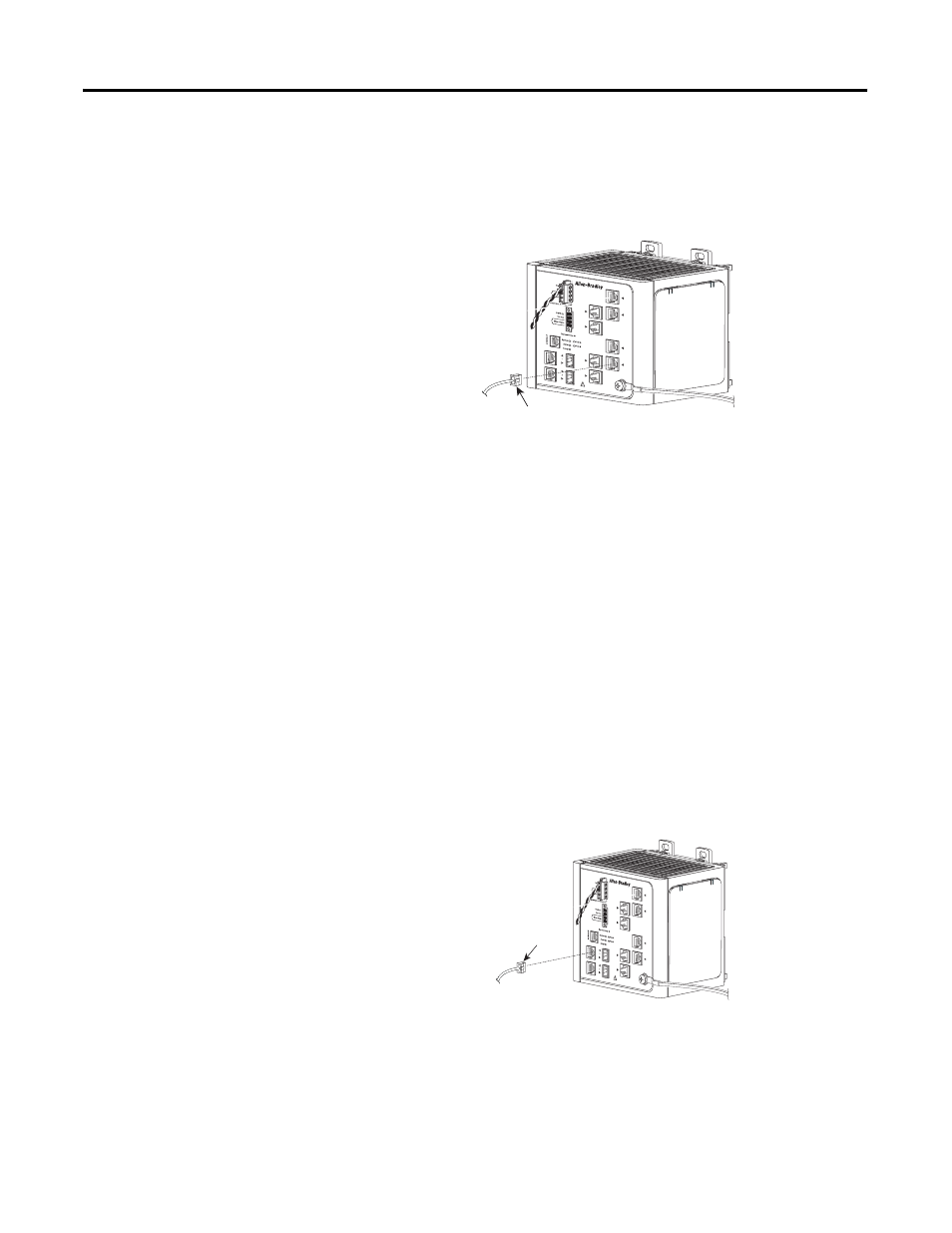

Connect to 10/100 Copper Ports
1. Insert a straight-through, twisted four-pair, Category 5e or better cable
with an RJ45 connector into the port.
2. Insert the other cable end into an RJ45 connector on the other device.
Connect to Dual-purpose Uplink (10/100/1000 and SFP Fiber) Ports
The switches have two dual-purpose uplink ports. Each dual-purpose uplink
port has a 10/100/1000 RJ45 connector for a copper interface, and a slot for
an SFP module.
Only one port of each dual-purpose port can be active at a time. If an SFP
module port is connected, the SFP module port has priority.
Connect to 10/100/1000 Ports
1. Insert a straight-through, twisted four-pair, Category 5e or better cable
with an RJ45 connector into the port.
2. Insert the other cable end into an RJ45 connector on the other device.
VR
T
A
A
31795-M
To 10/100 ports
VR
T A
A
31795-M
To 10/100/1000 ports
