Raypak 240692 User Manual
Page 12
12
1.
Install the air temperature sensor across the air temperature sensor contacts (P2, pins 1 and 2; see the field
wiring diagram on pg. 13).
2.
On the mode selector switch (S3), set switch #2 (Outdoor Reset) to ON to disable the outdoor reset function.
(See pg.s 15 and 23).
3.
Set the Outdoor Cutoff Temperature to 200°F. (See pg. 21.)
4.
Adjust the setpoint to desired pool temperature. Thereafter, the controller will track the setpoint and fire
heater stages as necessary.
NOTE: The Outdoor Air Temperature sensor can be used as a replacement for the Water Temperature Sensor, as both
sensors are indicated.

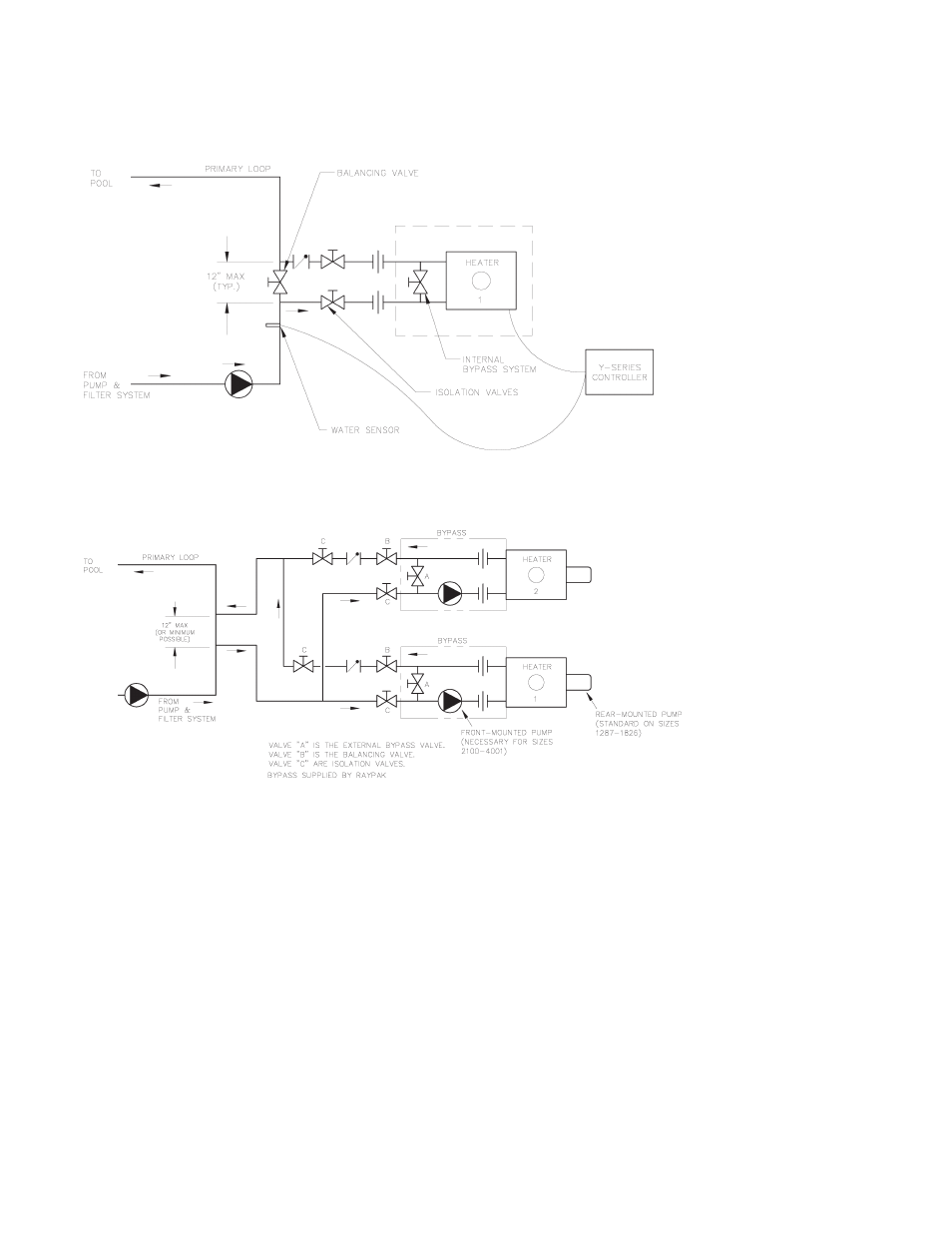

WATER TEMPERATURE SENSOR INSTALLATION
POOL HEATING INSTALLATIONS
Fig. # 9498
Fig. # 9499
