UNPACKING AND CHECKING CONTENTS
LIST OF LOOSE PARTS FOR TABLE SAW

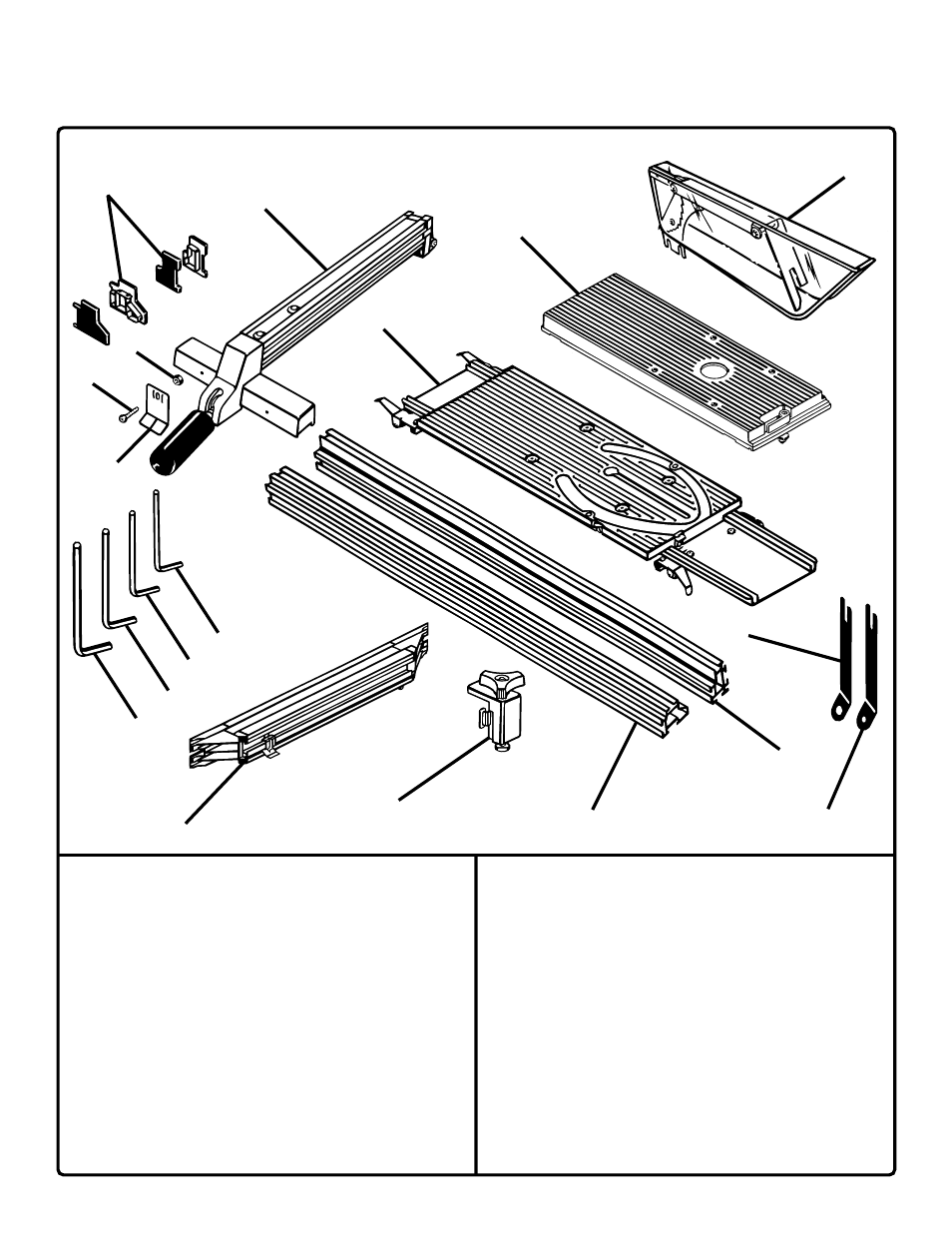

Figure 3: Loose Parts
Key
No.
Description Quan.
1 Rip Scale Indicator .......................................... 1
2 Screw .............................................................. 1
3 Hex Nut ........................................................... 1
4 End Plug ......................................................... 4
5 Rip Fence ........................................................ 1
6 Sliding Miter Table .......................................... 1
7 Accessory Table ............................................. 1
8 Blade Guard With Riving Knife
And Anti-Kickback Pawls ................................ 1
9 Large wrench .................................................. 1
10 Small wrench .................................................. 1
11 Rear Rail ......................................................... 1
12 Front Rail ........................................................ 1
13 Miter Fence Holder With Adjusting Clamp ...... 1
14 Miter Fence With Miter Indicator ..................... 1
15 3/32 in. Allen Wrench (Included) ..................... 1
16 1/8 in. Allen Wrench (Included) ....................... 1
17 5/32 in. Allen Wrench (Included) ..................... 1
18 3/16 in. Allen Wrench (Included) ..................... 1
19 Instructional Video (Not Shown)
20 Operator's Manual (Not Shown)
21 Warranty Registration Card (Not Shown)
22 Authorized Service Center Listing (Not Shown)
