FEATURES
GETTING TO KNOW YOUR SAW
Your saw is designed to perform as a versatile, accurate,
precision cutting tool that is easy to operate.
It is equipped with the following features for convenience,
ease of use, and high-quality performance:
• a combination saw blade
• a bevel indicator to set the exact angle of the blade,
with locking lever
• an adjustable and reversible sliding miter table
• an adjustable miter fence with miter indicator
• an adjustable accessory table
• an adjustable rip fence with scale indicator
• an adjustable riving knife (splitter) and blade guard
with anti-kickback pawls
• front and rear guide rails with an easy-to-read
scale on front rail
• a dust exhaust that can be adapted to a standard
shop vacuum
• blade adjusting handle to set depth of cut
• switch with lockable cover plate to help prevent
unauthorized use
These features provide ease of cutting with all types of wood.
WARNING:
Before attempting to use your table saw, familiarize
yourself with all operating features and safety
requirements.

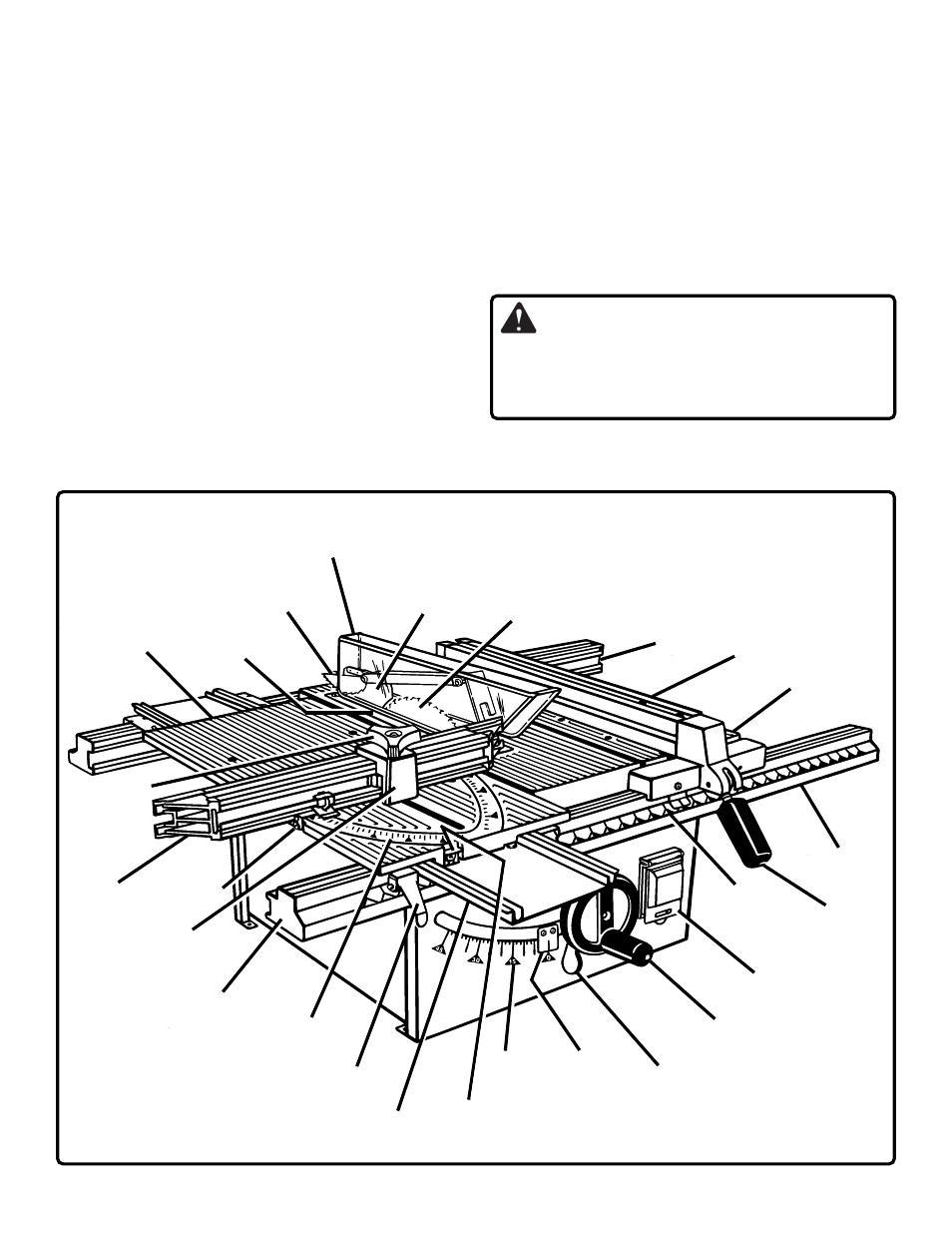

Figure 4: Table Saw Features
ADJUSTING
CLAMP
QUICK-STOP
END PLUG (4)
MITER SCALE
MITER
LOCKING CLAMPS
LOCKING
HANDLE
FRONT RAIL
SCALE
SLIDING
MITER TABLE
THROAT
PLATE
ANTI-KICKBACK
PAWLS
BLADE
GUARD
RIVING
KNIFE
SAW
BLADE
REAR
RAIL
RIP
FENCE
ACCESSORY
TABLE
BLADE
ADJUSTING HANDLE
BEVEL
LOCKING LEVER
MITER
FENCE
MITER
FENCE HOLDER
SWITCH WITH
LOCKABLE COVER
BEVEL
INDICATOR
BEVEL
SCALE
MITER
SLIDE LOCK
MITER
TABLE BASE
