Controls and Functions

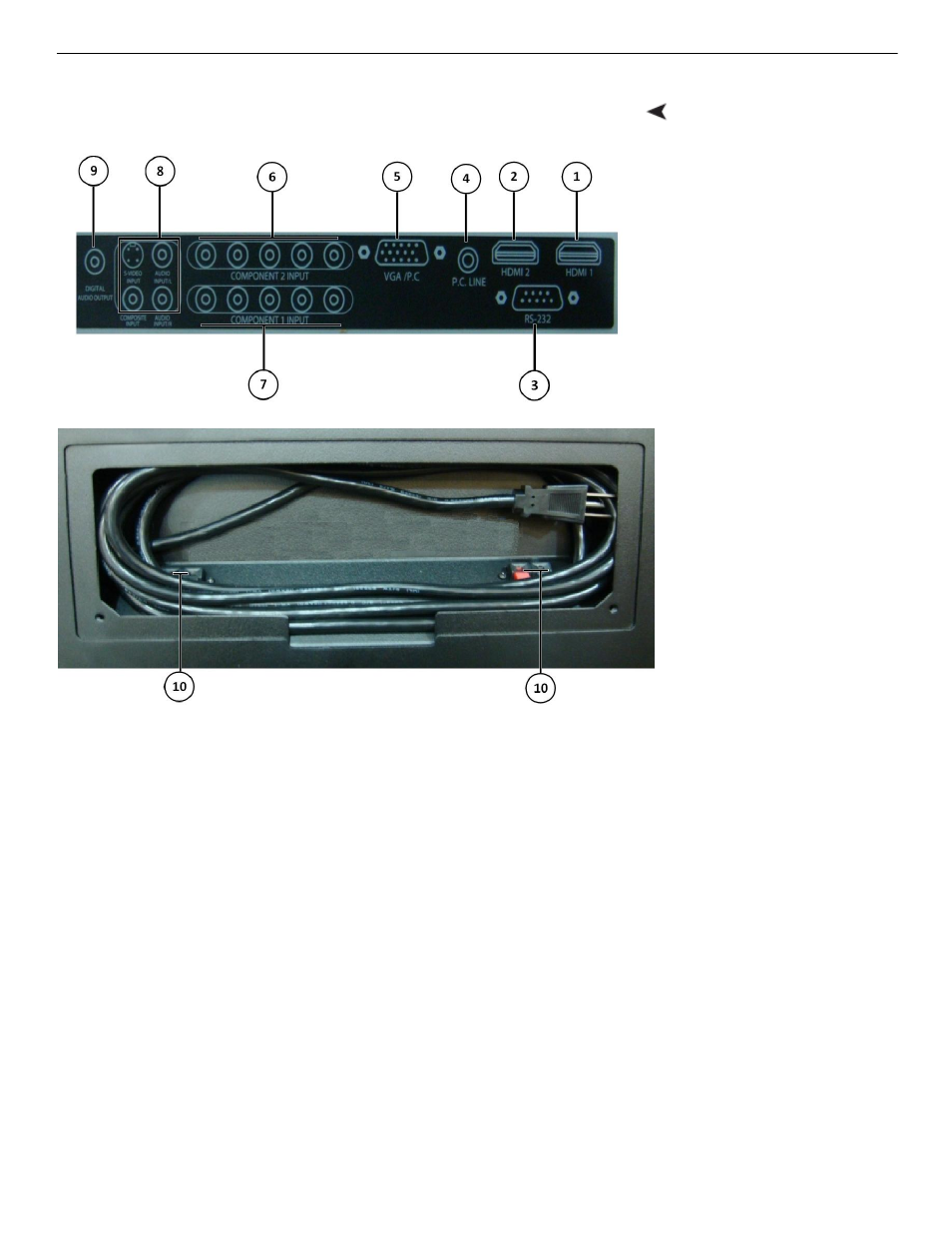

Figure 2-2 shows the Climate series Input and Output Interfaces.
Figure 2-2. Climate Series LCD Input/Output Interfaces
1. HDMI 1 (Digital)
HDCP-compliant digital video inputs for connecting an HDMI or DVI source.
2. HDMI 2 (Digital)
HDCP-compliant digital video inputs for connecting an HDMI or DVI source.
3. RS-232
A female, 9-pin D-sub connector for interfacing with a PC or home theater
automation/control system.
4. PC LINE
Connect the audio output from a personal computer here.
5. RGB/VGA P.C.
Provides a standard, 15-pin VGA-style connection to either an RGB or
component high-definition source, or to a personal computer.
6. COMPONENT 2
Standard- or high-definition (up to 1080p), YPrPb component video and stereo
audio input.
7. COMPONENT 1
Standard- or high-definition (up to 1080p), YPrPb component video and stereo
audio input. Also provides RGB input for RGBS sources.
Climate Series LCD Inputs
and Outputs
