17 114915

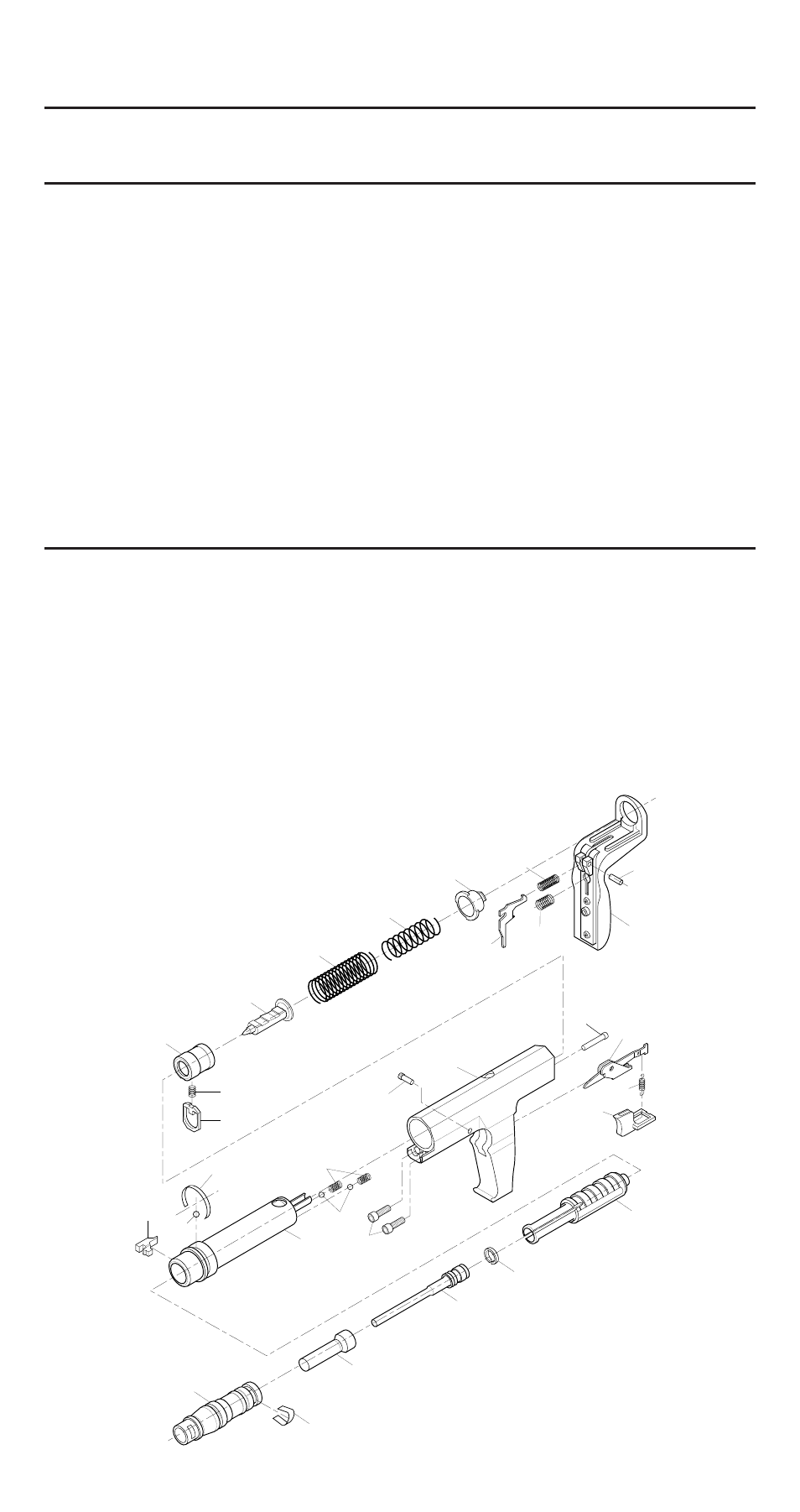

Parts List
Key Part
No. No. Description 493 498
18 305009 Base Plate 1
306009 Base Plate 1
19 301011 Shear Clip 1 1
20 301300 Sear Holder 1 1
21 301023 Sear 1 1
22 301024 Sear Spring 1 1
23 301904 Firing Pin Assembly 1 1
24 301026 Sear Holder Spring 1 1
25 301025 Firing Pin Spring 1 1
26 301028 Plug 1 1
27 301601 Rubber Pad 1 1
28 301844 Rocker Arm 1 1
29 301840 Spring 1 1
30 301843 Spring 1 1
31 301845 Rocker Arm Pin 1 1
ACCESSORIES
Part No. Description
301053 Spall Shield - Model 493 1
306053 Spall Shield - Model 498 1
056415 Goggles 1 1
056486 Brush, 5/8 in. 1 1
302001 Hex Wrench, 5 mm 1 1
IMPORTANT: Do not use key numbers when ordering service parts. Always order com-
ponents by part number and description. Include Model and Serial number of tool.
1
2
3
18
4
5
6 7
8
9
10
11
12
13
14
16
15
17
19
20
21
22
23
24
25
26
27
31
28
30
29
