11

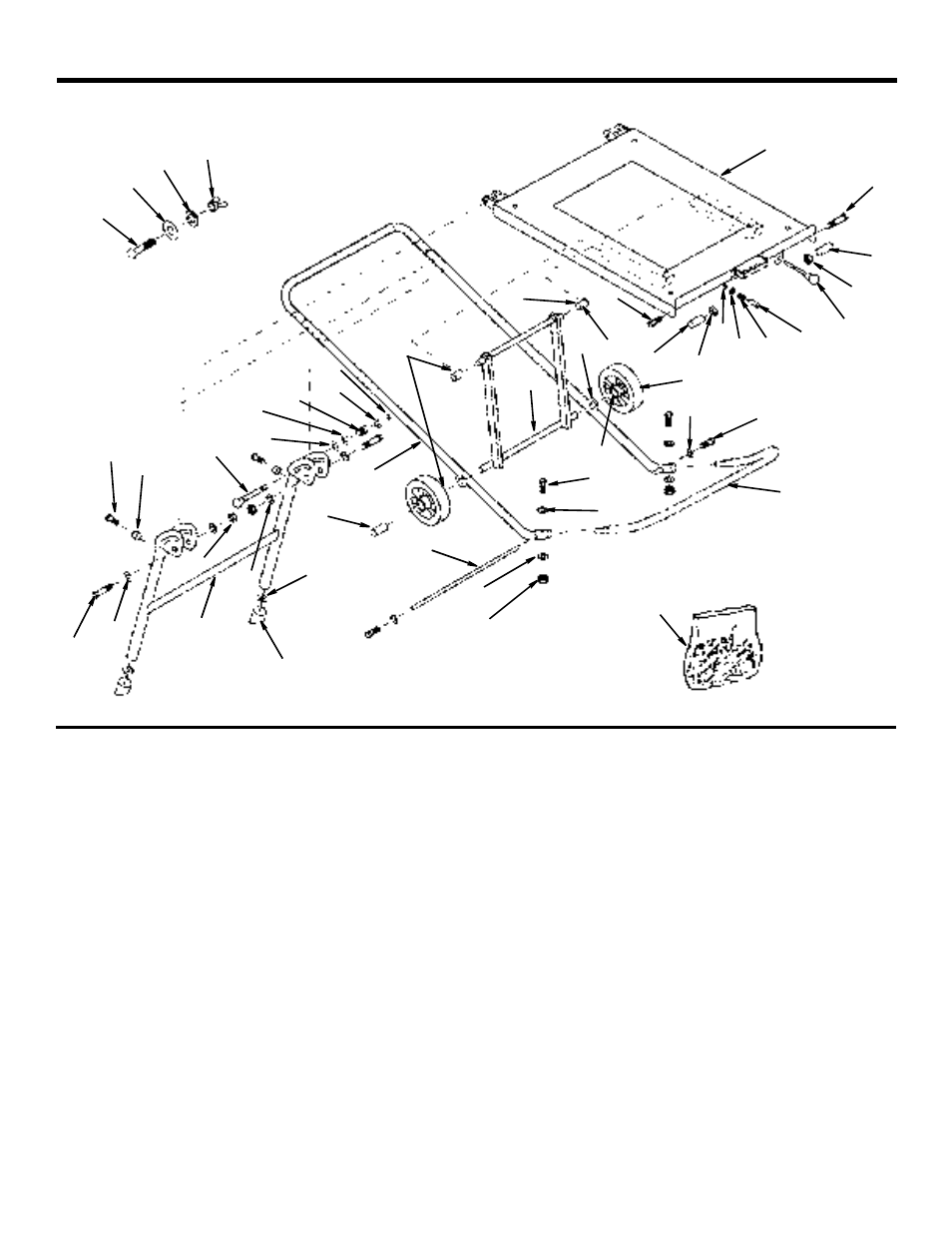

EXPLODED VIEW/REPAIR PARTS
Work-N-Haul IT TM Two Wheel Work Stand Model AC9930
RIDGID parts are at www.ridgidparts.com
17
2
4
5
19
7 9
10
11
12
1
8
3
15
6
14
13
30
18
22
25
27
26
16
24
28
21 20
23
31
32
33
34
35
36
Lubricate if
Necessary
*
*
*
*
39
40
41
38
15
29
24
38
37
37
36
20
1 747-01 Table
2 747-02 Locking Pin
3 747-03 Metal Sleeve
4 747-04 Spring
5 747-05 Washer (10 ID)
6 747-06 E Clip
7 747-07 Wheel
8 747-08 Washer (13 ID)
9 747-09 Table Support
10 747-10 Nylon Roller
11 747-11 Hex Head Bolt (M6 x 15)
12 747-12 Washer (6 ID)
13 747-13 Axle Shaft
14 747-14 Hex Head Bolt (M6 x 41)
15 747-15 Contoured Washer (6 ID)
16 747-16 Metal Sleeve
17 747-17 Front Foot
18 747-18 Main Frame
19 747-19 E Clip
20 747-20 Washer (8 ID)
21 747-21 Spring
22 747-22 Locking Pin
23 747-23 Hex Head Bolt (M8 x 62)
24 747-24 Washer (8 ID)
25 747-25 Hex Nut (M8)
26 747-26 Rear Support
27 747-27 Washer (10 ID)
28 747-28 Cap Molded End
29 747-29 Foot
30 747-30 Round Head Bolt (M8 x 20)
31 747-32 Nylock Nut (M6 x 6)
32 747-33 Carriage Bolt (1/4-20 in. x 3 in.)
33 747-34 Washer (1/4 in. ID x 1.5 mm)
34 747-35 Lockwasher (1/4 in. ID)
35 747-36 Wing Nut (1/4 in.)
36 747-38 Phillips Head Bolt (M5)
37 747-39 Rubber-Stop
38 747-40 Hex Nut (M5)
39 747-41 Nylon Washer
40 828809 Bag Loose Parts
983000-412 Operator's Manual
