Page 3
3
BALANCED OUTPUTS
RCA OUTPUTS
R
L
R
L
PREAMPLIFIER / PRÉAMPLIFICATEUR / VORVERSTÄRKER / PREAMPLIFICATORI / PREAMPLIFICADOR / VOORVERSTERKER
LEFT INPUT
UNBALANCED
BALANCED
RIGHT INPUT
UNBALANCED
BALANCED
LEFT SPEAKER
RIGHT SPEAKER
UNBALANCED
BALANCED
POWER
WARNING:
TO REDUCE THE RISK OF FIRE
OR ELECTRICAL SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE.
POWER AMPLIFIER
MODEL NO. RB-1090
POWER CONSUMPTION: 800W
RB-1090
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS:
RISQUE DE CHOC ELECTRIQUE–NE PAS OUVRIR

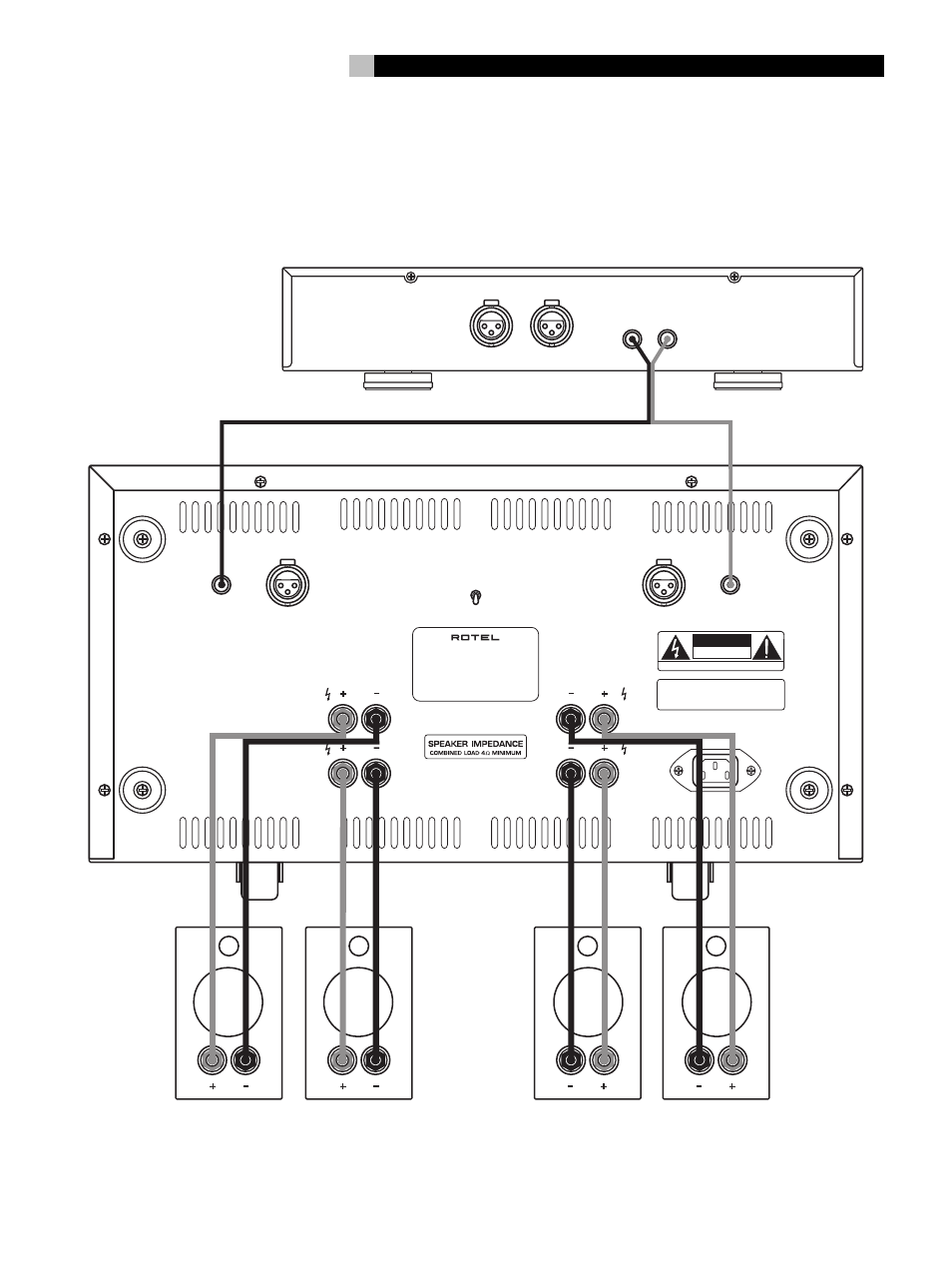

2: RCA Inputs & Dual Speakers / Entrées Cinch-RCA et sorties enceintes doubles
Anschlußdiagramm (Cinch-Eingänge und zwei Lautsprecherpaare)
Ingressi RCA e Seconda coppia di diffusori
Entradas RCA y Conexión de dos parejas de Cajas Acústicas
De cinch- en luidsprekerverbindingen
