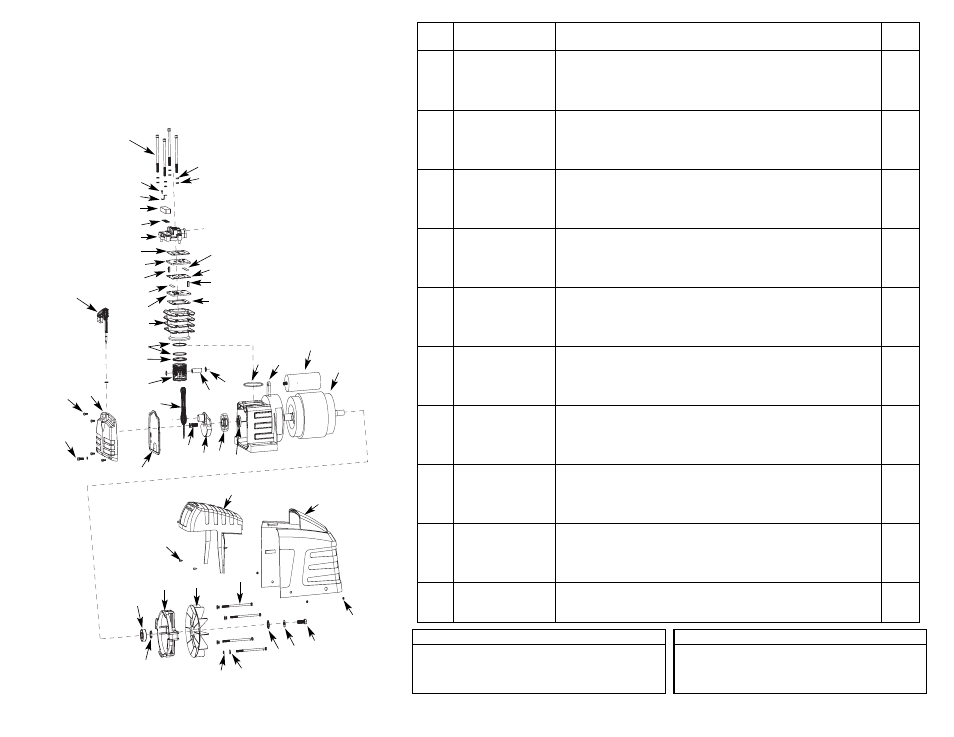

REPAIR PARTS - PUMP
For Repair Parts, Call 1-800-4-RIDGID
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as shown in parts list
1
2
3 4
5
6
7
8
9
14
10
14
12
10
12
13
15
11
16
17
18
19
20
21
22
23 24
25
26
27
28 29 30
31 32
33
34
35
36
37 38
39
40 41
43 42
44
45
46
47
48
Ref. Part
No. Number Description Qty
1 ▲ Socket head cap screw M6 - 1.25 x 110 mm - cylinder head 4
2 ▲ Lock washer M6 4
3 ▲ Flat washer M6 4
4 ■ Self-tapping Phillips head screw 3.5 mm OD x 12 mm 1
5 ■ Air filter retainer clip 1
6 ■ Air filter 1
7 ■ Air filter screen 1
8 HL007600AV Cylinder head 1
*9 ● Head gasket 1
10 ● Valve plate 2
*11 ● Center valve gasket 1
*12 ● Valve 2
*13 ● Cylinder gasket 1
14 ● Roll pin XC5.4 mm x 7 mm - valve plate 2
15 HL007500AV Cylinder 1
16 ◆ ▼ Compression ring 2
17 ◆ ▼ Oil control ring 1
18 ▼ Piston 1
19 ▼ Wrist pin 1
20 ▼ Wrist pin retainer 2
21 ▼ Connecting rod 1
22 HL012000AV Dipstick assembly with o-ring 1
23 † Socket head cap screw M4-1.25 x 14 mm - front cover 4
24 † Crankcase front cover 1
25 HL012100AV Oil drain with o-ring - M5-1.25 x 10 mm 1
26 HL009100AV Crankcase cover gasket 1
27 †† SHCS M8-1.25 x 25 mm L.X. thread - eccentric 1
28 †† Eccentric counter weight 1
29 †† Bearing - pump crankcase 1
30 †† Oil seal 20 mm x 35 mm x 7 mm - crankcase 1
31 ● Cylinder o-ring 65 mm x 2.65 mm 1
32 †† Crankcase 1
33 †† HL008500AV Motor run capacitor 1
*34 †† Motor 1
*35 †† Motor bearing 1
*36 †† Motor bearing retainer 1
37 †† Motor rear end bell frame 1
38 †† ‡‡ Motor fan 1
39 †† Hex head cap screw M5 - 1.25 x 11.5 mm - motor bolts 4
40 †† Flat washer M5 4
41 †† Lock washer M5 4
42 †† ‡‡ Lock washer serrated 14.5 x 24 mm 1
43 †† ‡‡ Flat washer - M8 1
44 †† ‡‡ Hex head cap screw M8 - 1.25 x 30 mm - fan bolt 1
45 HL012800AV Self tapping Phillips head screw 4.2 x 10 mm (screw kit) 4
46 HL011100AV Pump head shroud 1
47 HL011200AV Motor shroud 1
48 HL012900AV Self-tapping Phillips head screw M6 - 19 mm (screw kit) 4
REPLACEMENT PARTS KITS
▲ HL011500AV Pump cylinder bolt kit
■ HL011600AV Filter/screen kit
● HL011700AV Valve plate/gasket kit
◆ HL011800AV Ring kit
REPLACEMENT PARTS KITS (Continued)
▼ HL011900AV Piston assembly
† HL012200AV Crankcase cover kit
†† HL012400AV Motor kit
‡‡ HL012500AV Motor fan kit
