RIDGID OL90150 - Manual

OL90150
Compressor - Electric
Ridge Tool Company/Elyria, Ohio, U.S.A.
1/05
Printed in U.S.A. 999-998-156.10
2
3
4
5
1
6
8
Unit
7
11
14
10
13
12
9
15

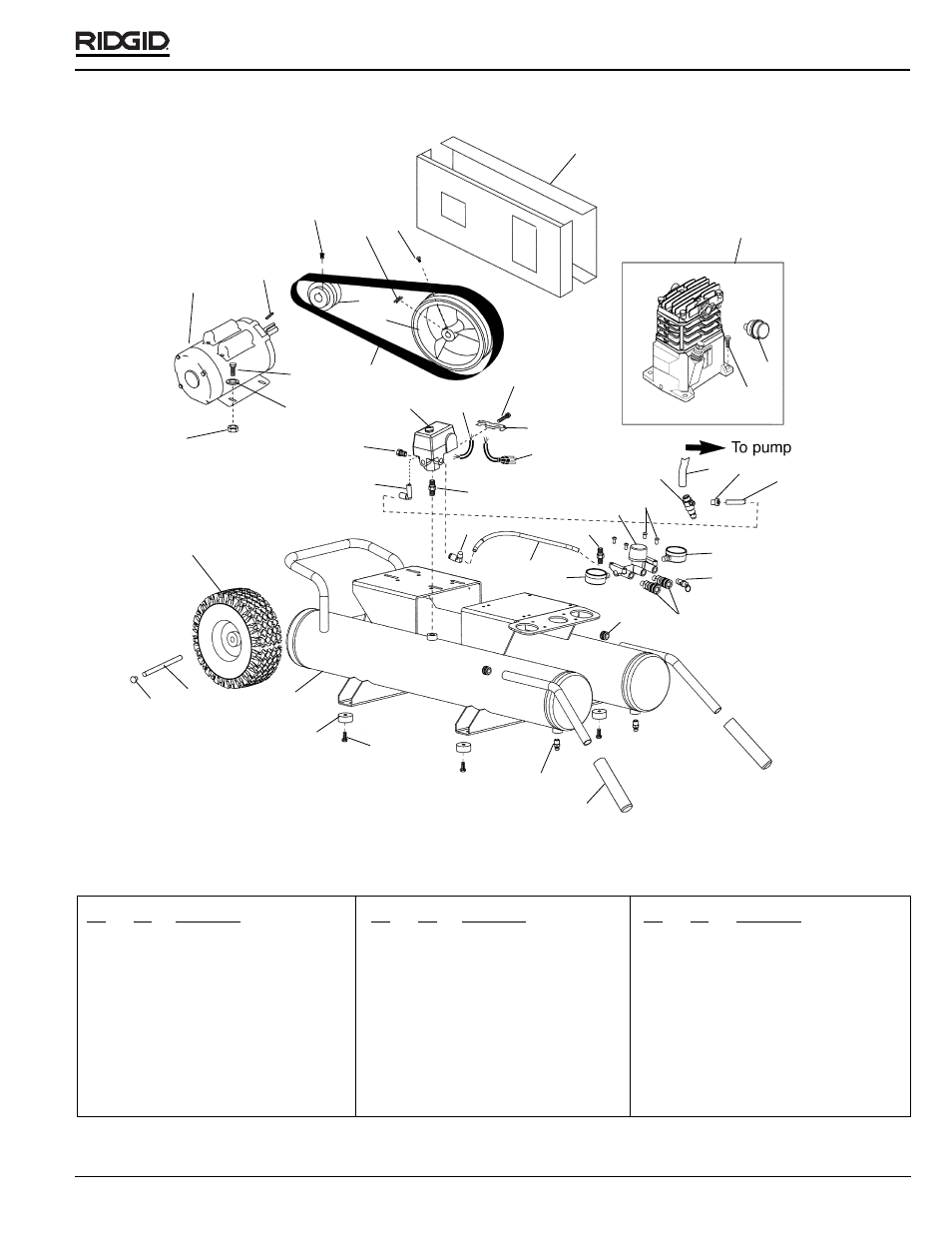

Ref. Catalog
No. No. Description
1 20433 Motor
2 20418 Key
3 18093 Screw Set 1 /
4 ″
4 20403 Belt Guard
5 18088 Key, 3 /
16 ″
6 17998 3 /
8
″ Set Screw
7 20408 Pulley
8 18078 Flywheel
9 20413 Belt
10 20423 Motor Bolt (4)
11 18113 Washer 5 /
16
″ (4)
12 20428 Nut, 5 /
16
″ (4)
13 17888 1 /
4
″ Plug
14 17908 Pressure Switch
15 20398 Motor Cord
Ref. Catalog
No. No. Description
16 17753 Strain Relief Screw
17 20393 Strain Relief
18 20388 Power Cord
19 17883 Unloader
20 17898 Nipple
21 17793 Regulator
22 20458 Screw, Torx 1 /
4
″ x 20 x 1 /
2
23 20368 Check Valve
24 20373 Exhaust Tube
25 20378 Push in Fitting
26 20383 Unloader Tube
27 17773 Tank Gauge
28 17798 Safety Valve
29 17873 Coupler (2)
30 20453 Plug, Handle (2)
Ref. Catalog
No. No. Description
31 17893 3 /
8
Push To Connect
32 17878 Outlet Gauge
33 20363 Handle Grip (2)
34 20358 Drain Valve (2)
35 18038 Screw (4)
36 17853 Rubber Foot (4)
37 20353 Tank
38 18048 Plug, Axle (2)
39 18043 Axle Rod
40 18053 Wheel
41 20443 Pump
42 20448 Filter
43 20438 Screw, Tapping
44 20788 Tube
45 17868 Elbow
NOTE: Order parts by Catalog Number Only
DO NOT order by Reference Number.
25 24
42
41
18
16
26
23
17
20
45
21
22
32
44
19
29
28
27
30
31
36
35
33
34
39
38
40
37
43
