Repair parts - whole unit

background image

OL50135AL

ALUMINUM TWIN
STACK PORTABLE
AIR COMPRESSOR

Core Manual Reference: IN6193

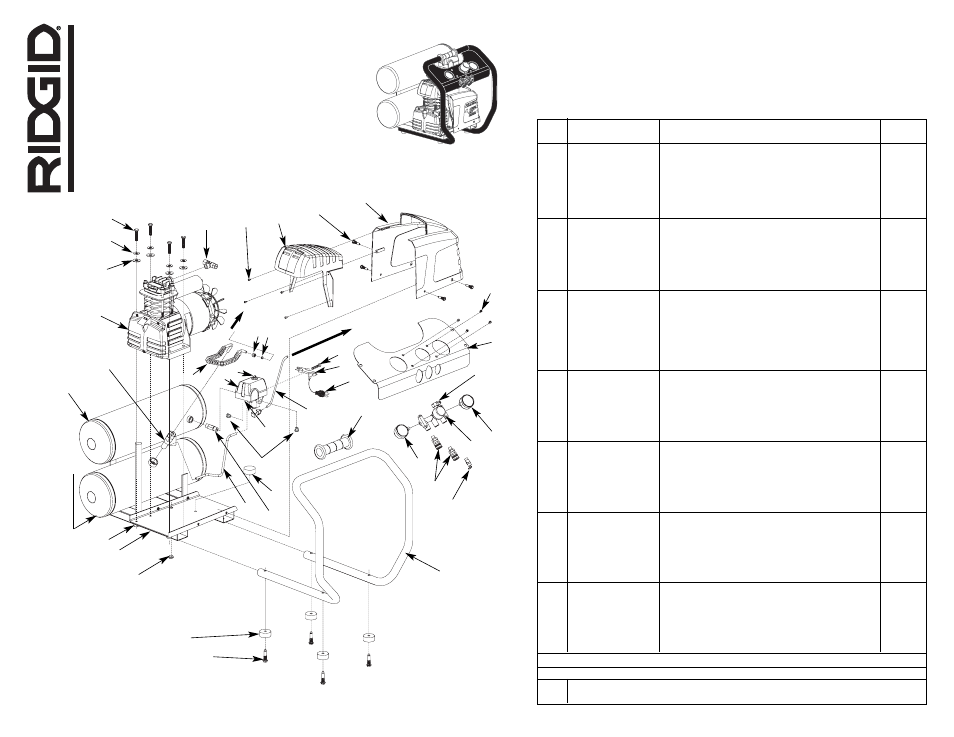

REPAIR PARTS - WHOLE UNIT

For Repair Parts, Call 1-800-4-RIDGID

Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as shown in parts list

Ref.

Part

No.

Number

Description

Qty

1

HL015300AV

Self-tapping HHCS

(M10 x 40)

4

2

N/A

Lock washer

(metric 8.2)

4

*3

HL167700AV

Tee Fitting Assembly

1

4

N/A

Phillips head screw

(M 4.2 x 10mm)

4

5

HL011100AV

Pump head shroud

1

6

N/A

Phillips HHCS

(M6 x 19mm)

4

7

HL011200AV

Motor shroud

1

8

HL300001AV

Oil lube pump

1

9

AR057800AV

Twinstack tank

1

*10

CV223800AV

Check valve

1

11

HL009700AV

Hex nut

1

12

HL009800AV

Ferrule

2

13

ST185600AV

Handle Grip

1

14

Exhaust tube

1

15

HL015900AV

Pipe nipple 1/4” NPT

1

16

HL016000AV

Unloader tube

(includes nuts & ferrules)

1

*17

CW213300AV

Pressure switch (includes pressure

1

switch cover and unloader valve)

18

CW217700AV

Unloader Valve

1

*19

CW211700AV

Pressure switch cover

1

20

ST209800AV

Strain relief screw

1

21

CW209600AV

Strain relief

1

22

EC012602AV

Cord

1

23

V-215105AV

150 PSI safety valve

1

24

ST022500AV

1/4” - 18 NPT pipe plug

2

25

Control panel tube (includes tube inserts)

1

26

Elbow compression fitting

(includes nut & ferrule)

2

27

HL015400AV

Grommet

1

28

ST192200AV

Rubber foot

4

29

ST073276AV

Self-tapping HHCS

4

30

N/A

Flat washer

4

31

ST192100AV

Motor support pad

1

32

N/A

Hex nut (8mm)

3

33

ST071626AV

Button head torx screw

4

*34

WL024501AV

Manifold assembly (Includes items 35, 36, 37)

1

*35

HF203300AV

1/4” Universal coupler

2

*36

GA016705AV

Outlet pressure gauge

1

*37

GA016709AV

Tank pressure gauge

1

38

N/A

Hex Nut

1

39

WL025800AV

Control Panel Bracket

1

40 WL025900AV

Roll

Bar

1

41

HL029200AV

Motorcord clamp

1

42

D-1403

Drain valve

1

* Considered wear items

N/A = Standard Hardware Item

REPAIR PARTS KITS

HL029100AV

Exhaust tube kit (without check valve)

ST170400AV

Control panel tube kit (includes inserts, nuts, ferrules)

To pump
head

To manifold

1

2

19

20

21

22

23

25

26

27

28

29

30

31

32

33

34

3

4

5

6

7

8

9

38, 10, 12

1112

13

14

15

16

17

35

36

37

24

39

40

18

41

42
