First time E8 Direct Driver install only
The ‘Found New Hardware’ Wizard will appear.
41. Select the ‘No, not this time’ option and click .
42. Verify the “Recommended” option is selected and click .
43. If using Windows XP, skip to step 45; otherwise click .
44. Click to install the driver.
45. Click to close the wizard.

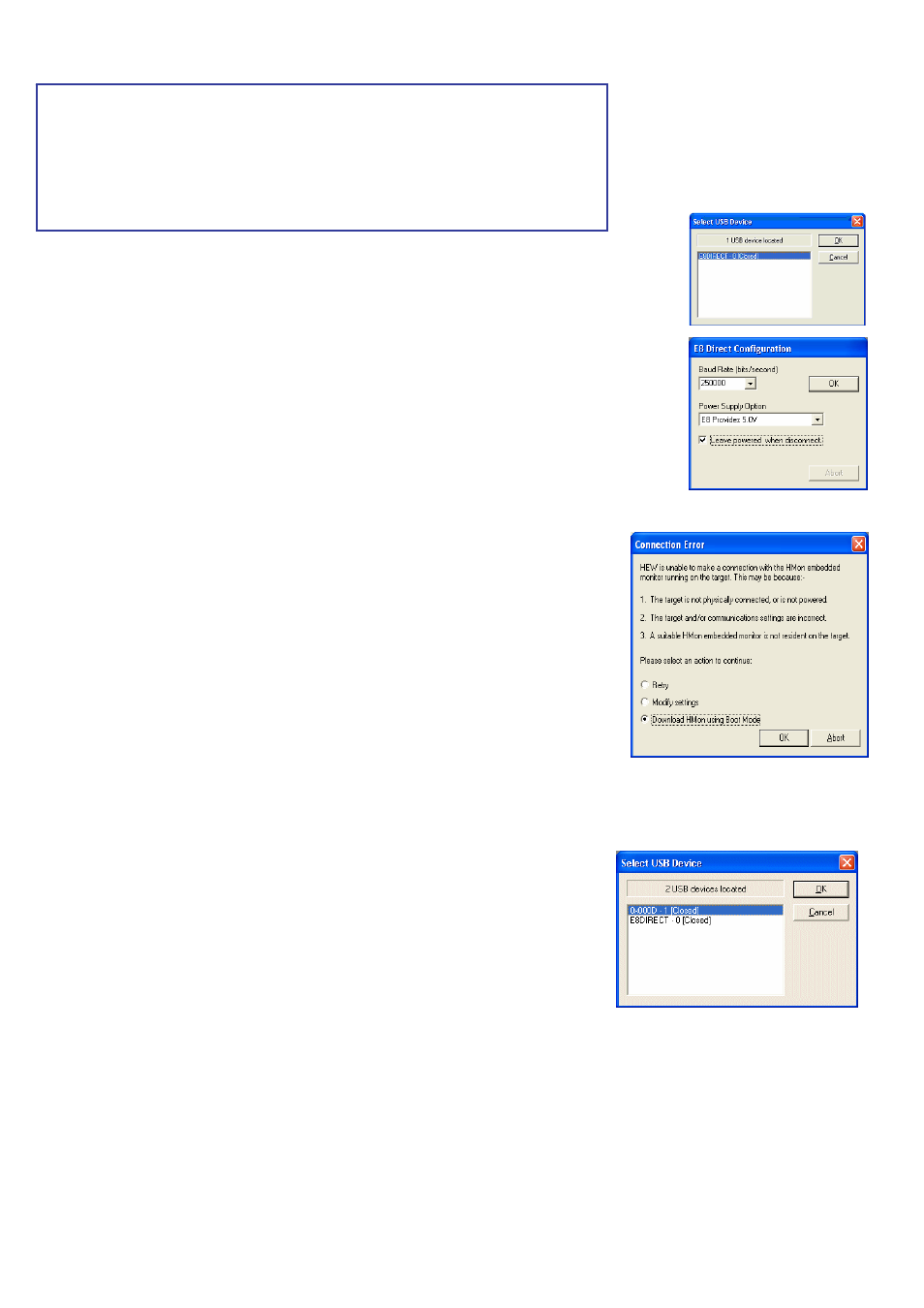

You may be prompted to select the USB device in a new dialog:
46. Click to select the ‘E8DIRECT’ USB device.
47. In the “E8 Direct Configuration” dialog box set the baud rate to 250000, select ‘E8 Provides 5V’ and ‘Leave powered
when disconnected.’ Click .
48. If this is the first time you have connected to the RSK and all connections are correct then the connection will be
completed, so go to step 63.
Note: It is possible that a working HMon project is not programmed in to the device.
49. If the connection fails then you will be returned to the same configuration screen with the ‘Abort’ button enabled. Click
.
50. In the “Connection Error” dialog box, select “Download HMon using Boot Mode” and click .
51. Click to any warning dialogs.
52. Click in Boot Mode pin configuration dialog.
Warning: Please ensure that the RSK is powered before connecting a USB cable to the USBDirect port.
Failing to do this may damage the board.
53. Connect another USB cable to the USB connector on the RSK and spare USB port on your PC.
Wait for the ‘Found New Hardware’ Wizard to appear. Follow the steps below to install the driver.
Note that administrator privileges are required for a Windows™ 2000/XP machine.
54. For Windows XP Select the ‘No, not this time’ option and click .
55. Verify the “Recommended” option (USBDirect) is selected and click .
56. If using Windows XP, skip to step 58; otherwise click .
57. Click to install the driver.
58. Click to close the wizard.
59. Ensure ‘0x000D – 1 [Closed]’ is selected and click .
60. HMon will program the device in Boot mode and then swap back to User mode.
61. A debug connection will then be attempted. If the connection fails the “Connection Error” dialog will be re-displayed. Re-check the settings and connections and
try again.
62. When ‘Download Operation finished’ is displayed in the message pane at the bottom of the workspace, disconnect the USB cable from the ‘USB’ connector on the
RSK.
63. Right click on the projectname.abs file listed in the download modules area of the Workspace view and select ‘Download’.
