JUMPER

GV
24 VAC

120 VAC
60Hz

NOTE: To place vent damper in the
open position to allow burner
operation:
Turn the power off. Turn the damper
blade to fully open position (arrow
facing same direction as vent pipe).
Turn power on.

24 V AC

DAMPER POSITION
INDICATOR

DAMPER OPEN

DAMPER CLOSED

VENT DAMPER OPERATION

For safe, efficient operation, the vent damper and all flue-product-carrying areas of the appliance must

be checked annually, with particular attention given to deterioration from corrosion or other sources.
Check vent damper operation as follows:

1. When the boiler is off, check that the vent damper position indicator points to the closed position, below.

Fig. # 8181.0

VENT DAMPER POSITION INDICATOR

2. Turn the thermostat or controller up to call for heat and check that the vent damper indicator points to the

open position, below.

3. Turn the thermostat or controller down again and check that the vent damper position indicator returns to

the closed position.
THE VENT DAMPER MUST BE INSPECTED AT LEAST ONCE A YEAR BY A TRAINED, EXPERIENCED

SERVICE TECHNICIAN. THE NAME OF THE PERSON WHO ORIGINALLY INSTALLED YOUR VENT
DAMPER IS SHOWN ON THE INSTALLATION LABEL. DAMPER MUST BE IN OPEN POSITION WHEN
BOILER MAIN BURNERS ARE OPERATING.

FLAIR DAMPER

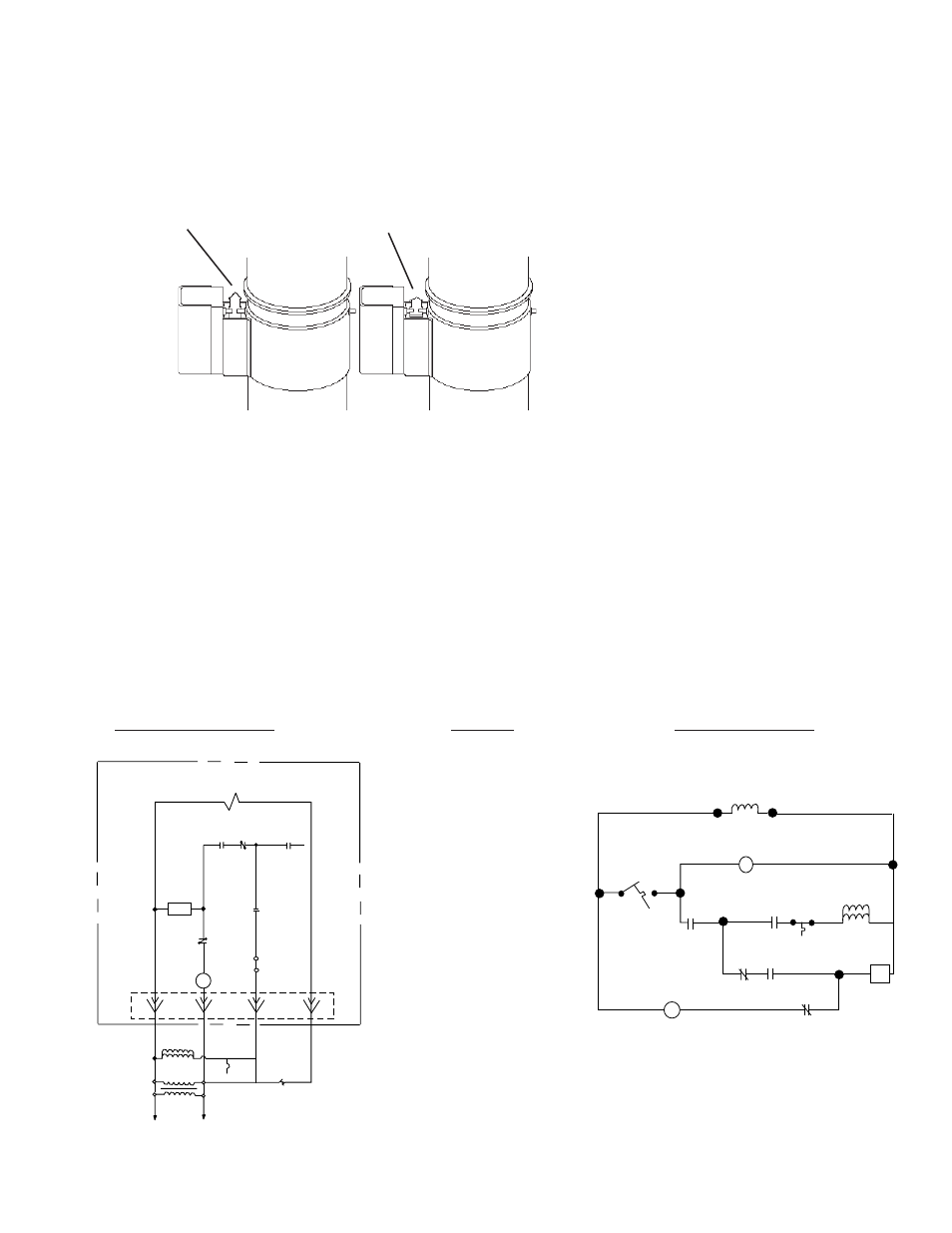

SYSTEM SCHEMATIC

LEGEND

LADDER DIAGRAM

M - Damper motor

R - Relay
ES - End switch
SS1 - N/C Safety switch
SS2 - N/O Safety switch

contacts

TR - Transformer 120/24V
HL - High limit
GV - 24V gas valve*
TH - Thermostat, heating,
low voltage
J - Jumper
Note: Circuit shown with
damper in closed
position, no call
for heat.

Fig. #9002

Fig. #9003
