L676-1 Sunrise Gas Fireplace
Regency L676-1 Sunrise Gas Fireplace

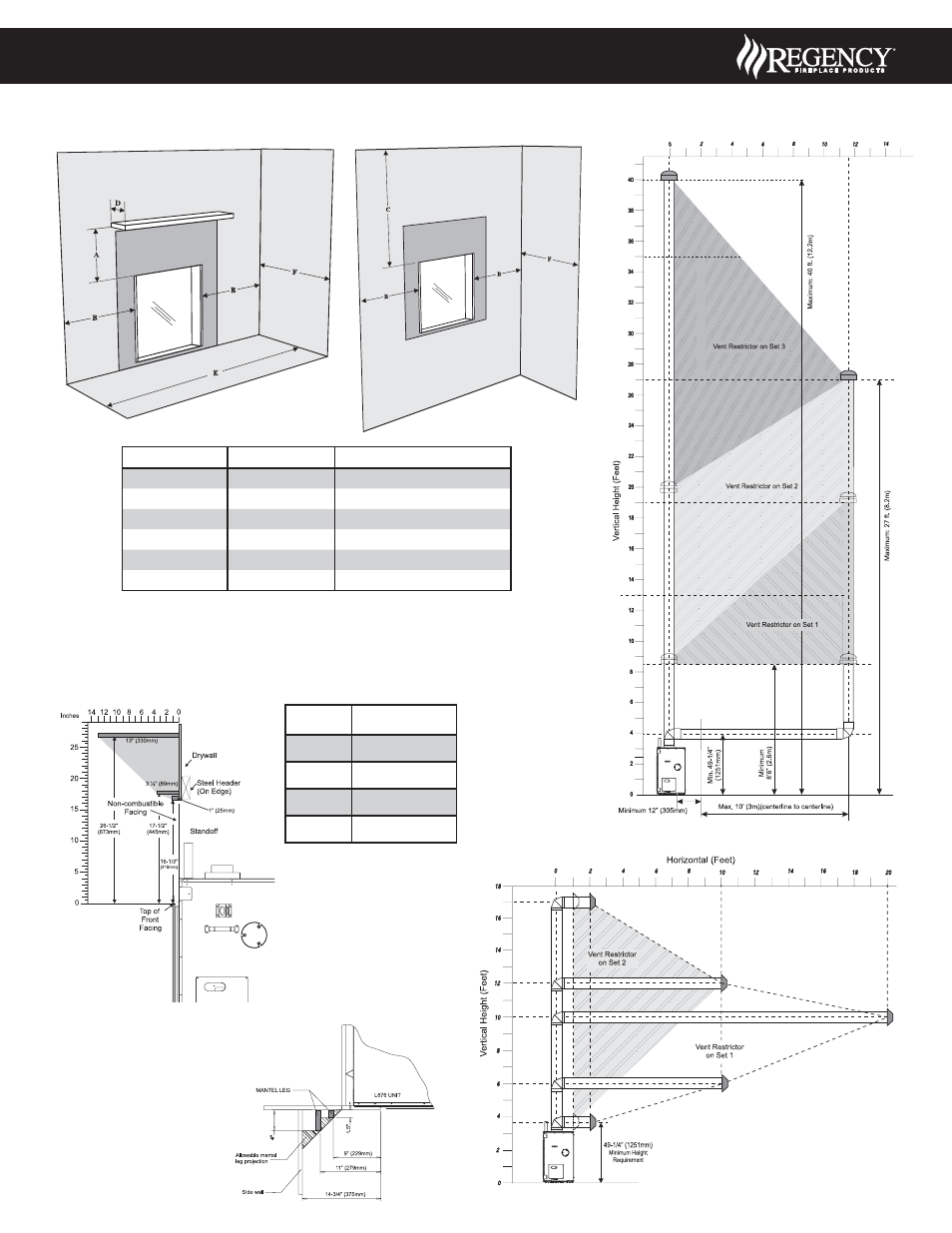

Clearance: Dimension Measured From:
A: Mantel Height 16-1/2” (419mm) Minimum
B: Sidewall 14-3/4” (375mm) Side of fi replace opening
C: Ceiling 52” (1321mm) Top of fi replace opening
D: Mantel Depth 13” (330mm) Maximum
E: Alcove Width 84” (2134mm) Sidewall to Sidewall (Minimum)
F: Alcove Depth 36” (914mm) Front to back wall (Maximum)
Clearance Requirements:
Combustible Mantels
Because of the extreme heat this fi replace emits, the mantel clearances
are critical. Combustible mantel clearances from top of the front facing
are shown in the diagram below. Mantel may be installed anywhere in the
shaded area or higher.
Mantel Leg
Clearances
Combustible mantel leg
clearances as per diagram.
Clearances are from the
fi nished edge of the fi replace
opening.
Mantel
Clearances From Top of
Fireplace Opening
A 31-1/16”
B 26-1/2”
C 17-1/2”
D 16-1/2”
Note:
A non-combustible mantel may
be installed at a lower height if
the framing is made of metal
studs covered with a non-com-
bustible board.
Ensure the paint that is used
on the mantel and the facing is
“heat resistant” or the paint may
discolour.
Vertical Terminations:
Horizontal Terminations:
Installed
Close to Floor
Installed Close
to Ceiling
