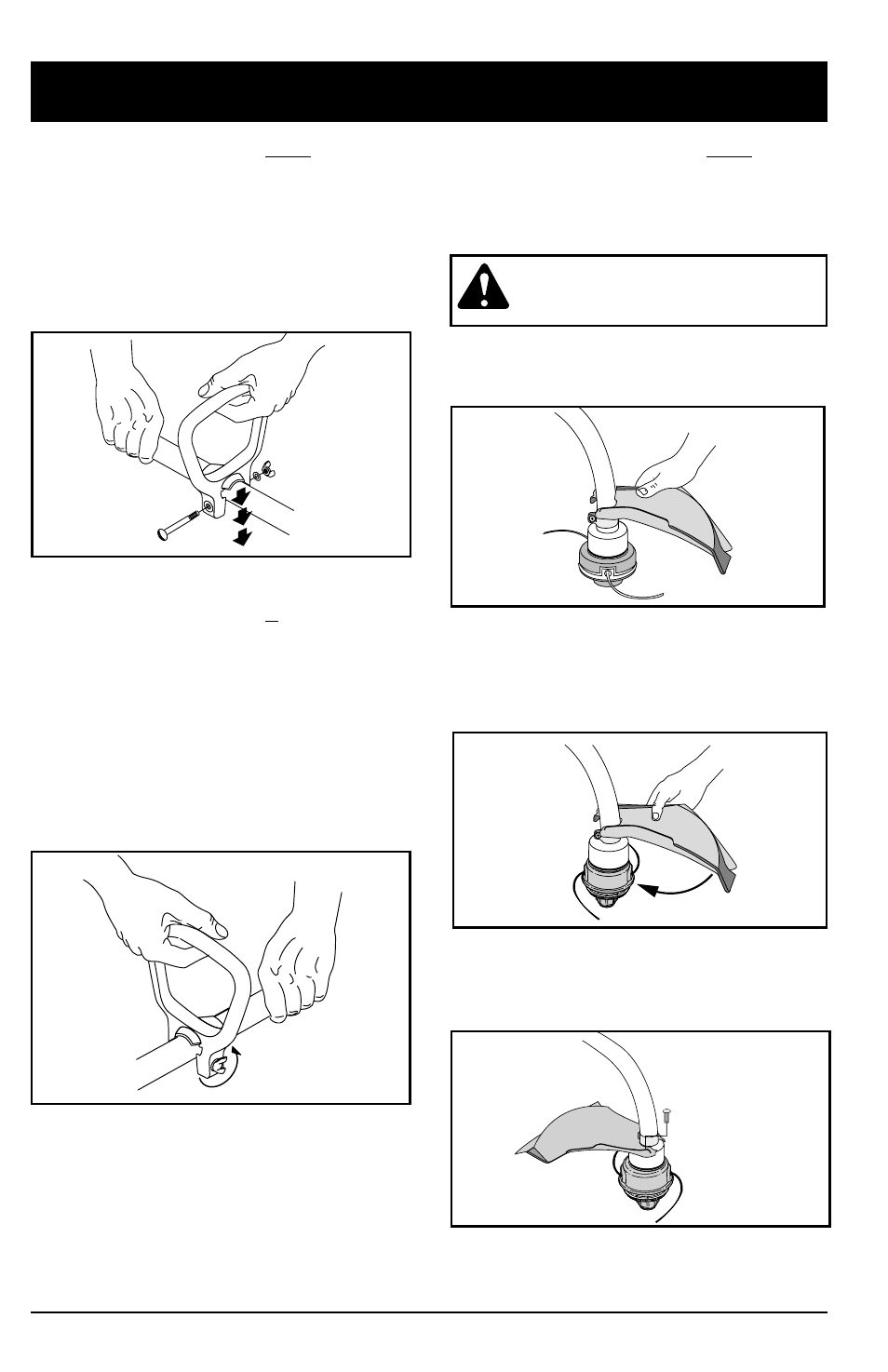

ASSEMBLY INSTRUCTIONS
If the D-Handle on your unit is not
assembled, use the following instructions.
INSTALLING THE D-HANDLE
1. Push the D-Handle down over the boom
(Fig. 1).
2. Install the bolt, washer, and wing nut, and
tighten (Fig. 2).
Fig. 1
Fig. 2
If the D-Handle on your unit is assembled,
use the following instructions.
ADJUSTING THE D-HANDLE
1. Loosen the wing nut. It is not necessary to
remove the wing nut, washer and bolt.
2. Rotate the D-Handle 180º (top of the boom)
to the correct operating position.
3. Position the D-Handle as desired and tighten
the wing nut (Fig. 2).
If the string guard on your unit is not
installed, use the following instructions.
INSTALLING THE STRING GUARD -
MODELS 105r AND 132r
WARNING: To avoid serious personal
injury, never operate the trimmer
without the string guard in place.
Fig. 3
1. Place the string guard onto the boom above
the clamp assembly (Fig. 3).
2. Push the string guard down to the top of the
string head assembly and then rotate the
string guard to the proper position (Fig. 4).
Fig. 4
3. Install the screws with a Phillips screwdriver
(Fig. 5).
Fig. 5
