4 SATA RAID5 ARRAY MANAGER
4.1 OVERVIEW
The SATARAID5 Array Manager is the Graphical User Interfaces (GUI) which allows you to

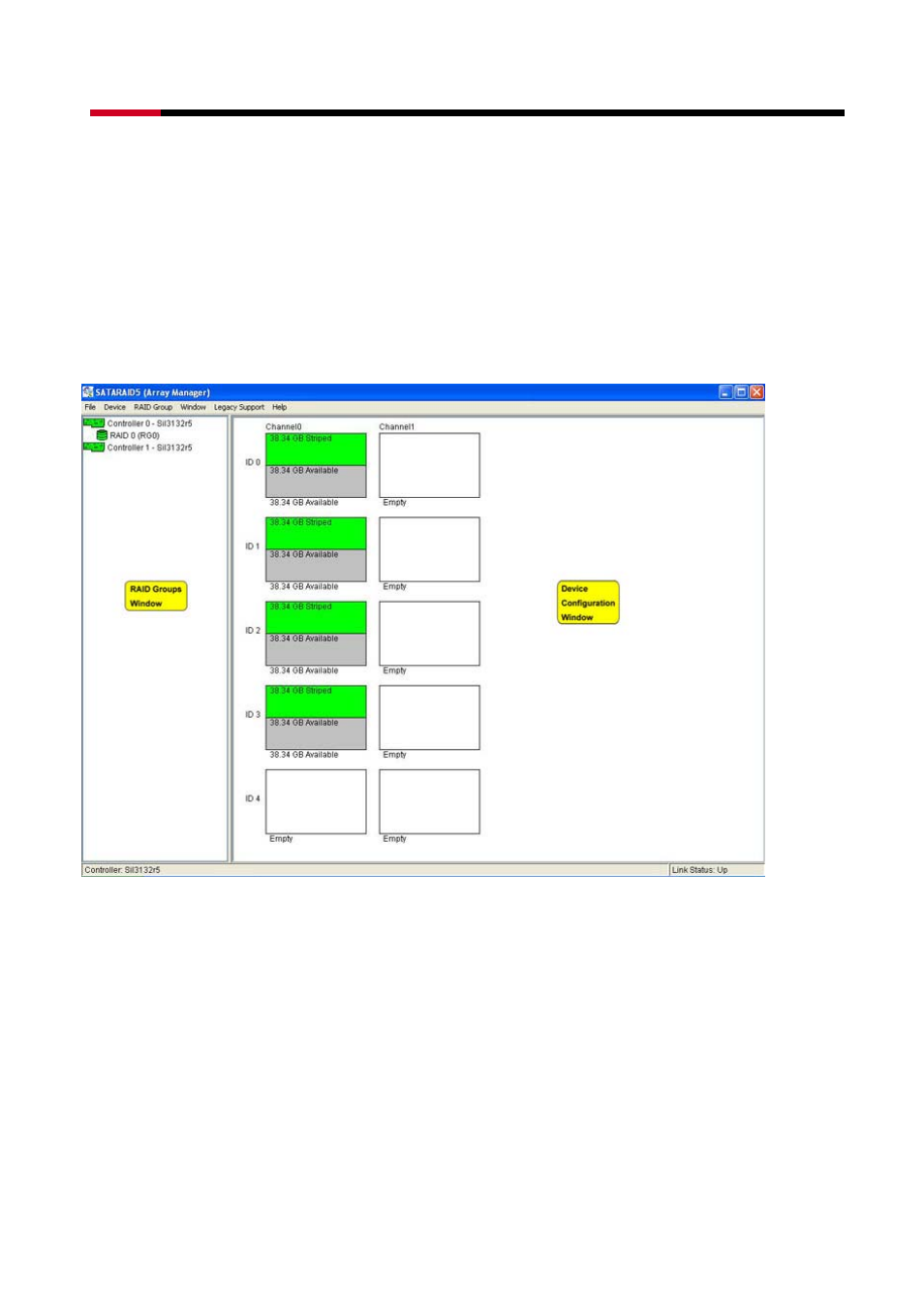

create and manage RAID volumes. The Manager initially shows two windows as seen below.
The RAID Groups window identifies SATA host adapters and configured RAID groups. For
systems with more than one Silicon Image Host Bus Adapter installed, you can switch
between cards by selecting the desired card in the RAID Groups Window.
When a controller is selected, the RAID Groups currently defined on that controller are also
shown in the RAID Groups Window. Selecting a specific RAID Group will highlight the
segments associated with that volume in the Device Configuration Window.
The Device Configuration window identifies all physical drives and their partitions.
