4 Bay SATA to eSATA 3.5” HDD RAID Storage System RSV-S4-X User Manual
100
RAID group. When a member of a RAID group fails in a severe manner (such as a loss of
power or a complete hard disk failure), it becomes an orphan.

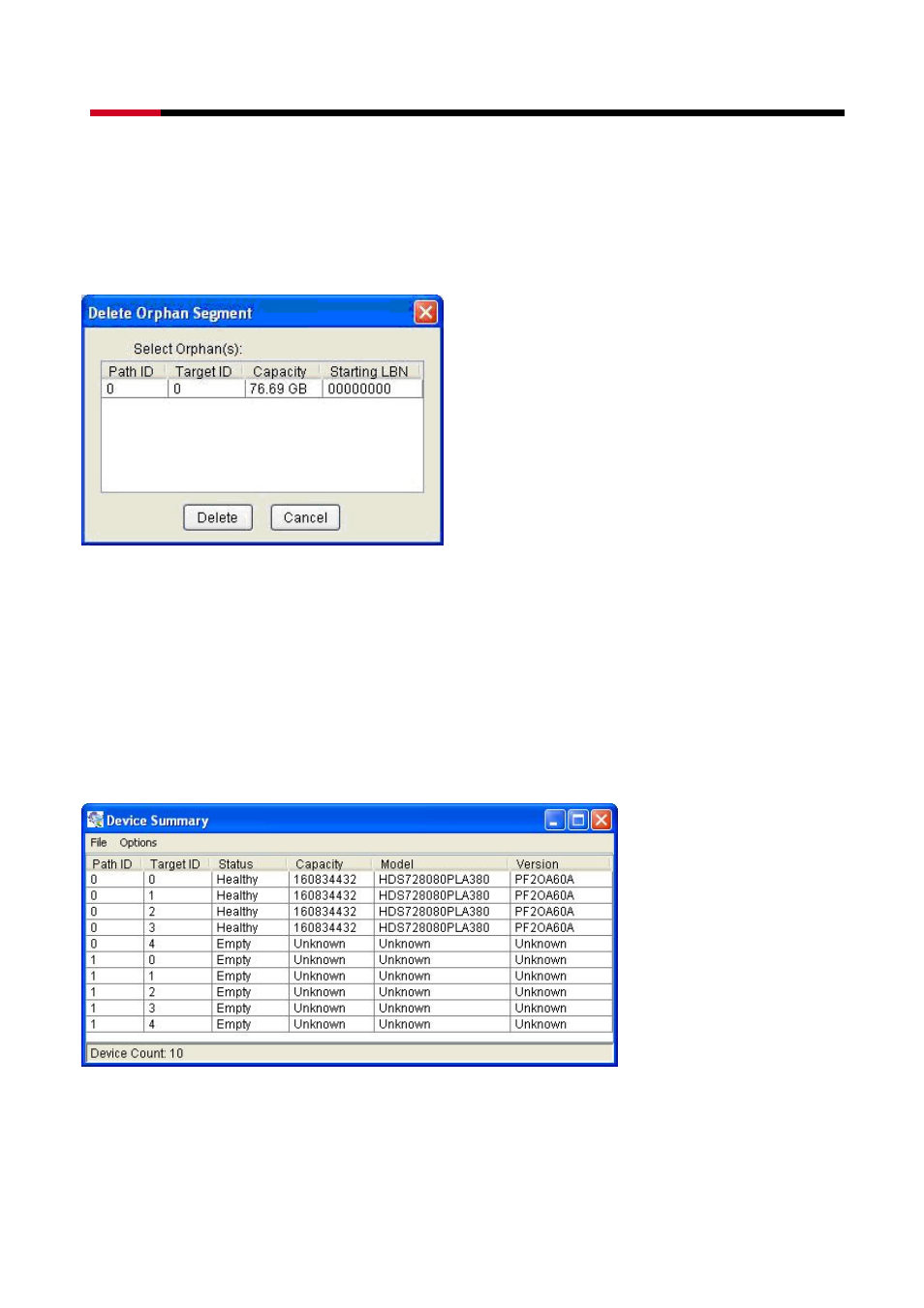

This command displays the Delete Orphan Segment window to show all orphan segments
and allow user to delete selected orphan segments.
4.3.7 MAKE PASS-THRU
This menu option is not available in this product.
4.3.8 DEVICE SUMMARY
This command displays the Segment Summary window to show all physical devices’
segments.
The Segment Summary window has its own menu bar. All options available via the menu bar
are shown below
