OPERATION
2408 01/11
Operation Section 4-3
© 2011 Alamo Group Inc.
OPERA
T
ION
1.
Standard Equipment and Specifications
Specifications will vary with tire size, hydraulic system and bucket used. Specifications are given for a loader
equipped with a 48” bucket, external hydraulic system of 7 GPM with engine operating at 2500 RPM and relief
setting of 2000 PSI.
Horsepower Range
15-35 HP
System pressure/flow rate
2000 PSI/ 7 GPM
Lift Capacity to maximum height
1350 lbs.
Breakout force at pivot pin
2700 lbs.
Rollback force at ground line
1775 lbs.
Total weight with bucket (approx.)
773 lbs.
Raising time to full height
4.7 seconds
Lower time
3.1 seconds
Attachment dump time
2.7 seconds
Attachment rollback time
2.5 seconds
Hydraulic system flow
7 GPM
System pressure at rated flow
2000 PSI

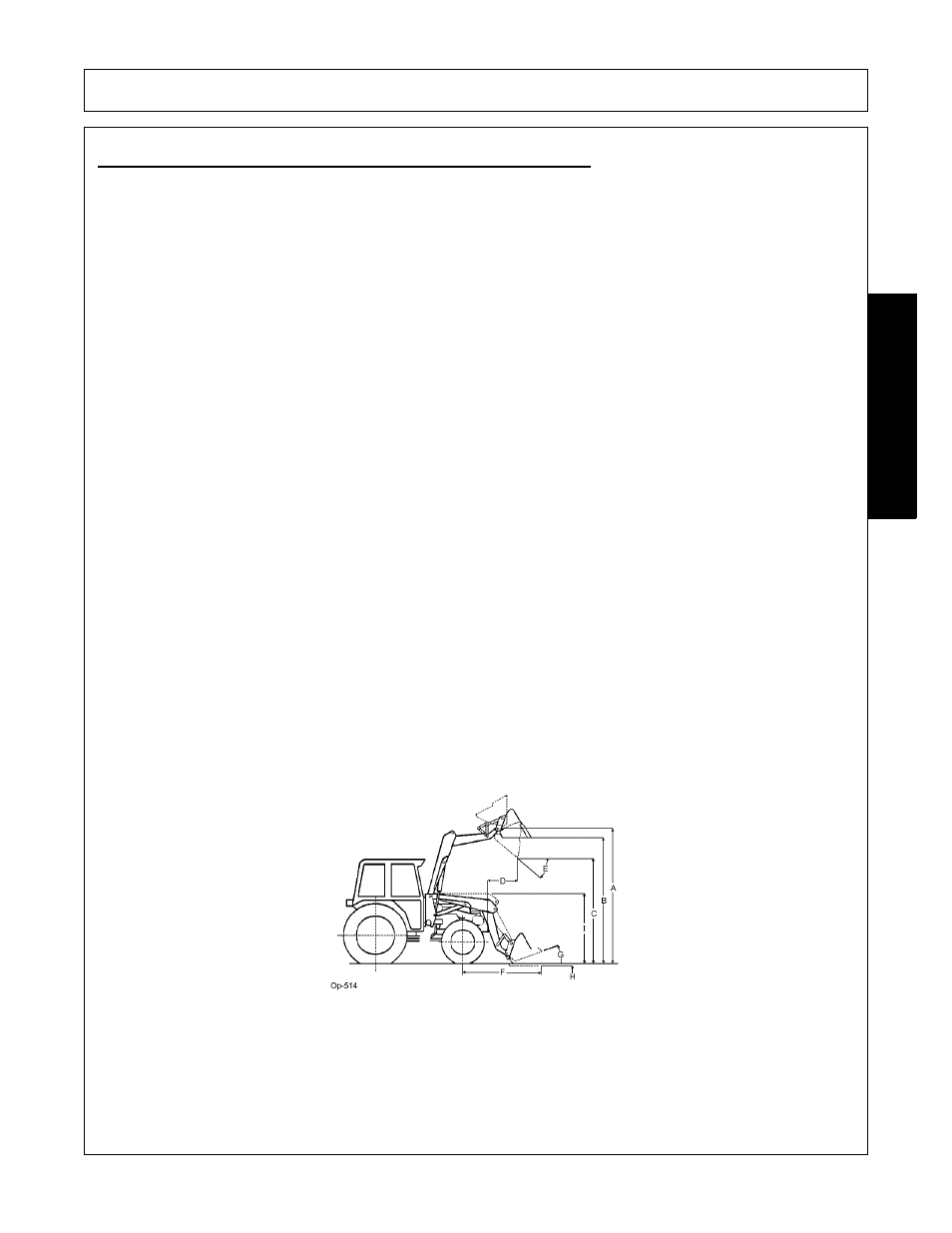

(A)
Maximum Lift Height at Pivot Pin
98”
(B)
Maximum Height Under Bucket
91”
(C)
Clearance with Bucket Dumped
76”
(D)
Reach at Maximum Height
25”
(E)
Maximum Dump Angle
46°
(F)
Reach with Attachment on Ground
62”
(G)
Attachment Rollback Angle
17°
(H)
Digging Depth
4”
(I)
Overall Height in Carry Position
51” @ top of upright
(Manufacturers estimated specifications and design subject to change without notice.)
