Chapter 3: Installation 19
Connecting the instrument
Introduction
The ST60 Rudder Angle Indicator instrument can be connected:
• To the transducer as a stand-alone instrument.
• To SeaTalk.
Instruments connected to SeaTalk derive their power directly from SeaTalk and no
separate power connection is necessary. Where a SeaTalk system includes an
autopilot, the power for the system is provided by the autopilot.
A range of Raymarine SeaTalk extension cables is available to connect separated
instruments. These cables are supplied with a SeaTalk connector fitted to each
end. A junction box can be used to join cables.
Signal connections

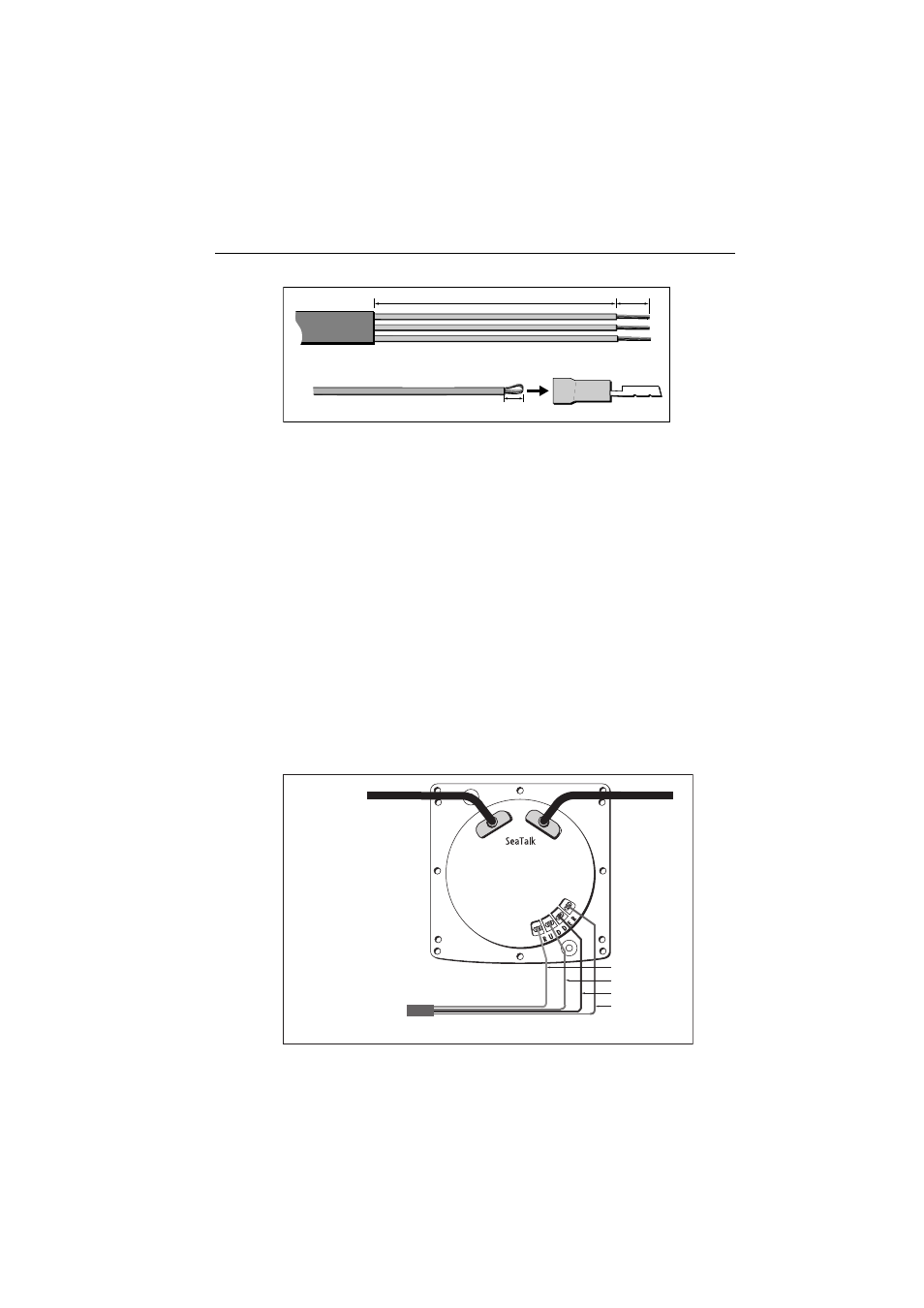

Make the necessary connections to your ST60 instrument (see the Connections to
ST60 Rudder Angle Indicator instrument illustration).
3 mm
6 mm 50 mm
(a)
(b)
D4467-6
D4430-2
Cable from transducer
Connections to ST60 Rudder Angle Indicator instrument
SeaTalk cable SeaTalk cable
Screen
Green
Blue
Red
Note:
If the ST60 Rudder Angle
Indicator pointer moves in
the wrong direction with
respect to the rudder
movement, swap the Red
and Green connections.
This may be necessary if
the Rudder Reference
Transducer is fitted in a
non-standard manner.
