Chapter 3: Installation
11

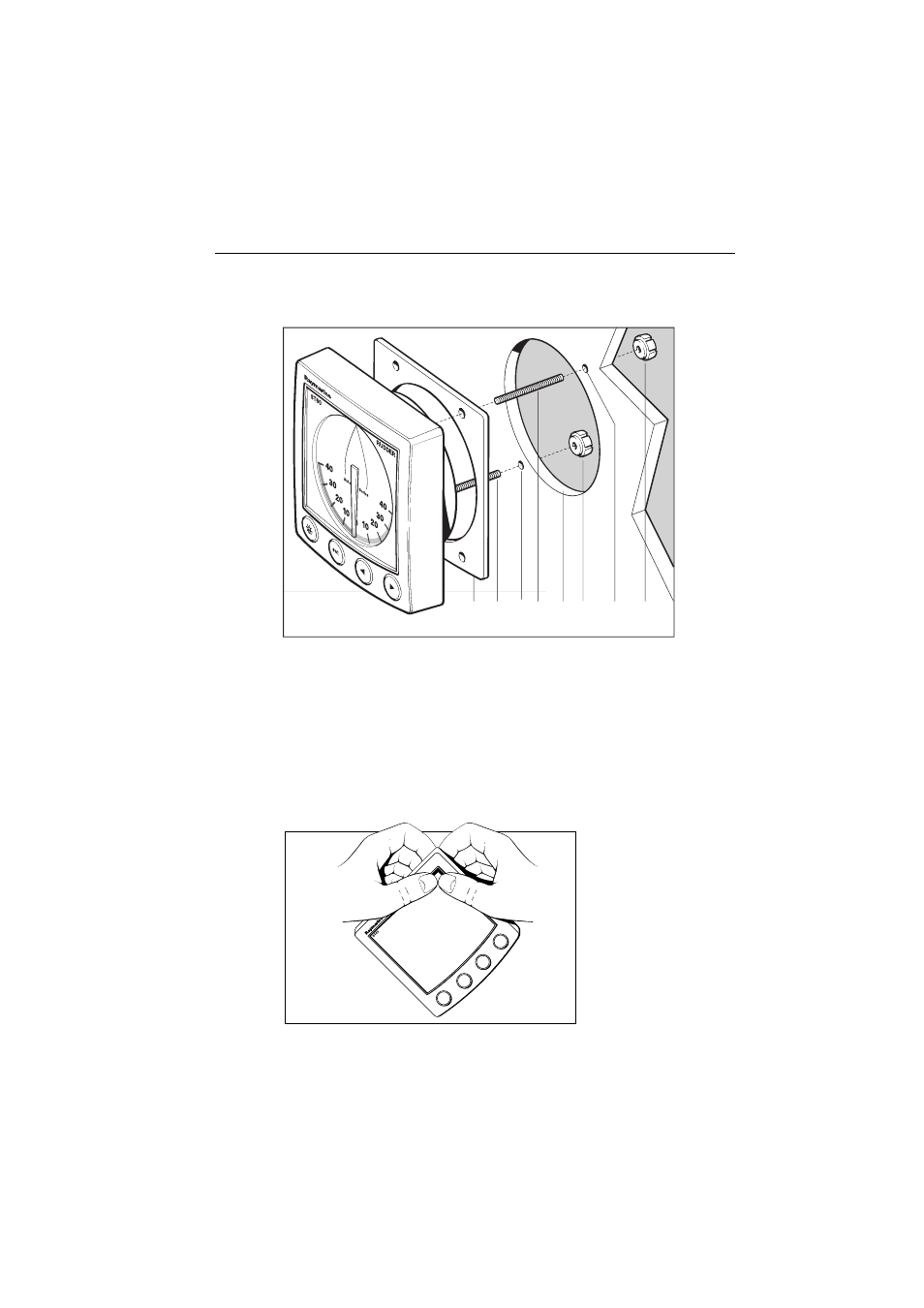

7. Mount the assembled instrument, studs, bezel and gasket into the panel.
Secure from behind with the thumb nuts (5).
Flush mounting
The Flush Mounting Kit uses a low-profile bezel to reduce the fitted profile of the
instrument to approximately 0.25 in (6 mm) above the panel fascia.
Fitting the low-profile bezel
In order to flush-mount your ST60 instrument, replace the standard bezel with the
low-profile bezel as follows:
1. Hold the instrument in both hands with the display towards you.
D4331-2
Surface mounting
4
1
2
1
3
5
2
5
D4537-2
