Rosewill RCX-Z4 - Manual (Page 6)

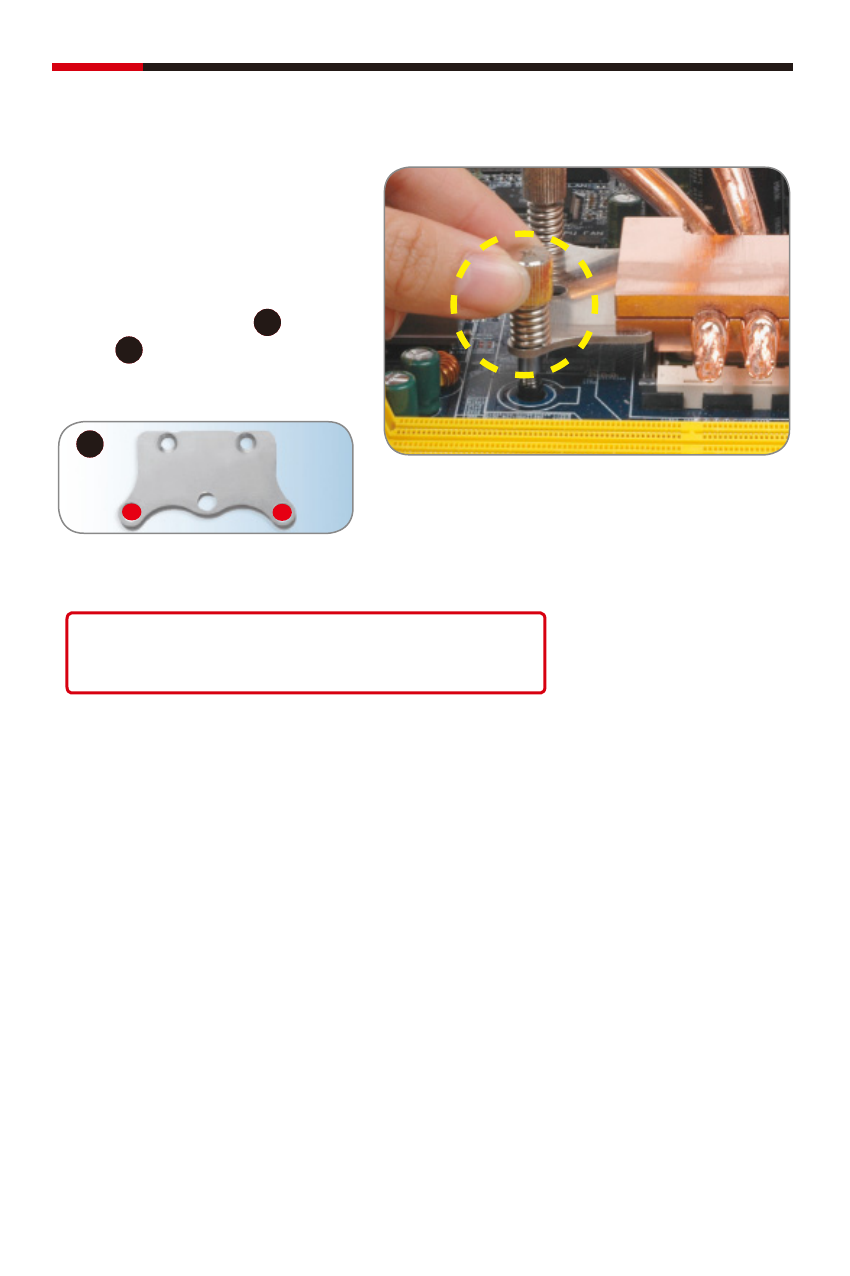

Place the RCX-Z4 on the top of the
CPU, align two holes ( shown in
red as the picture below ) of
heatsink retention bracket with the
Motherboard holes.
Using the K8 screws with
spring inserted, screwing down
into the motherboard backplate.
See page 10-11 for the backplate fan
controller and fan Installation
5
user manual COOLER RCX-Z4
FOR AMD-AM2
The RCX-Z4 is now installed on your K8-AM2 CPU
