4.4 Inserting an MCU into the Programming Adapter
As shown in Figure 4.3, insert the No. 1 pin of the MCU into the No. 1 pin of the IC socket on the
main unit.
Be careful when inserting the MCU because incorrect insertion can cause fatal
damage to the MCU.

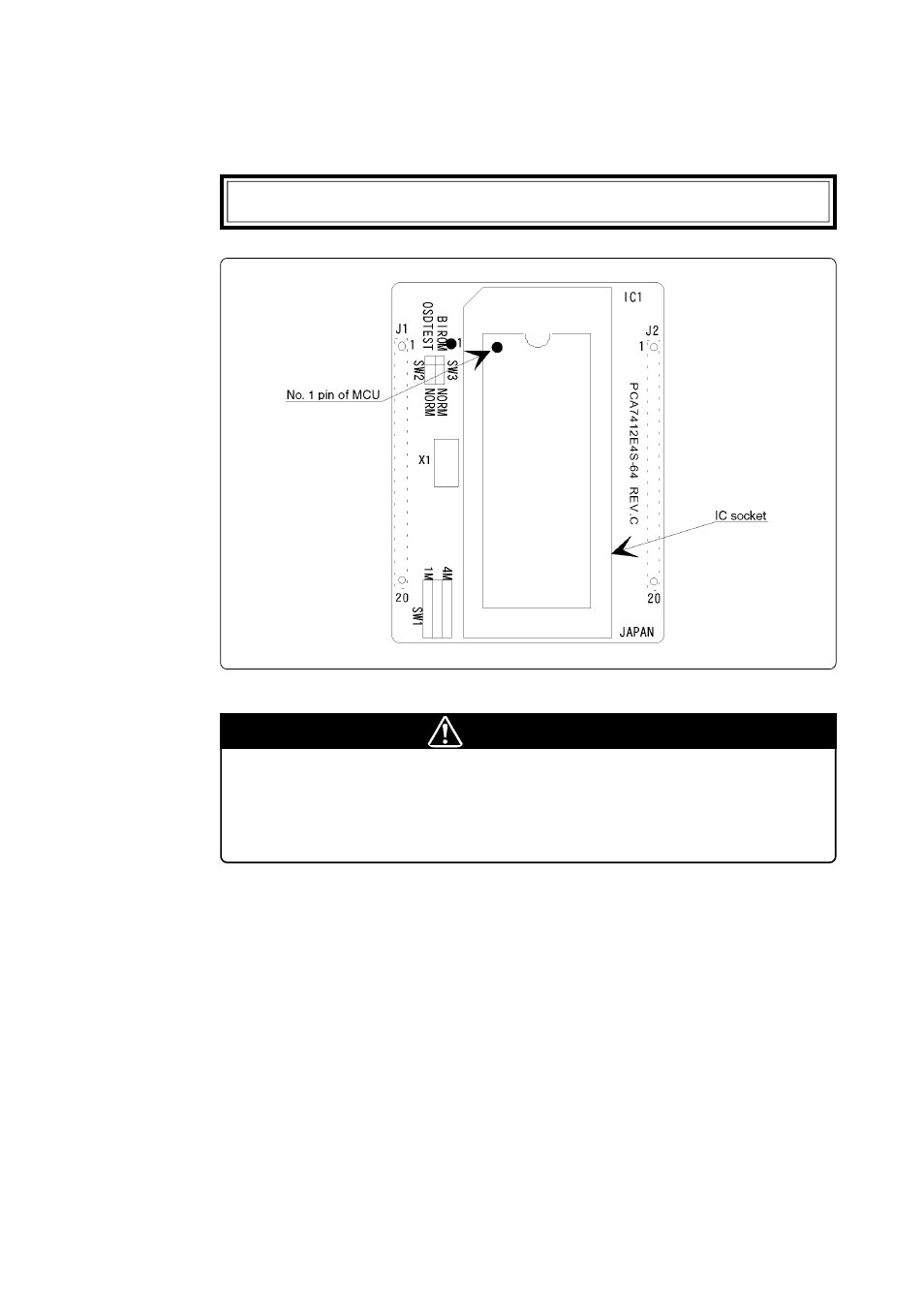

Figure 4.3 Inserting MCU
CAUTION
When Inserting an MCU:
• When inserting and pulling out the MCU, be sure to keep the IC socket side above
and horizontal.
4.5 Precautions When Handling the Adapter
Do not directly touch the connector in the IC socket and the pins on the PROM programmer
connector, otherwise dirt may cause an electrical insulation failure.
When not using this product, attach the connector pins of this product to the conductive sponge as
it was shipped from the factory.
Top view
