12

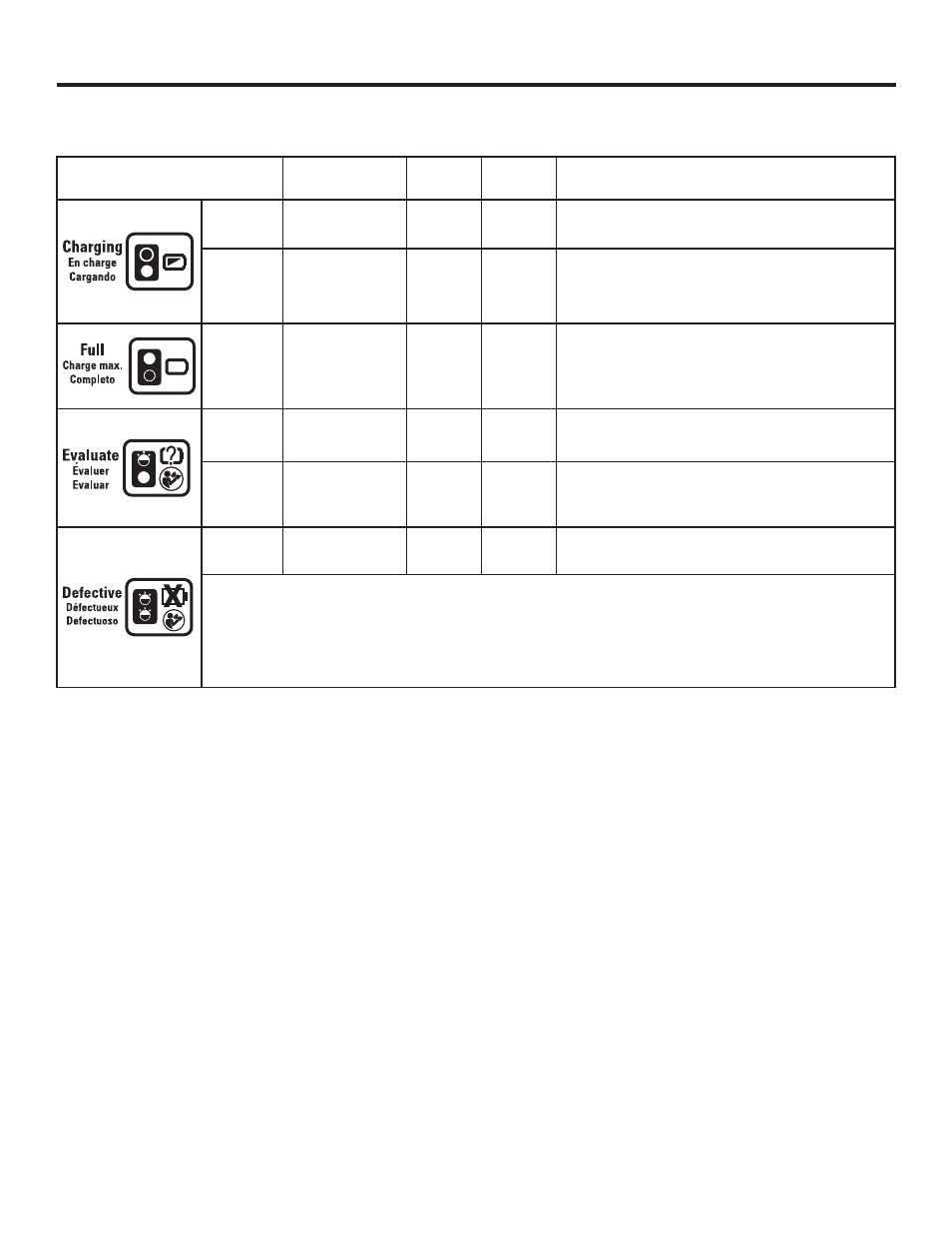

LED FUNCTION OF RIDGID 24V LITHIUM-ION CHARGER

See Figure 4.

OPERATION

LED

INDICATOR

BATTERY

PACK

RED

LED

GREEN

LED

ACTION

Charging

Fast charging

ON

OFF

Charges in 1 hour.

Charging

Deeply
Discharged

ON

OFF

Charger pre-charges battery until normal voltage
is reached, then begins fast charge mode. May
take longer than 1 hour to fully charge.

Full

Maintenance
charging

OFF

ON

Fast charging is complete;
Charger maintains charge mode.

Evaluate

Hot battery
pack

Flashing OFF

When battery pack reaches cooled temperature,
charger begins fast charge mode.

Evaluate

Cold battery
pack

Flashing OFF

When battery pack reaches warmed temperature,

charger begins fast charge mode.

Defective Defective

Flashing Flashing Battery pack or charger is defective.

• If defective, try to repeat the conditions a second time by removing and reinstalling the battery

pack. If the LED status repeats a second time, try charging a different battery.

• If a different battery charges normally, dispose of the defective pack (see Maintenance section).
• If a different battery also indicates “Defective,” the charger may be defective.
