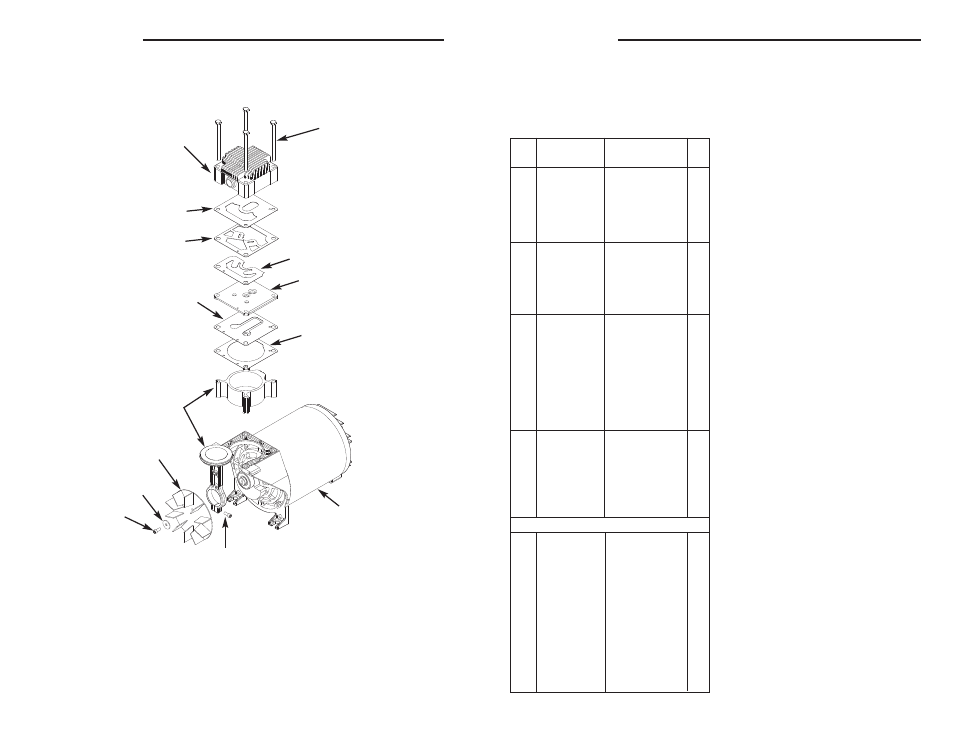

Repair Parts
21
Repair Parts
20
For Repair Parts, Call 1-800-4-RIDGID
Please provide following information:
-Model number
-Serial number (if any)
-Part description and number as shown in parts list
Key Part
No Number Descriptons Qty
1 WL010500AV Head 1
2 ● Head bolts 4
3 ▲ Exhaust valve 1
4 ▲ Valve plate 1
5 XA012100AV ▲ Cylinder gasket 1
6 MC302300AJ Motor assembly
(includes
eccentric/
bearing
assembly) 1
7 (Included with M5 x .8 x 20
piston HH cap screw 1
assembly, Ref.
No. 11)
8 ■ M5 x .8 x 12
HHCS (L.H.) 1
9 ■ Washer 1
10 ■ Fan 1
11 WL210300AJ Piston assembly
(includes. #7) 1
12 ▲ Intake valve 1
13 XA010800AV ▲ Head gasket 1
14 XA012001AV ▲ Discharge valve
gasket 1
REPAIR PARTS KITS
● WL602801AJ Head bolt kit
(set of 4) 1
▲ WL201405AJ Valve plate kit
(Includes #2-5,
12-14) 1
■ WL209802AJ Fan kit
(includes #8-10) 1
13
1
3
4
12
5
11
7
6
10
9
8
2
14
