Windows
36
A.Config Utility
In order to use this config utility, follow the steps:

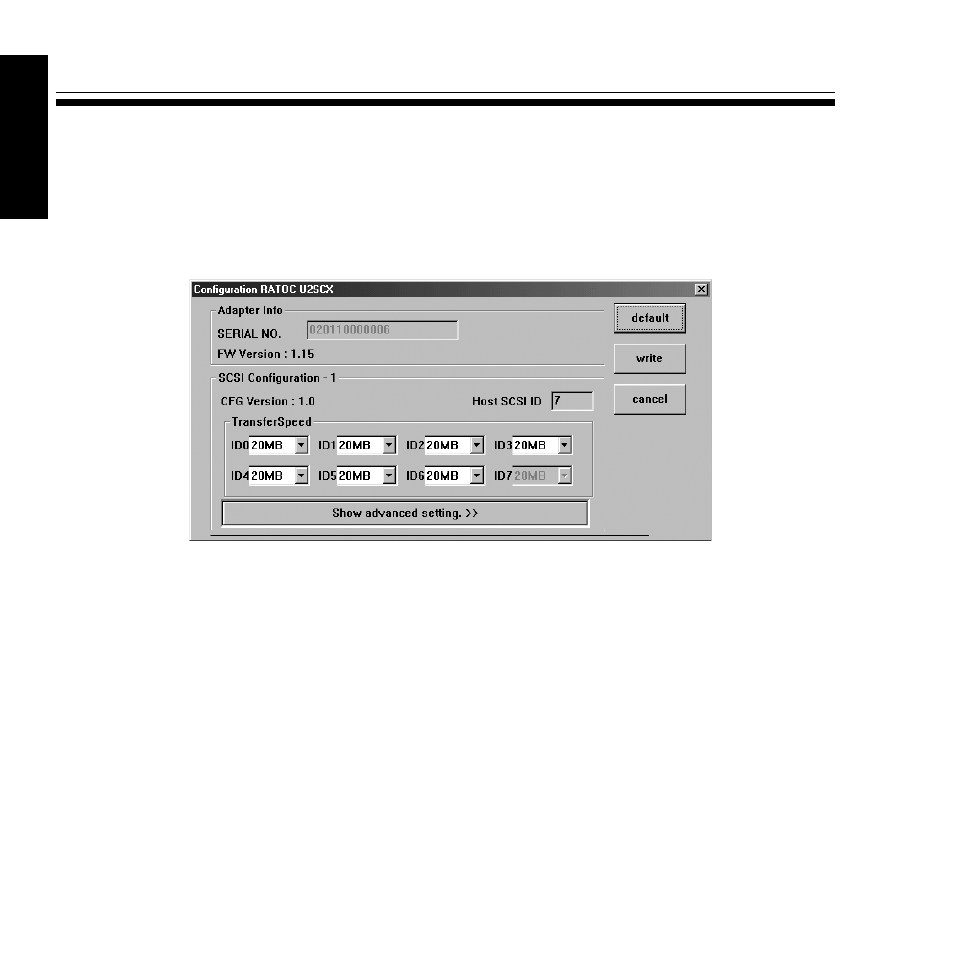

1)The following window will appear after you have clicked the [Config
Utility] button. Refer to the next page for the details on each setting.
2)After you have done your settings, click the [write] button.
The message saying configuration has completed will appear. Click the
[cancel] button to go back to the main menu and click the [EXIT] menu.
3)Remove the U2SCXU from the PC as described in Chapter 2-7 and then
restart the PC. After the PC finished starting, reconnect the U2SCXU for
your changes to take effect.
