Installing Your Telephone
8
On a Wall Plate

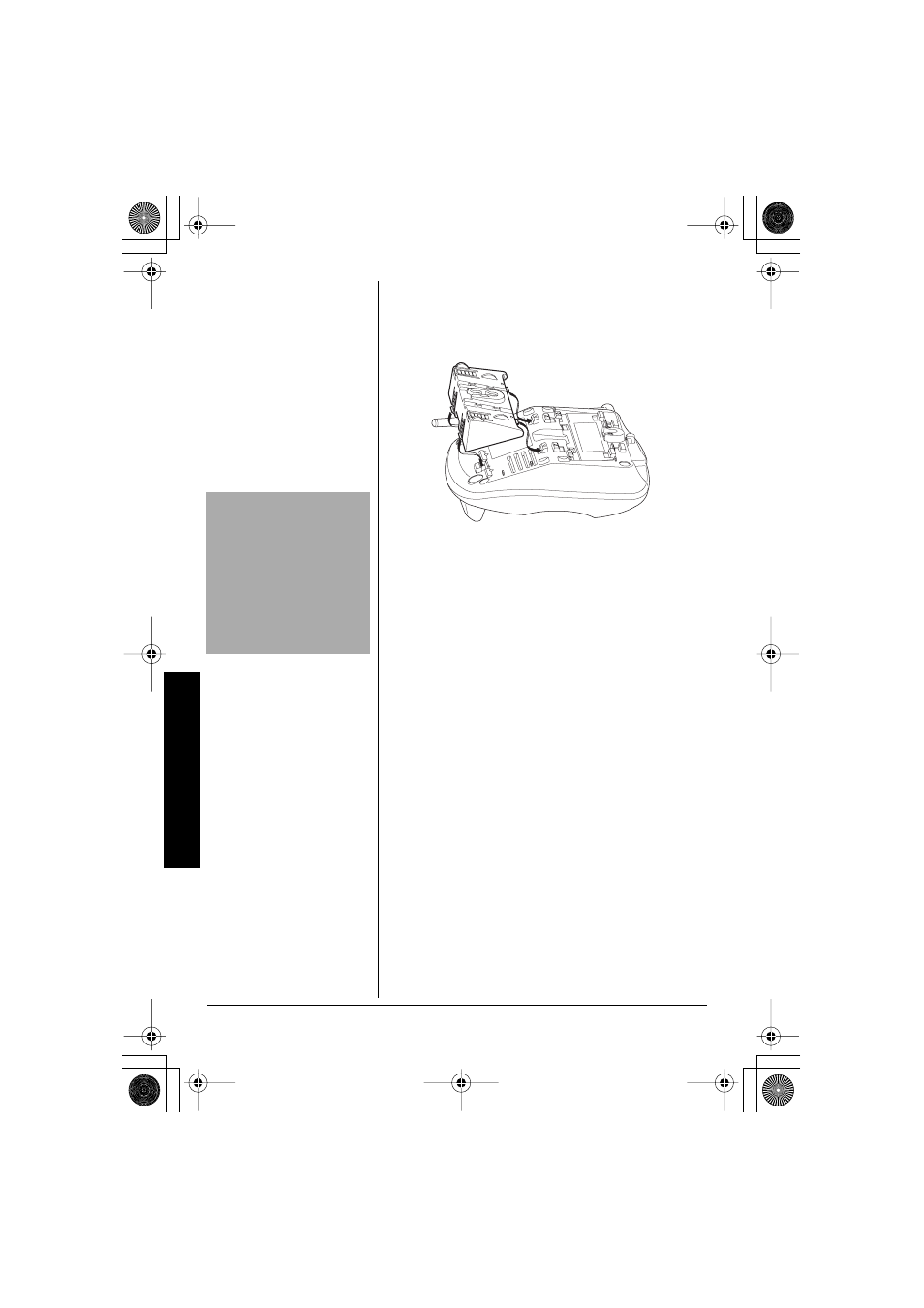

1. Insert the bracket's tabs into the base's lower
tab slots. Then, press down on the bracket's
clips and insert them into the clip slots.
2. Plug one end of the supplied short modular
cord into the TEL LINE jack on the back of the
base.
3. Insert the supplied AC adapter's barrel plug
into the DC IN 9V jack. " " " "
4. Route the adapter and modular cords through
the grooves on the bottom of the base.
5. Plug the modular cord into the wall plate jack.
Then align the base's keyhole slots with the
wall plate studs and slide the base down to
secure it.
6. Plug the adapter into a standard AC outlet.
7. Push up on the handset holder. Then lift and
remove it. Turn it over and rotate it so that the
oval-shaped indention is at the bottom. Then
slide it down into its slot. Snap it back into place
so that it holds the handset.
8. Lift the base’s antenna to a vertical position.
"
CAUTION
"
Always connect the AC
adapter to the phone before
you connect it to AC power.
When you finish,
disconnect the adapter
from AC power before you
disconnect it from the
phone.
