Vac Assembly
1. Line up vacuum port in top assembly
with drain cap located on the front of
the drum.
2. Place lid on top of drum with the han-
dles snug against the drum channel.
3. Be sure lid completely covers the top of
the drum so leakage does not occur.
4. Push down on top of the handles to
cause the flexible locking tabs to hook
onto the drum lip of the channel.
5. Make sure that the locking tabs are
snapped in place to prevent the lid from
coming off. (See inset below)

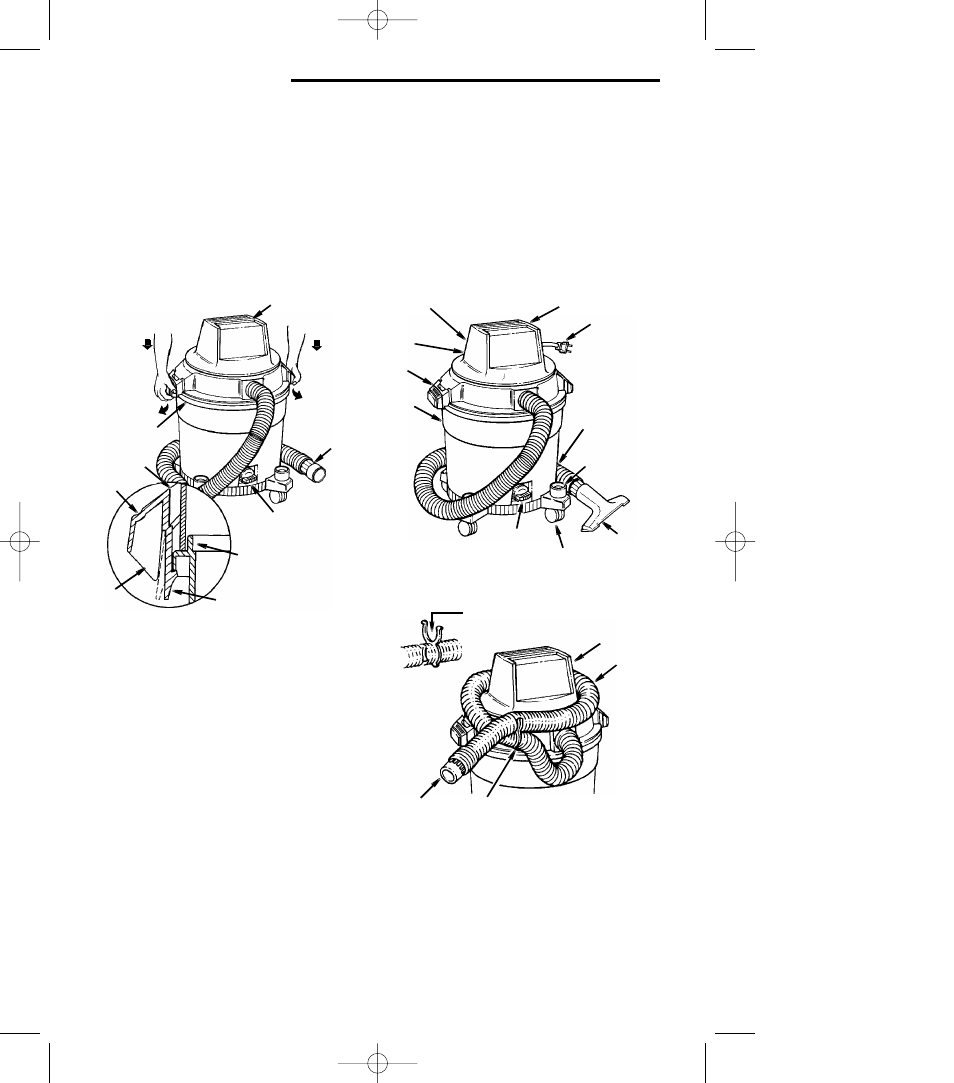

Top Assembly
Push
Down
Pull
Out
Flexible
Locking
Tab
Swivel
End
Drain
Drum
Channel
Lid
Handle
Stop
Tab
Out
Flexible Locking
Tabs
Do Not Force Flexible
Tab Beyond Stop Tab
Drum
Blowing Port
Cord Wrap
Area
Lid
Dust
Drain
Cap
Casters
Utility
Nozzle
Hose
Caster Feet
w/Accessory
Storage
On-Off Switch
Power Cord
Drum
Handle
Hose Storage: Use the hose lock
to clip the ends of the hose together.
You can also connect two hoses together
by purchasing VT2511 (Hose to Hose
connector).
WD1200
Larger
Opening
Power
Head
Hose
Hose Lock Open End
of Hose
